Symptom List

Refer to Symptom diagnostic procedure from the following list in order to diagnose the symptom:

• Diagnostic Starting Point - Rear Axle Controls   see DIAGNOSTIC INFORMATION AND PROCEDURES  under REAR AXLE CONTROLS
• Click Noise In Turns  see AXLE SHAFTS - REAR article.
• Clunk Noise When Accelerating During Turns   see AXLE SHAFTS - REAR article.
• Shudder or Vibration During Acceleration  see AXLE SHAFTS - REAR article.
• All-Wheel Drive (AWD) System Functional Inspection  See ALL-WHEEL DRIVE (AWD) SYSTEM FUNCTIONAL INSPECTION .

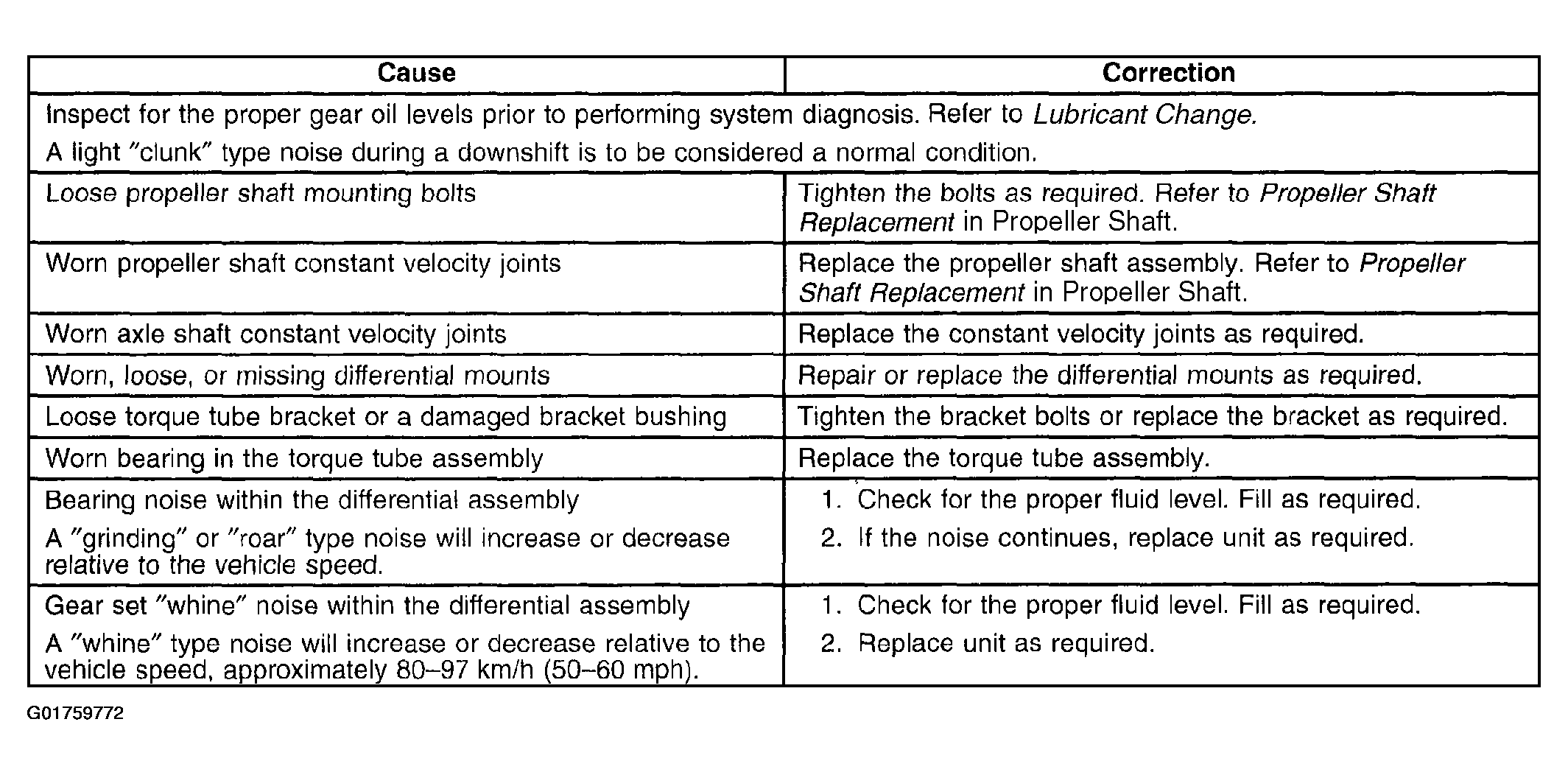

• Noisy in Drive see Figure.
• Noisy When Coasting see Figure.

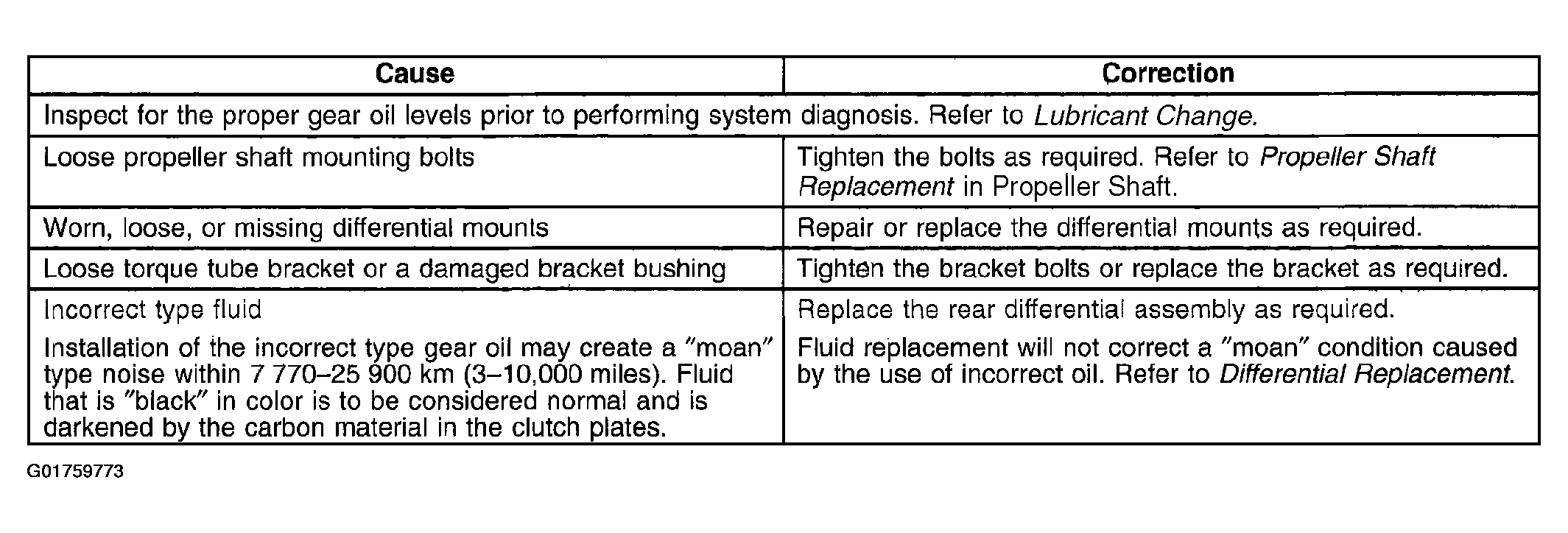

• Intermittent Noise see Figure.

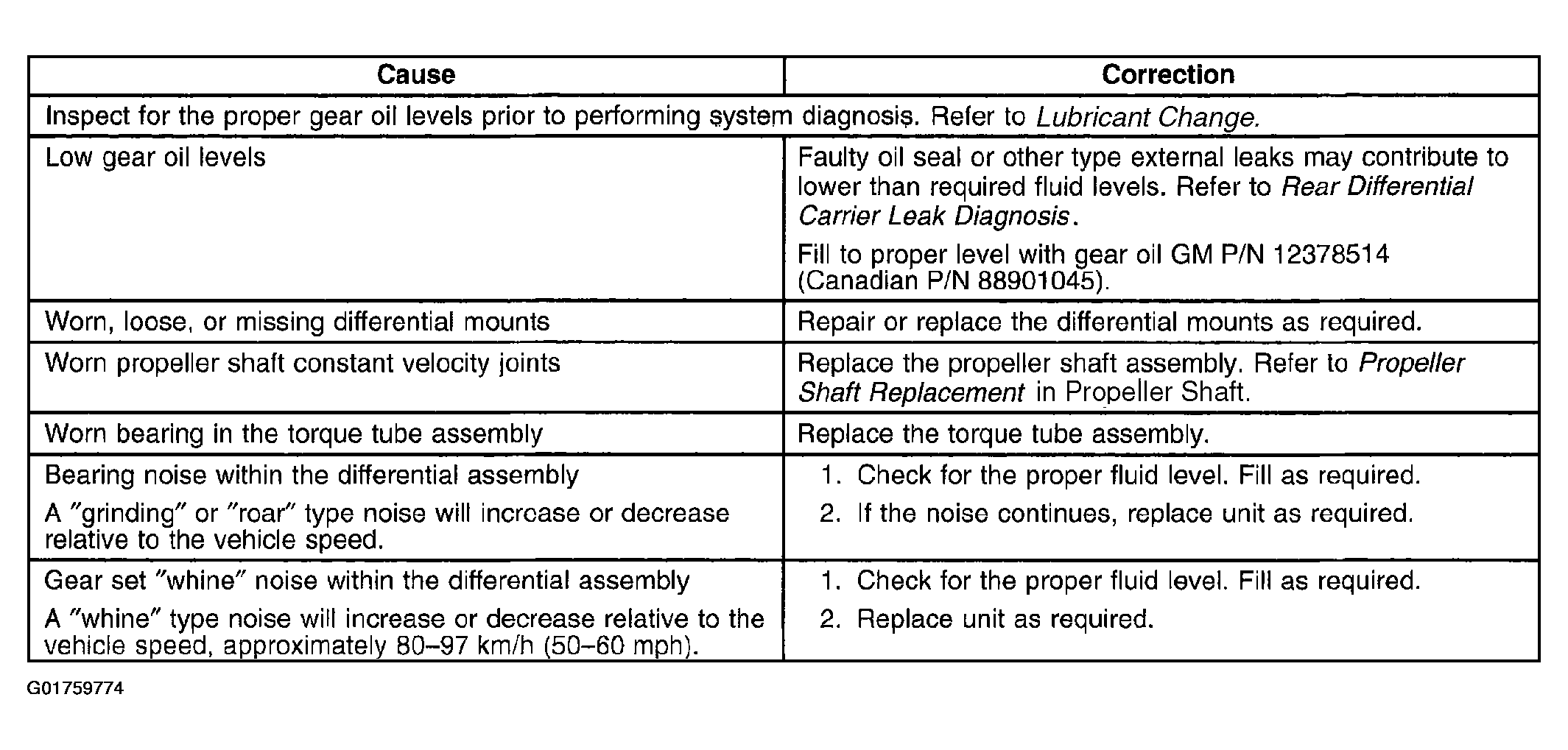

• Constant Noise see Figure.

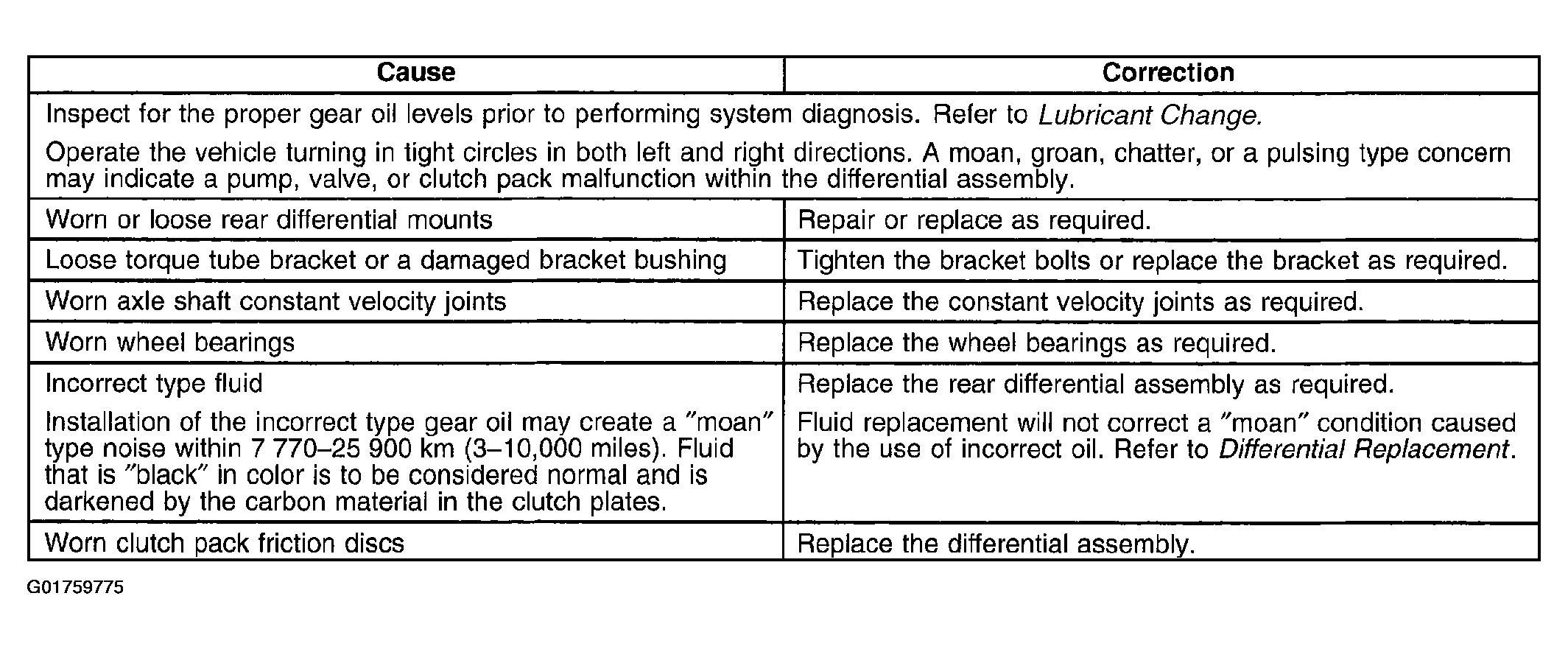

• Noisy on Turns see Figure.
• Rear Differential Carrier Leak Diagnosis see Figure.
