Removal Procedure

Open the endgate.
Remove the screws from the right and left side of the rear bumper fascia at the inboard side of the rear quarter panel, using the J 38778 .

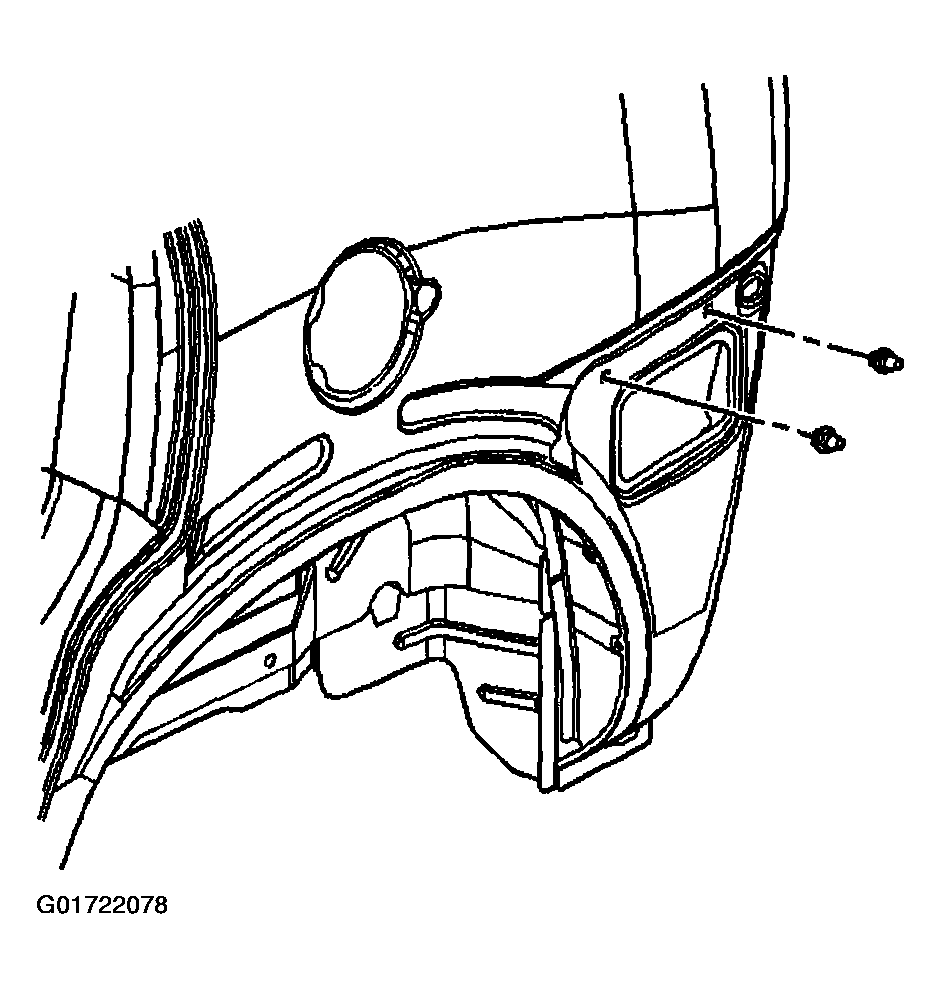

Fig 1: Removing Screws From Rear Bumper Fascia At Rear Quarter Panel Inboard Side
Courtesy of GENERAL MOTORS CORP.
Using J 38778 , remove the push-in retainers from the rear bumper fascia at the rear impact bar.
Using J 38778 , remove the push-in retainers from the rear bumper right and left fascia upper tabs.

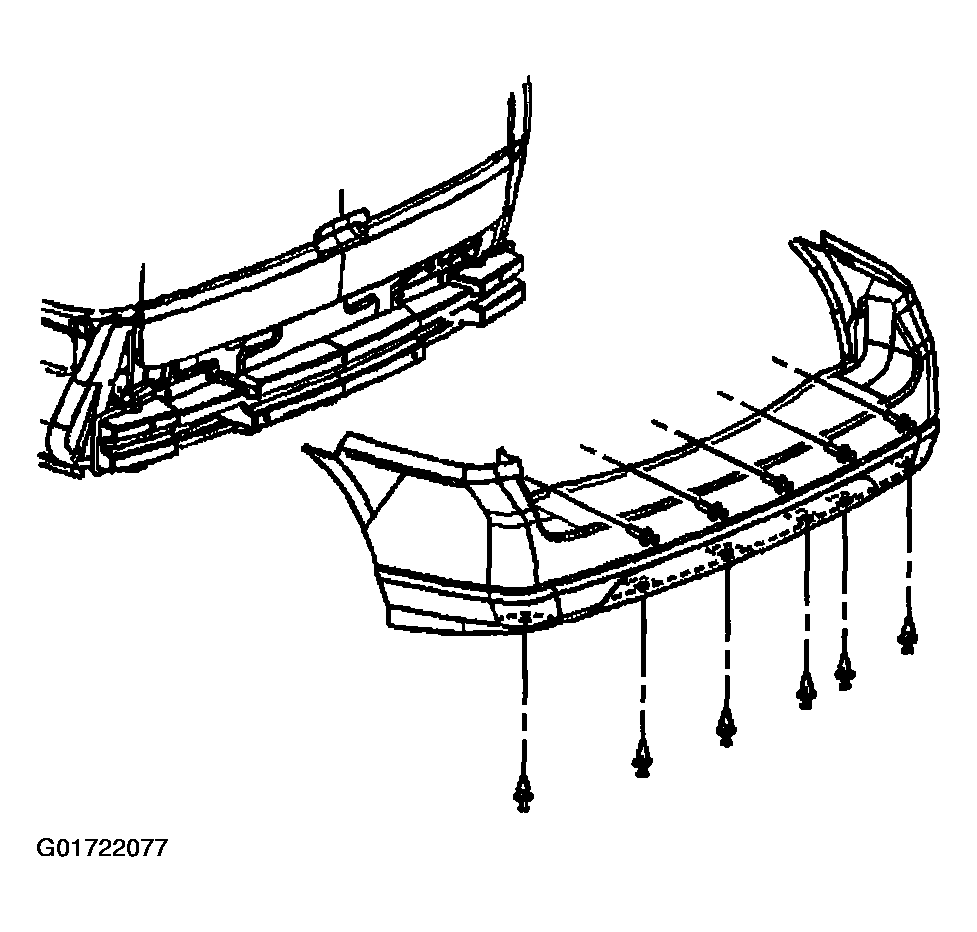

Fig 2: Removing Push-In Retainers From Rear Impact Bar And Fascia Upper Tabs
Courtesy of GENERAL MOTORS CORP.
Disengage the ball stud on each side of the rear bumper fascia.
Partially remove the rear bumper fascia from the vehicle.

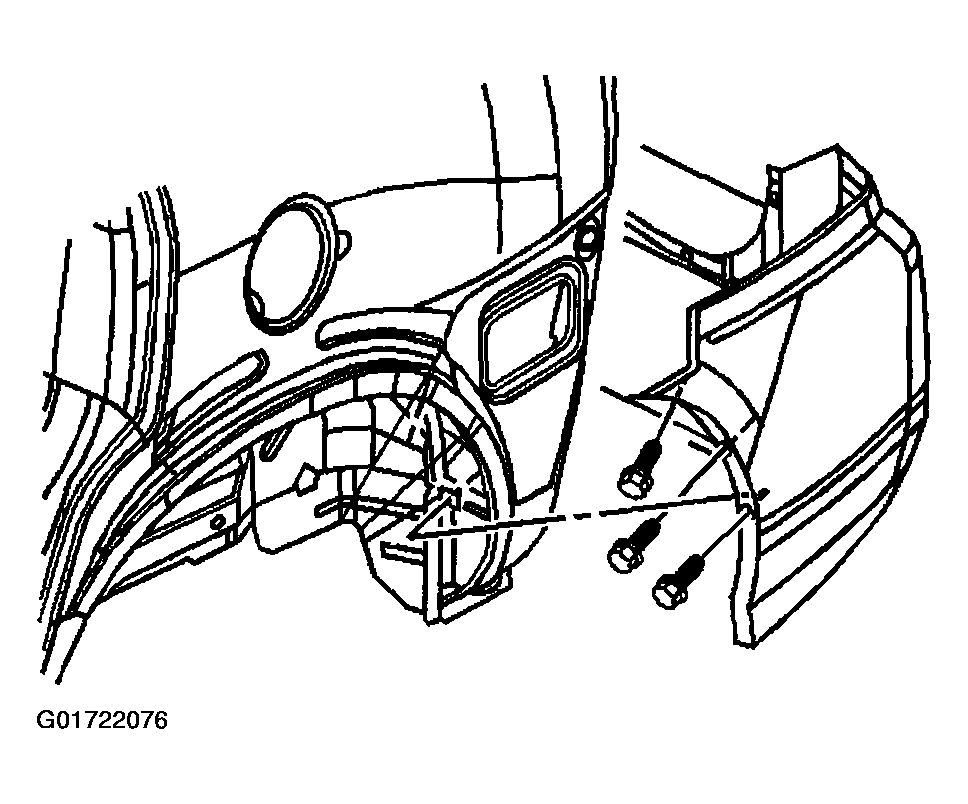

Fig 3: Disengaging Rear Bumper Fascia Ball Stud
Courtesy of GENERAL MOTORS CORP.
Disconnect the rear parking assist electrical connector.
Remove the rear fascia from the vehicle.
Remove the rear parking assist object sensor from the rear bumper fascia. Refer to REAR PARKING ASSIST .
Remove the energy absorber from the rear fascia.

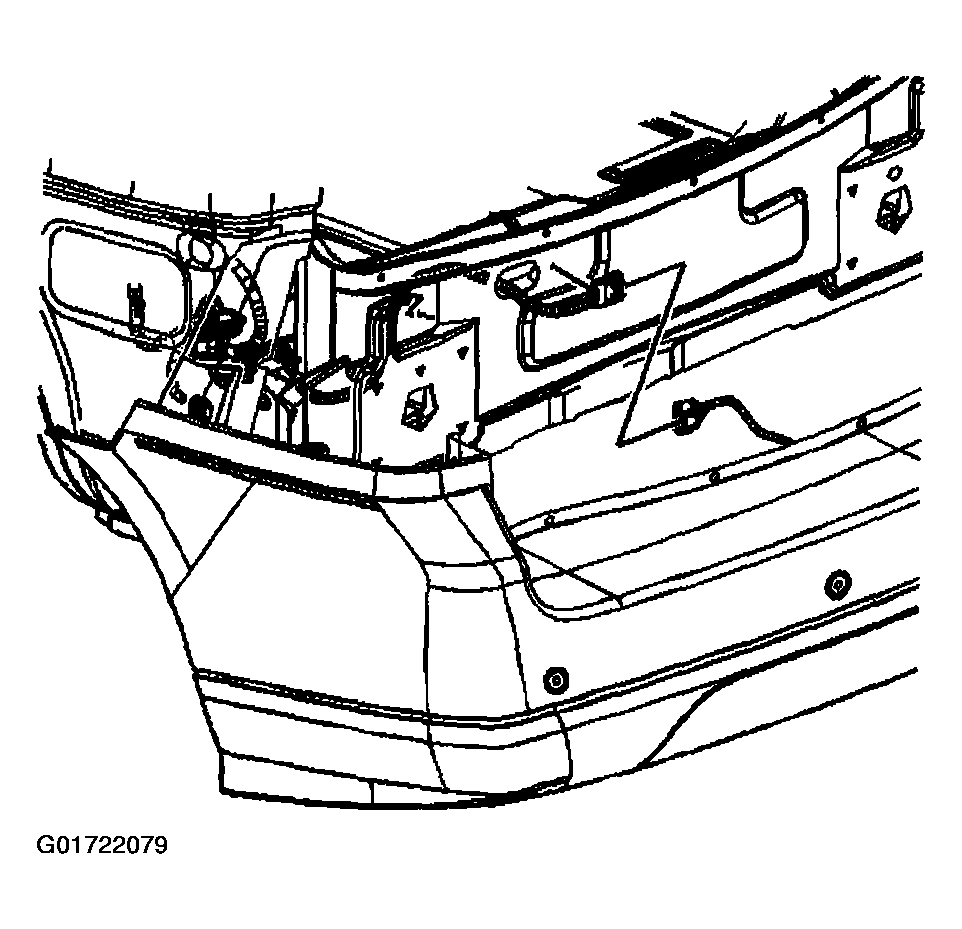

Fig 4: Disconnecting Rear Parking Assist Electrical Connector
Courtesy of GENERAL MOTORS CORP.
