Installation Procedure

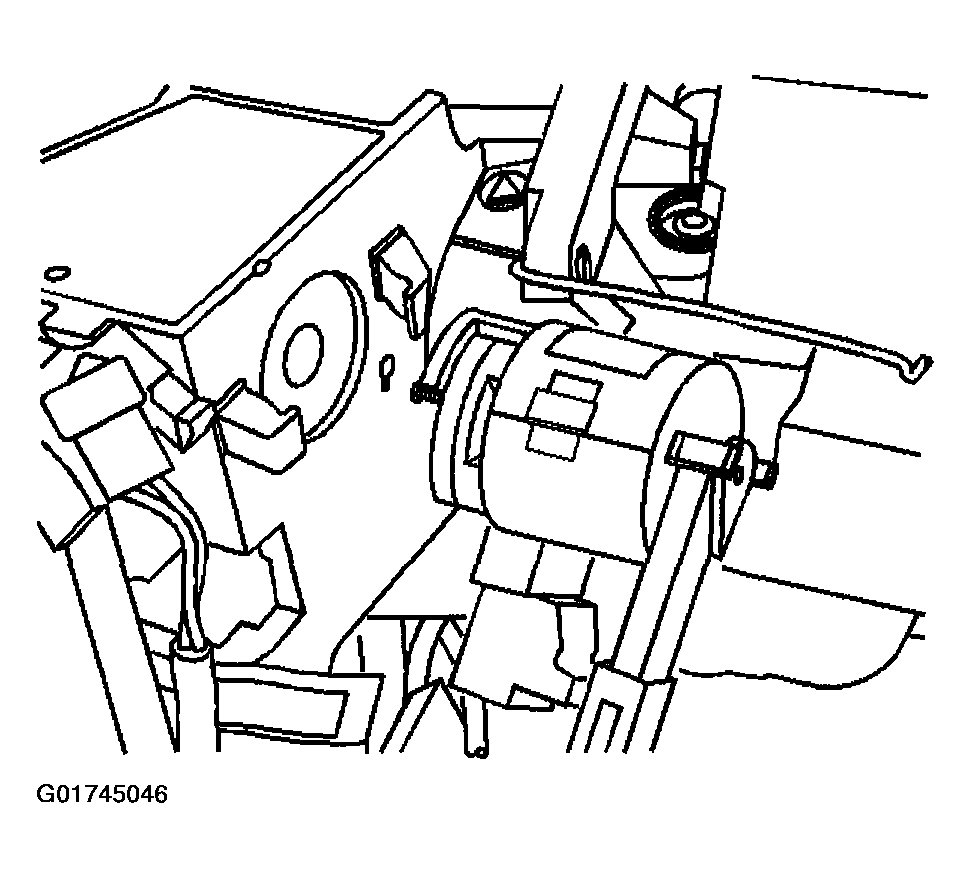

Fig 1: Rotating Park Pawl & Connecting Electrical Connector
G01745046Courtesy of GENERAL MOTORS CORP.
  1. Connect electrical connector.
  2. Rotate park pawl actuator to install.
  3. Install tie straps onto the park pawl actuator harness.
  4. Install steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
