Removal Procedure

  1. Remove the rear bucket seat from the vehicle. Refer to Seat Replacement - Rear Bucket .
  2. Remove the rear screw from the rear seat cushion trim cover.

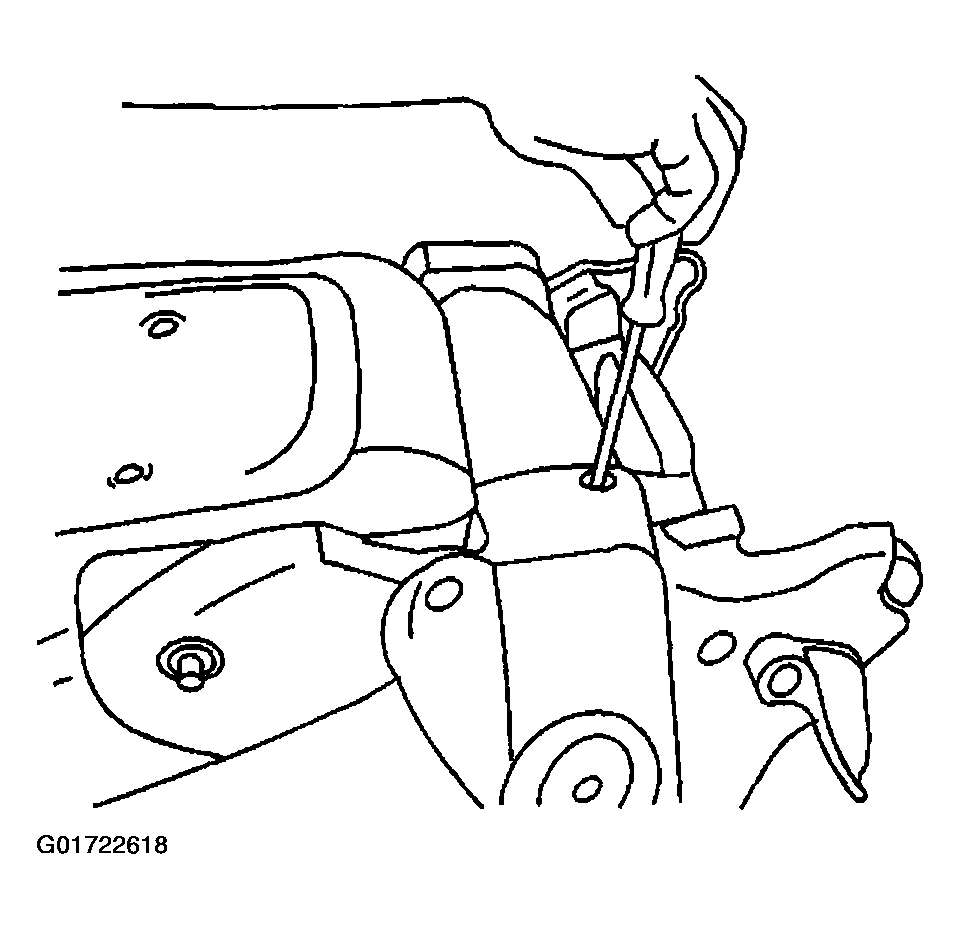

    Fig 1: Removing Rear Seat Cushion Trim Cover Rear Screw
    G01722618Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seat recliner handle.
  4. Remove the rear seat cushion trim cover from the rear seat.

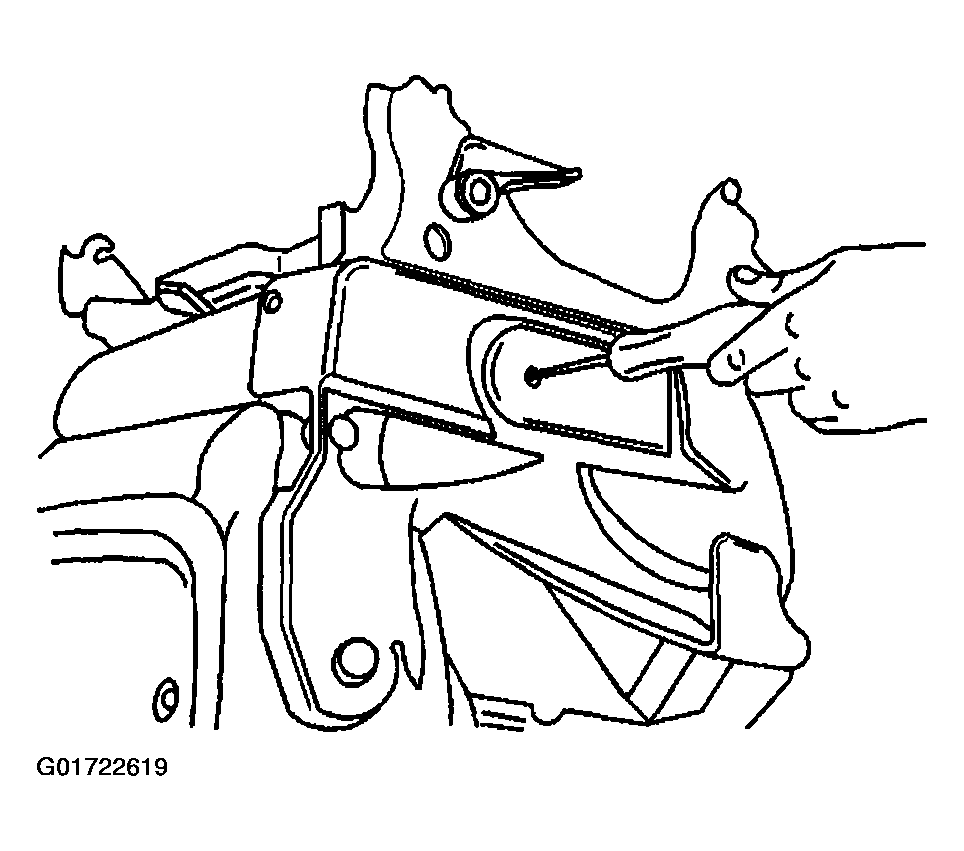

    Fig 2: Removing Rear Seat Recliner Handle
    G01722619Courtesy of GENERAL MOTORS CORP.
