Installation Procedure

  1. Position the rear seat cushion trim cover from the rear seat.
  2. Install the upper retainer clip to the seat frame, pressing into place until fully seated.
    Fig 1: Positioning Rear Seat Cushion Trim Cover
    G01722620Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear screw to the seat cushion trim cover.

    Tighten

    Tighten the rear seat cushion trim cover screw to 2 N.m (18 lb in).

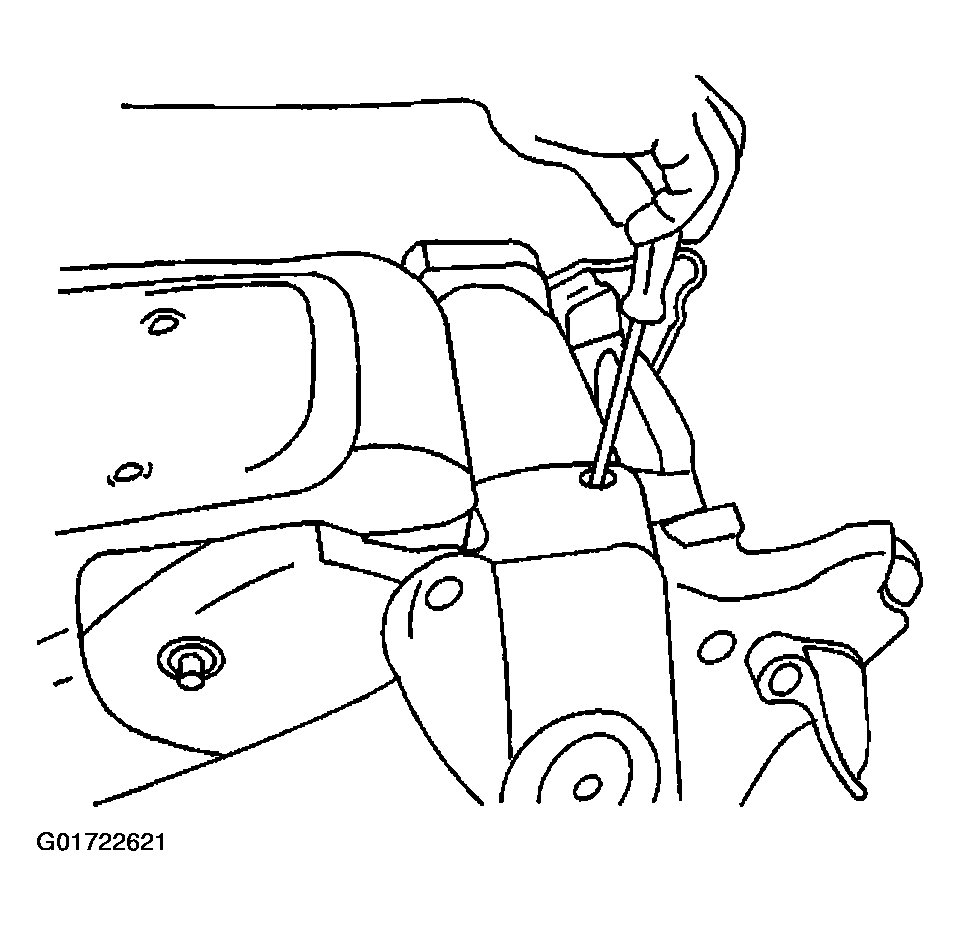

    Fig 2: Installing Seat Cushion Trim Cover Rear Screw
    G01722621Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat recliner handle.
  5. Install the rear bucket seat to the vehicle. Refer to Seat Replacement - Rear Bucket .
    Fig 3: Installing Rear Seat Recliner Handle
    G01722622Courtesy of GENERAL MOTORS CORP.
