Removal Procedure

  1. Rotate the assist handle downward.
  2. Remove the screws from the handle assembly.
  3. Remove the bulb socket assembly from the lamp assembly.
  4. Disconnect the electrical connectors.
  5. Remove the assist handle assembly.

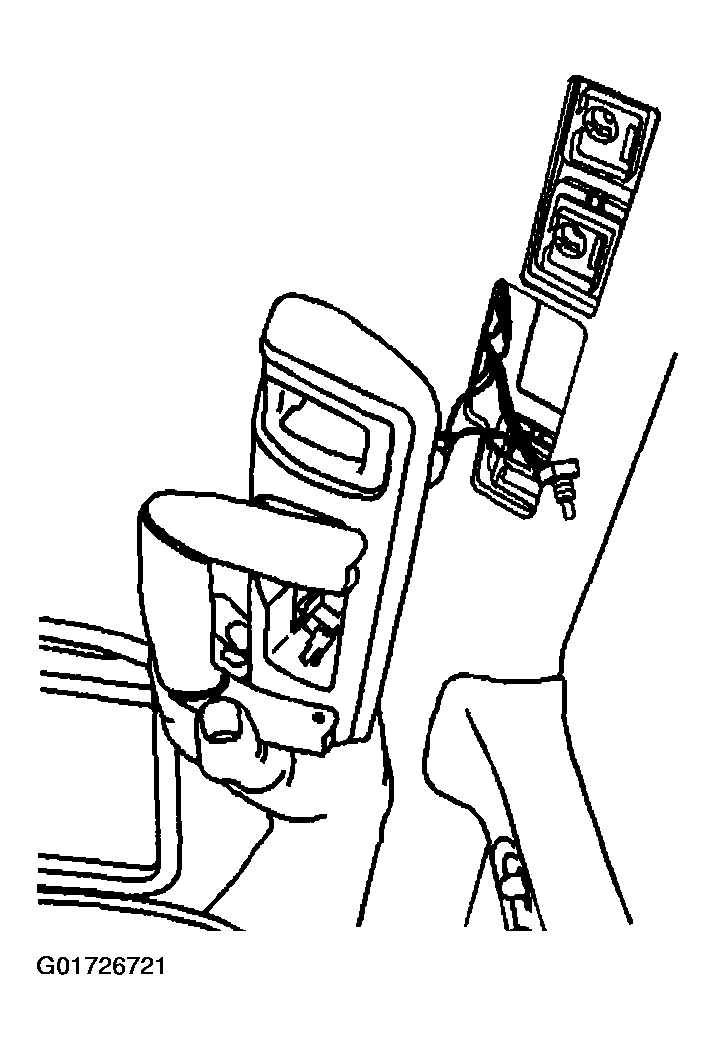

    Fig 1: Removing Assist Handle Assembly
    G01726721Courtesy of GENERAL MOTORS CORP.
