Removal Procedure

  1. Lift the armrest cover and place the cover in the locked position.
  2. Remove the armrest cover screws.
  3. Remove the cup holder liners.
  4. Remove the cup holder screws.
  5. Remove the power accessory liner.
  6. Remove the liner screws.
  7. Disconnect the electrical connectors from the trim plate.
  8. Remove the trim plate assembly.

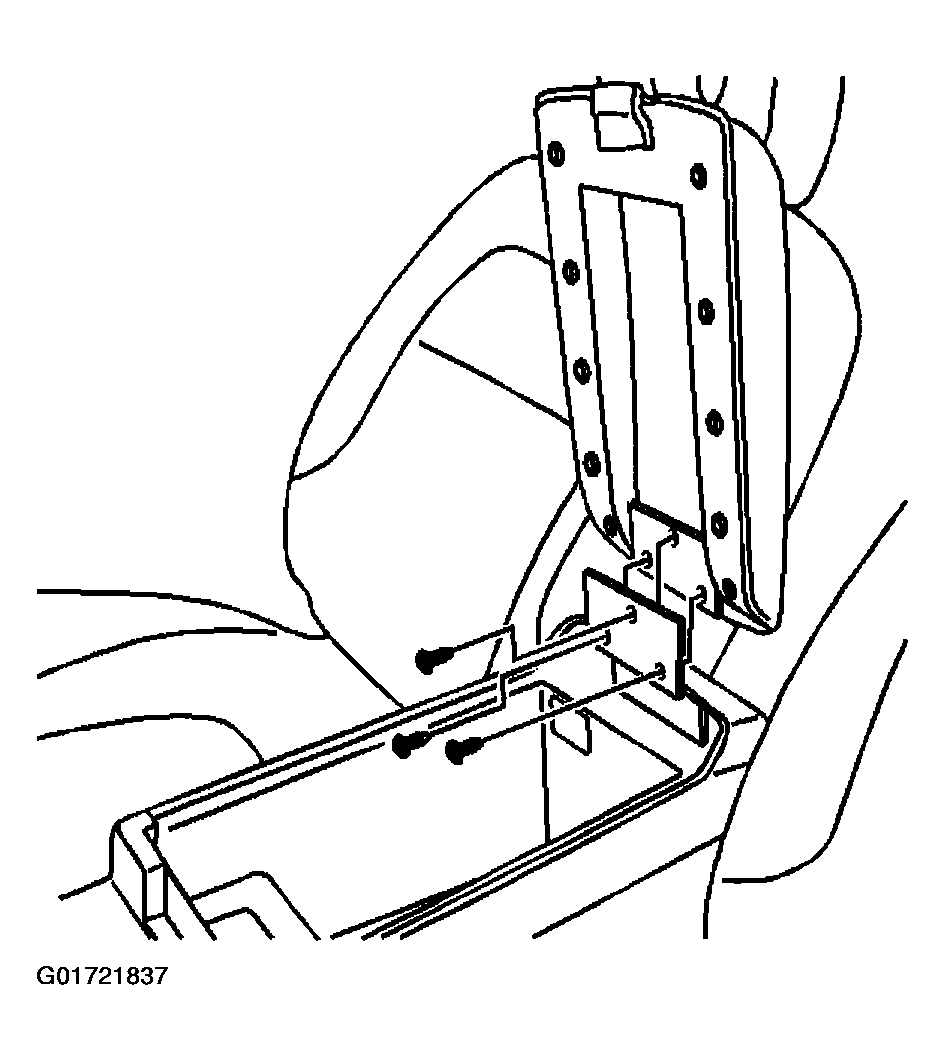

    Fig 1: Removing Armrest And Screws
    G01721837Courtesy of GENERAL MOTORS CORP.
