Removal Procedure

  1. Remove the front floor console trim plate. Refer to Trim Plate Replacement - Front Floor Console (Aztek)  or Trim Plate Replacement - Front Floor Console (Rendezvous) .
  2. Disconnect the electrical connectors.
  3. Remove the nuts from the side of the front floor console.
  4. Remove the nuts from the rear of the front floor console.

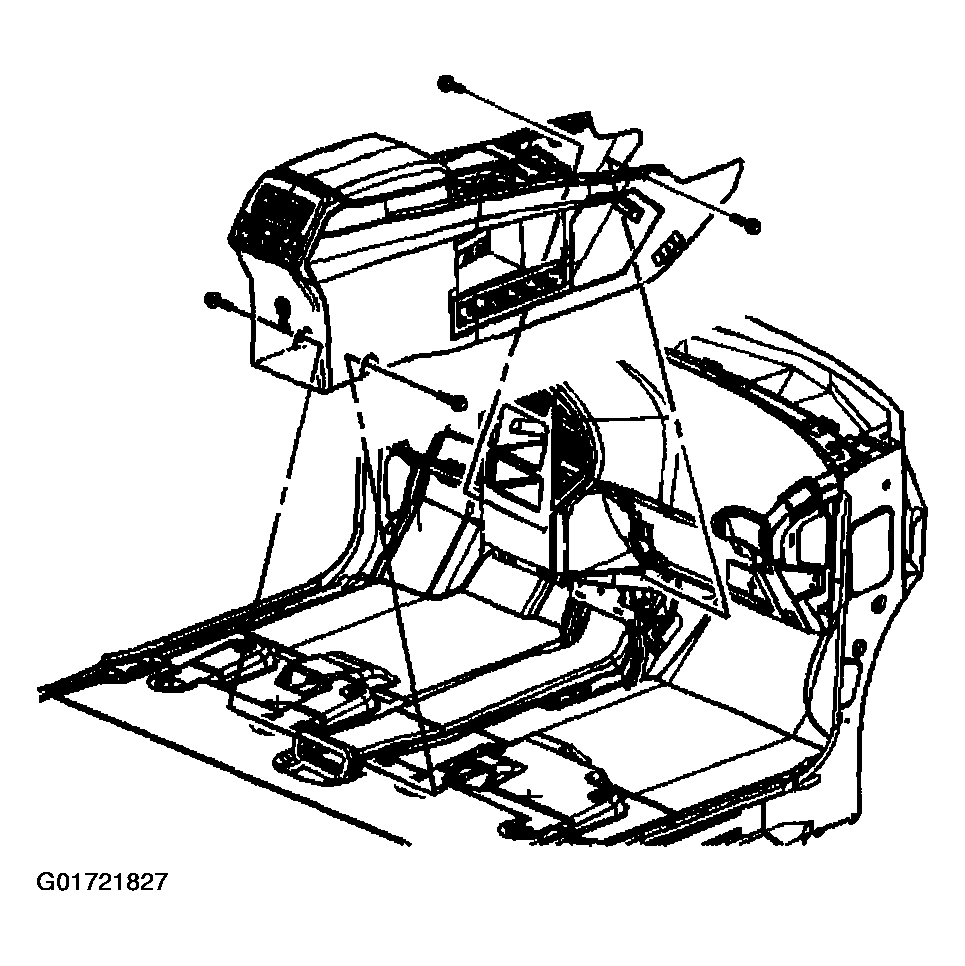

    Fig 1: Removing Side And Rear Of Front Floor Console Nuts
    G01721827Courtesy of GENERAL MOTORS CORP.
  5. Lift straight up on the front floor console and pull back in order to remove the console from the vehicle.

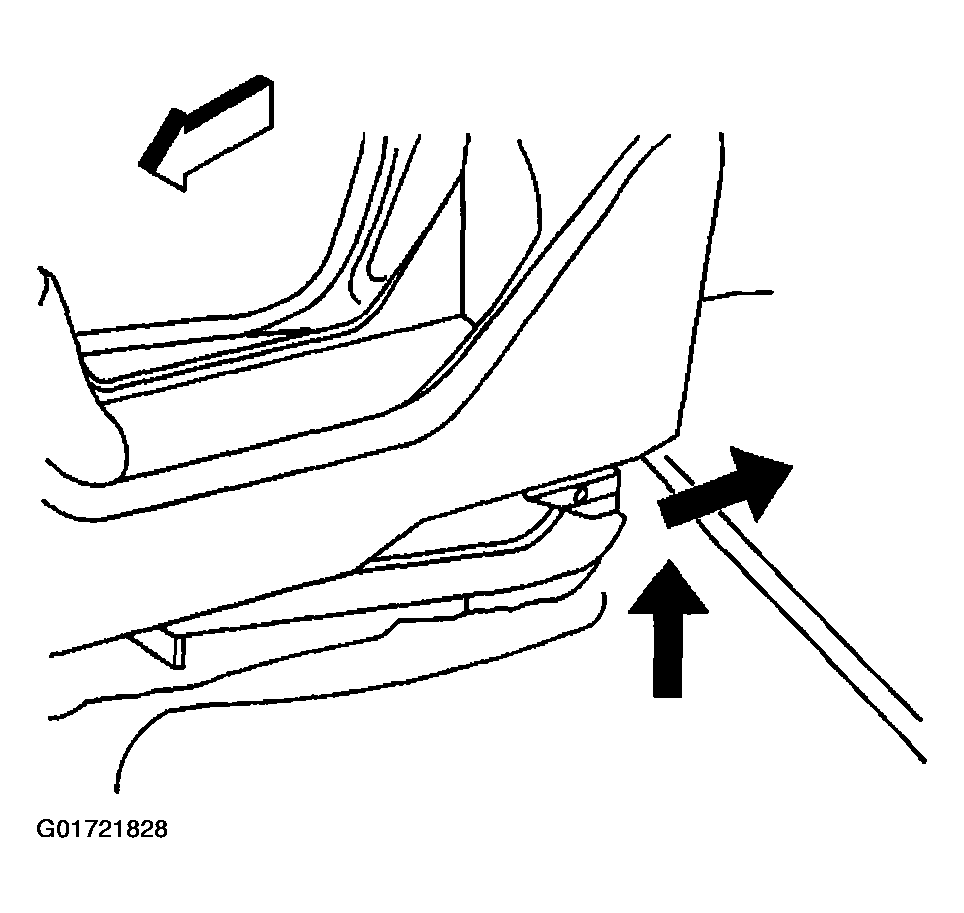

    Fig 2: Lifting Front Floor Console (Rendezvous)
    G01721828Courtesy of GENERAL MOTORS CORP.
