Removal Procedure

  1. Raise the armrest.
  2. Remove the screws from the armrest hinge assembly.
  3. Remove the armrest.

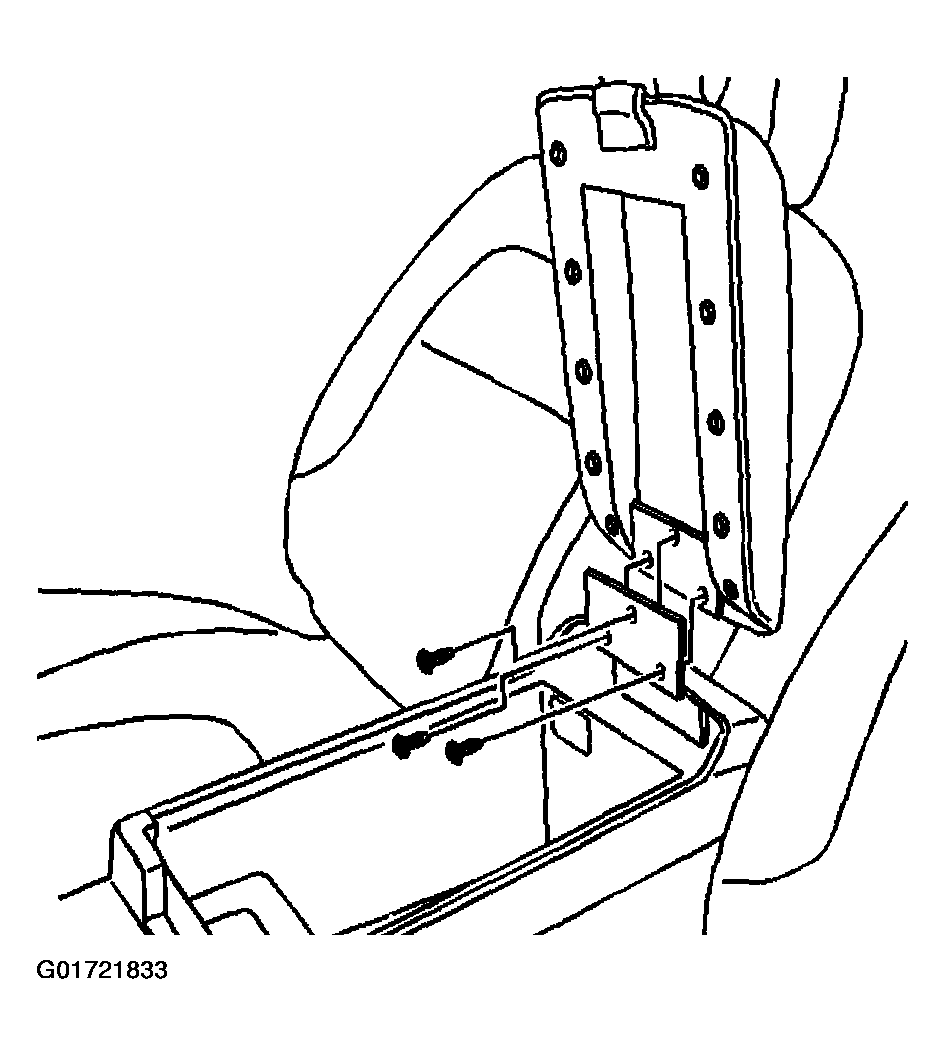

    Fig 1: Removing Armrest And Screws
    G01721833Courtesy of GENERAL MOTORS CORP.
