Removal Procedure

  1. Open the hood.
  2. Remove the clip from the hood latch.
  3. Disconnect the electrical connector from the sensor.
  4. Remove the ambient air temperature gage sensor from the electrical harness clip.

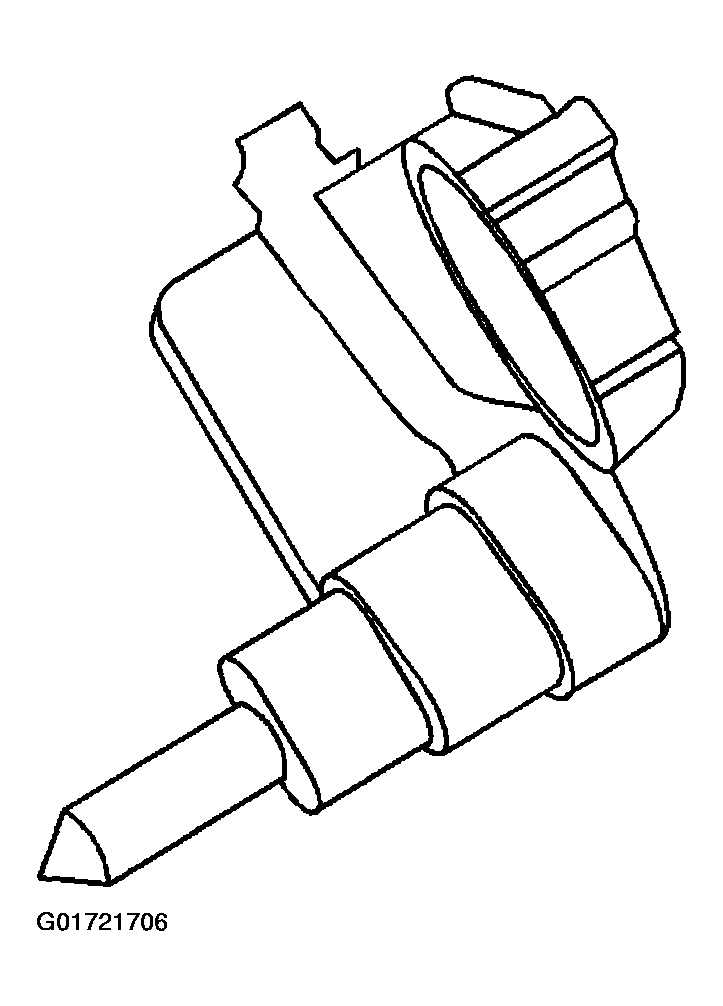

    Fig 1: View Of Ambient Air Temperature Gage Sensor (Rendezvous)
    G01721706Courtesy of GENERAL MOTORS CORP.
