Home >> Pontiac >> 2002 >> Aztek FWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Exterior Trim >> Instrument Panel, Gauges & Console >> Diagnostic Information and Procedures >> DTC B1369: Ignition 0 Input Low >> Test Description

Test Description

The number below refers to the step number on the diagnostic table.

  1. 3. This step determines if the ignition 0 voltage circuit is open or shorted to ground.

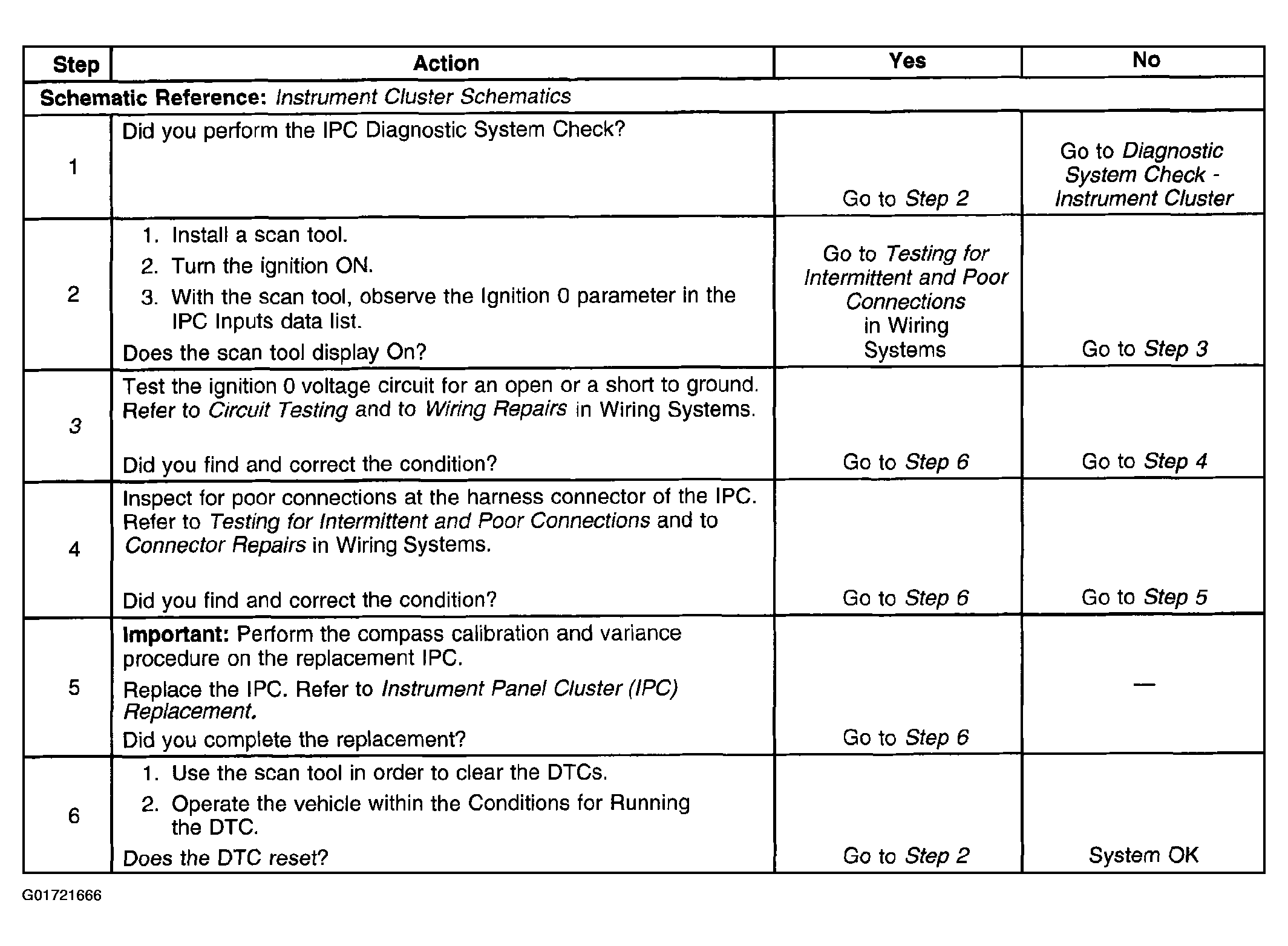

    Fig 1: DTC B1369
    G01721666Courtesy of GENERAL MOTORS CORP.
