Removal Procedure

Remove the screws from the front wheel opening molding.

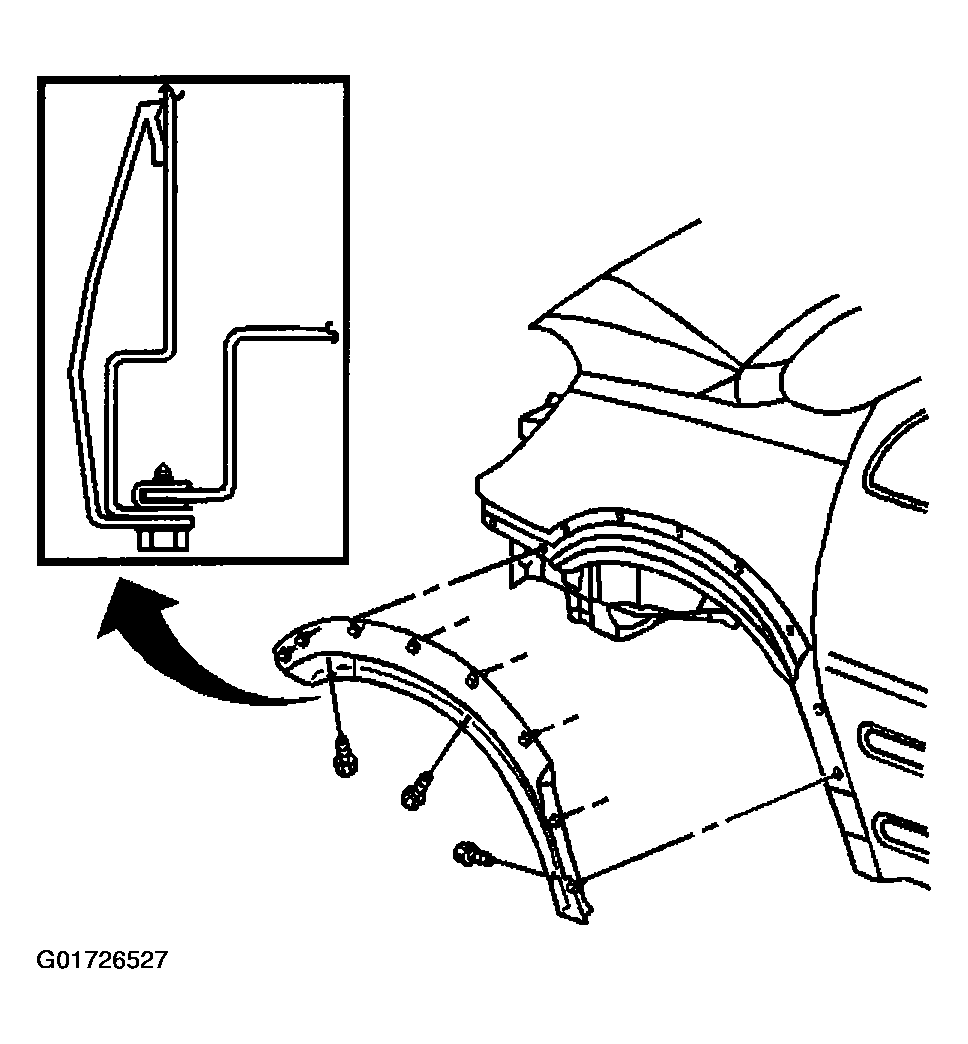

Fig 1: Removing Front Wheel Opening Molding Screws (Rendezvous)
Courtesy of GENERAL MOTORS CORP.
Remove the screws from the front corner of the fascia.
Pull outward on the corner of the front fascia to access the front wheel opening molding retainer.

Fig 2: Pulling Outward Front Fascia Corner
Courtesy of GENERAL MOTORS CORP.
A thin, plastic flat-bladed tool may be used between the fender and molding to help release the retainers. Remove the front wheel opening molding from the fender.

Fig 3: Removing Front Wheel Opening Molding From Fender (Rendezvous)
Courtesy of GENERAL MOTORS CORP.
Remove the wheel opening molding retainers from the molding, if necessary.

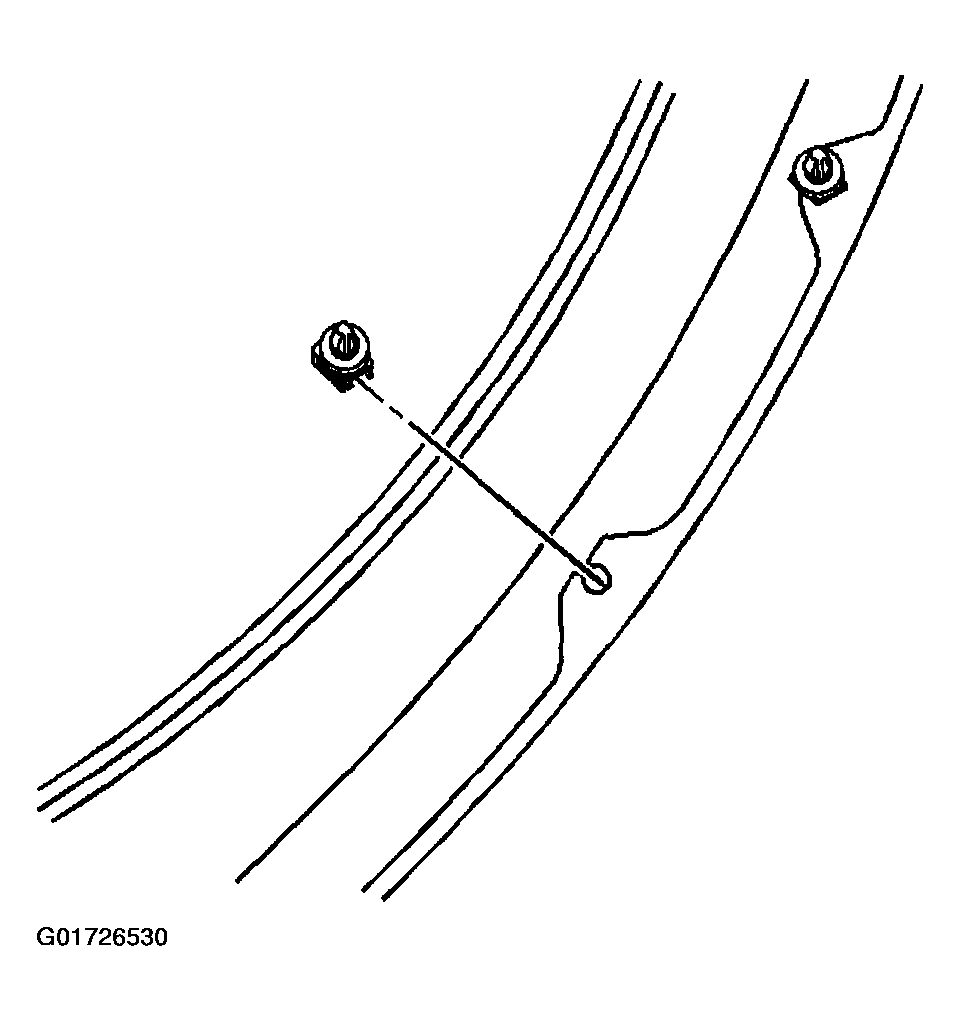

Fig 4: Removing Wheel Opening Molding Retainers
Courtesy of GENERAL MOTORS CORP.
