Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 2.   This step verifies that the DTC is still present.
2. 3.   This step isolates the fault condition.

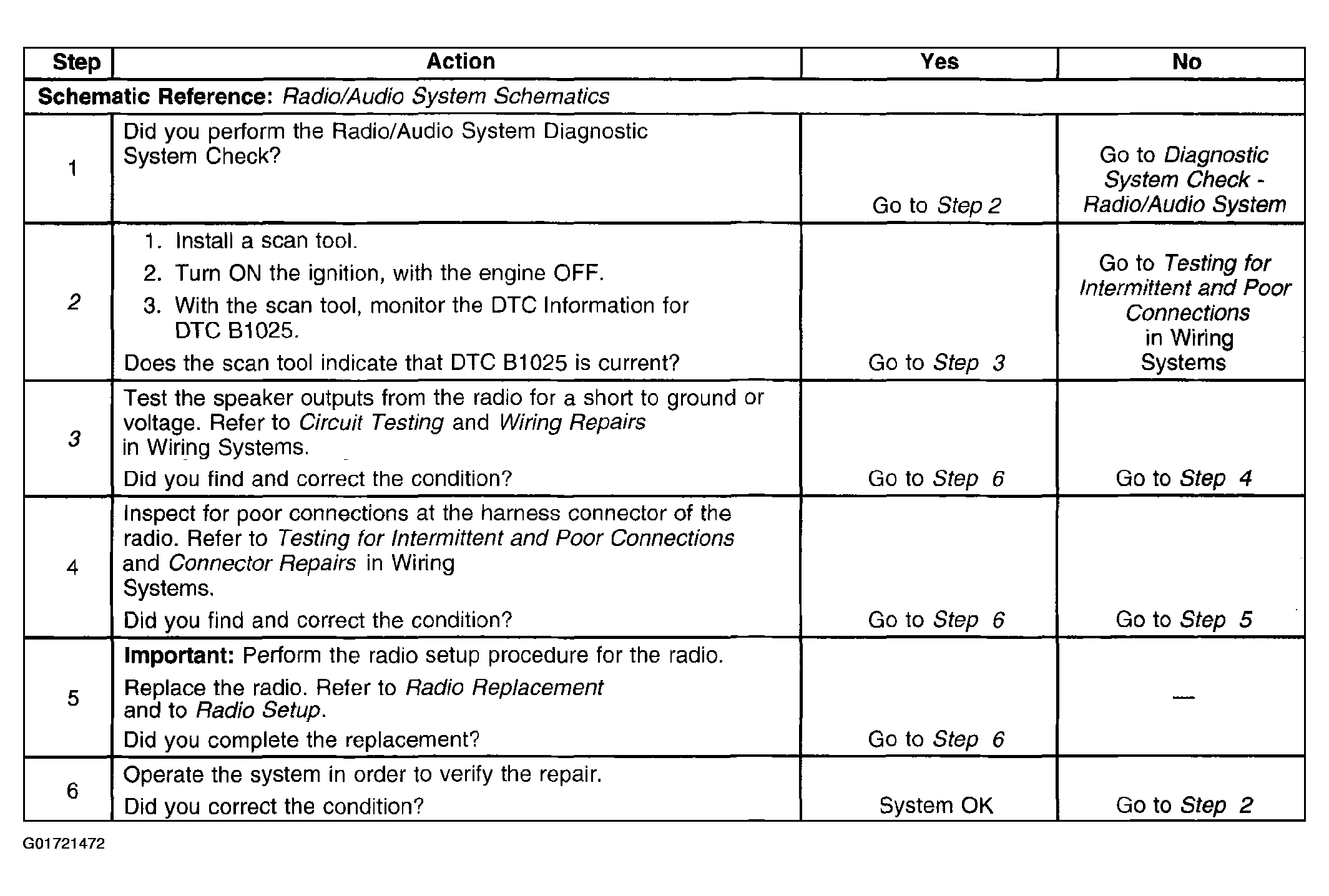

Fig 1: DTC B1025, B1035, B1045, or B1055

Courtesy of GENERAL MOTORS CORP.
