Interior Lights Schematics (Dimming Controls and Panel Lamps - Pontiac And Buick)

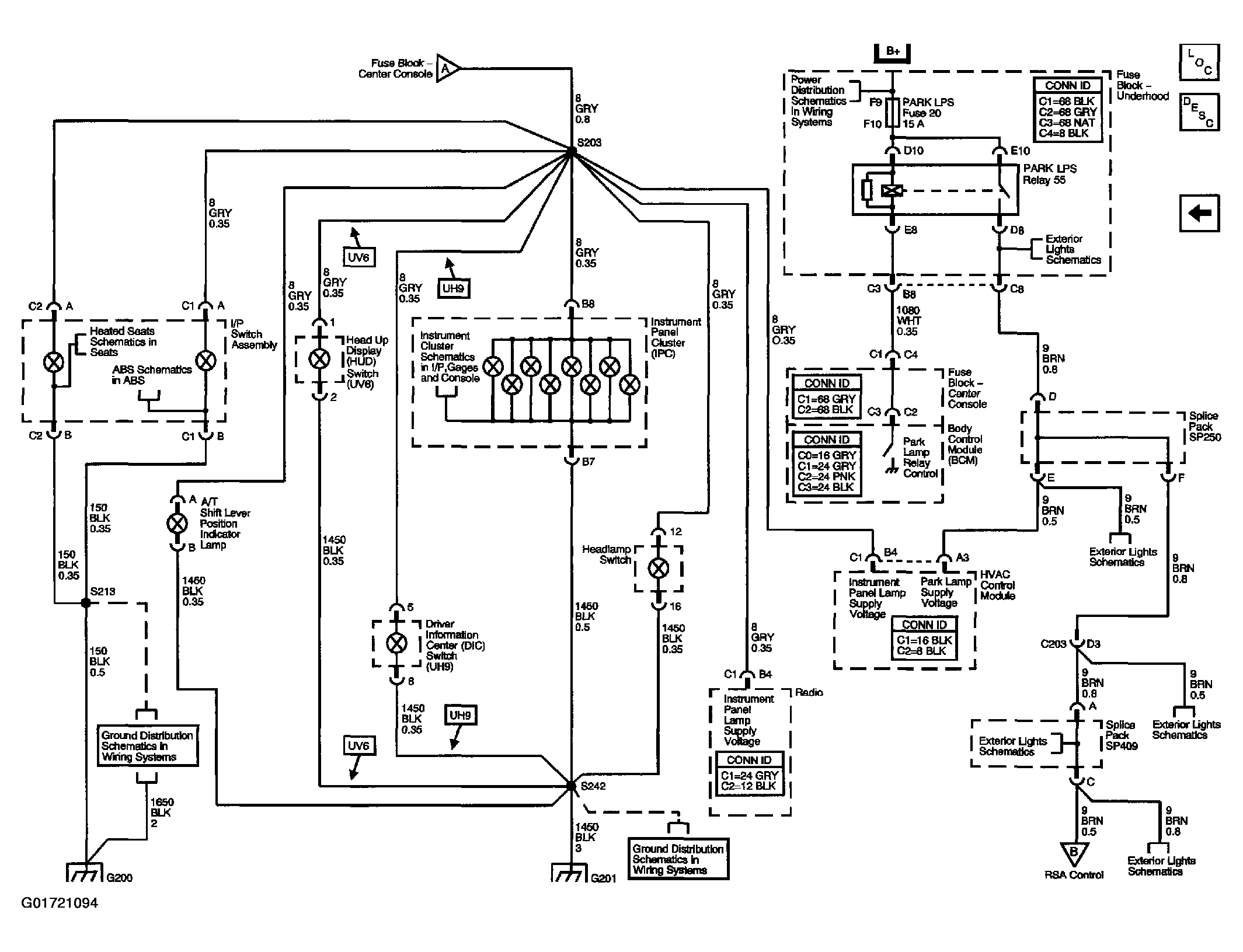

Fig 1: Interior Lights Schematics (Dimming Controls & Panel Lamps 1 Of 2 - Pontiac)

Courtesy of GENERAL MOTORS CORP.

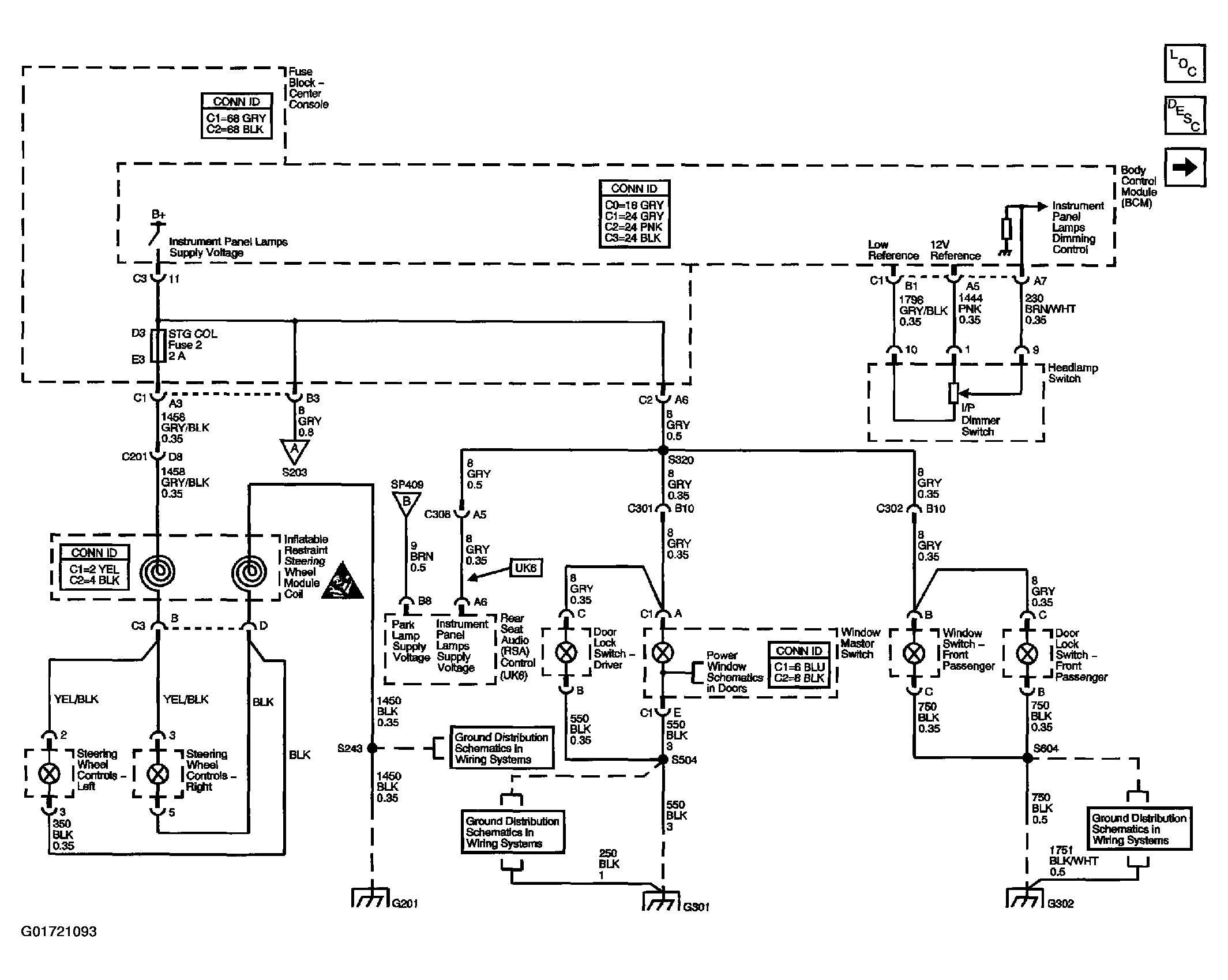

Fig 2: Interior Lights Dimming Schematics (Panel Lamps 2 Of 2 - Pontiac)

Courtesy of GENERAL MOTORS CORP.

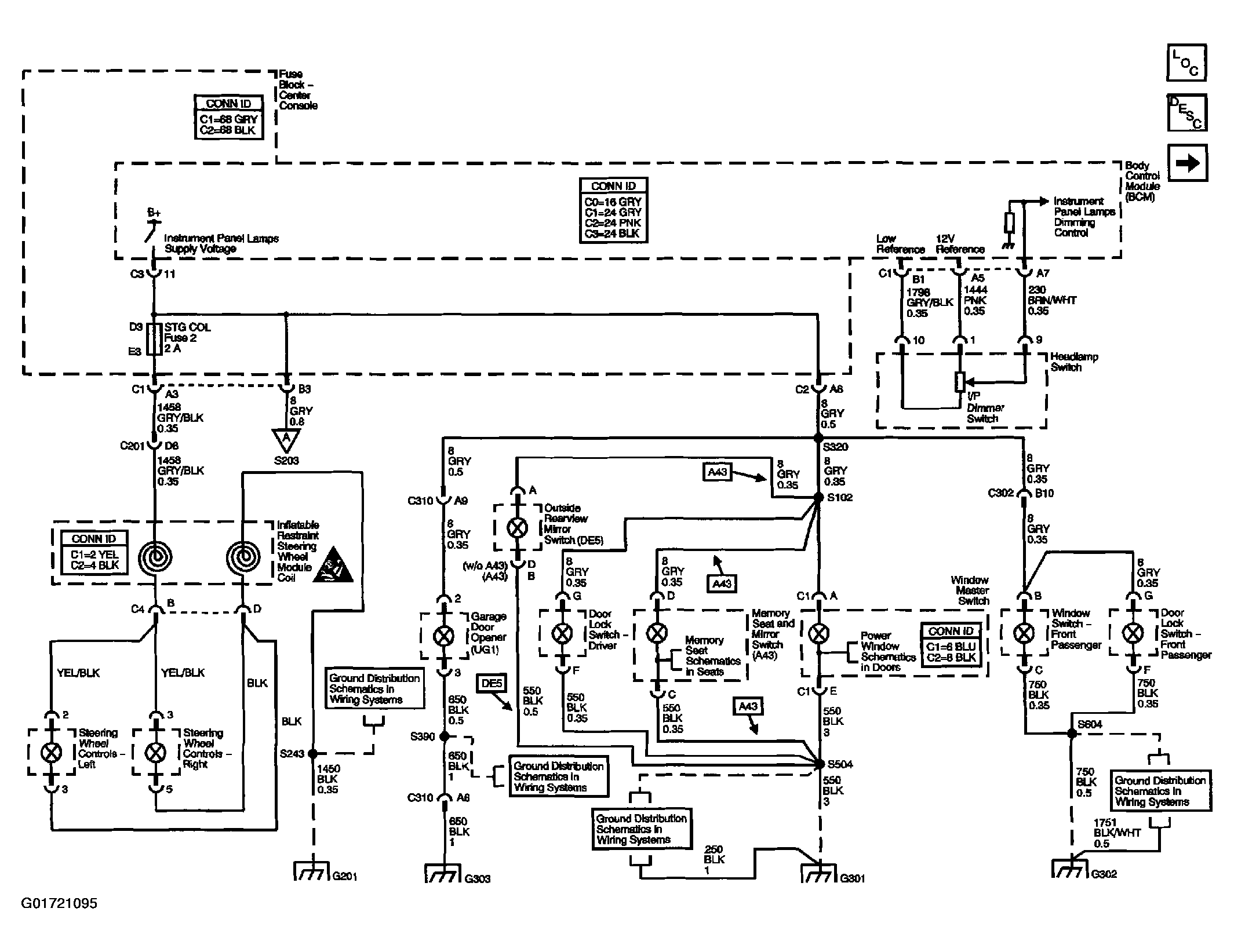

Fig 3: Interior Lights Dimming Schematics (Dimming Controls & Panel Lamps 1 Of 2 - Buick)

Courtesy of GENERAL MOTORS CORP.

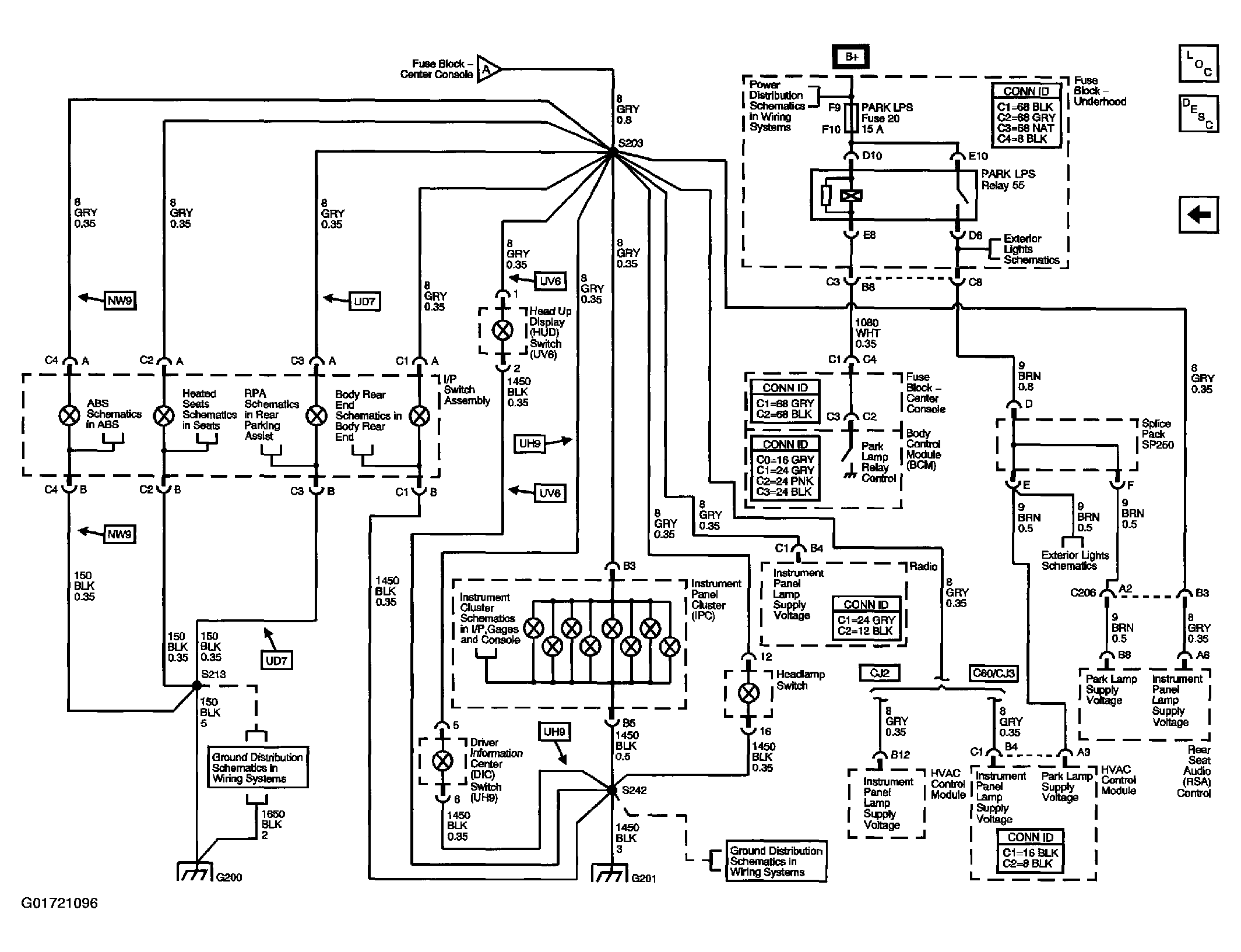

Fig 4: Interior Lights Dimming Schematics (Panel Lamps 2 Of 2 - Buick)

Courtesy of GENERAL MOTORS CORP.
