Exterior Lights Schematics (Park Lamps - Pontiac)

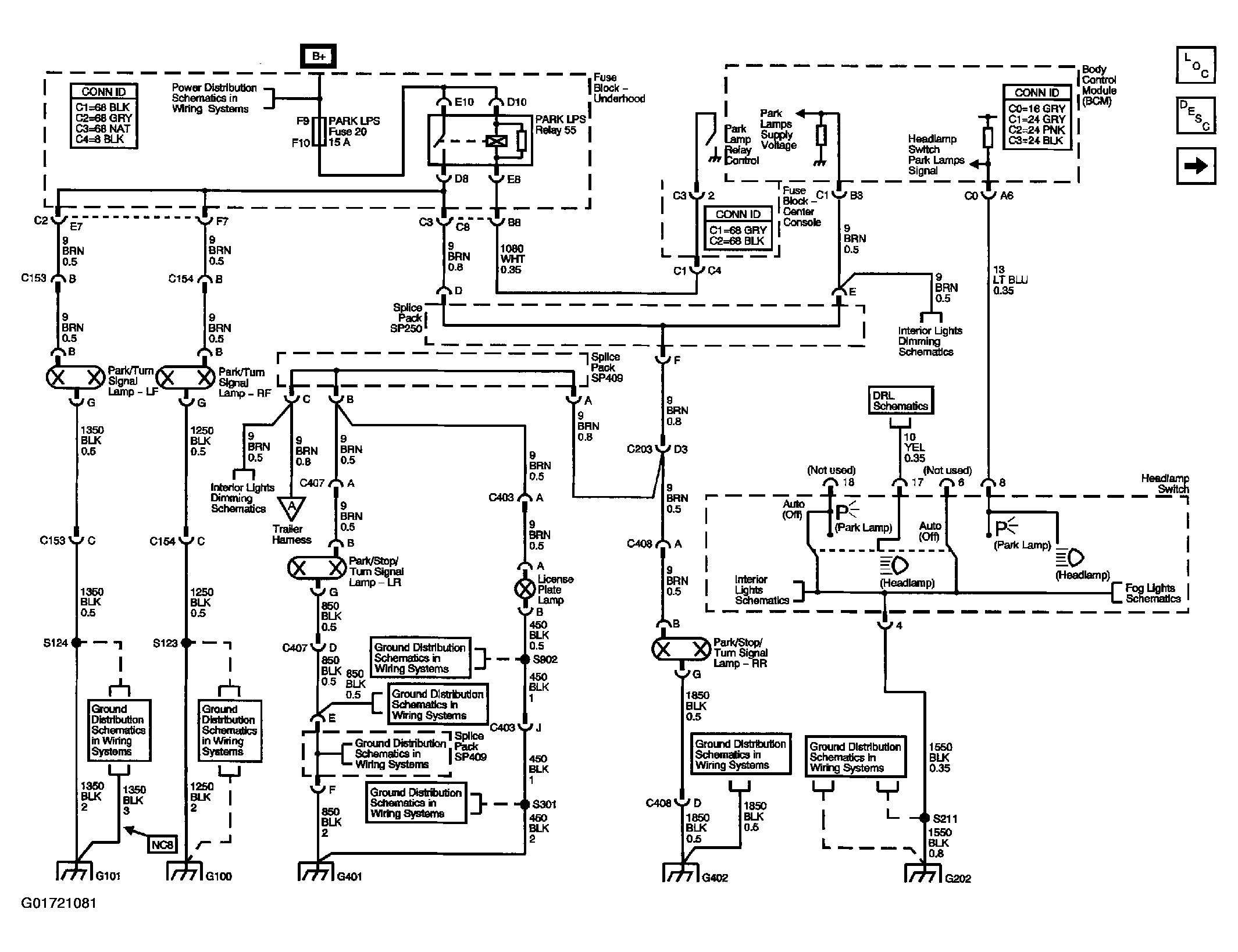

Fig 1: Exterior Lights Schematics (Park Lamps - Pontiac)

Courtesy of GENERAL MOTORS CORP.

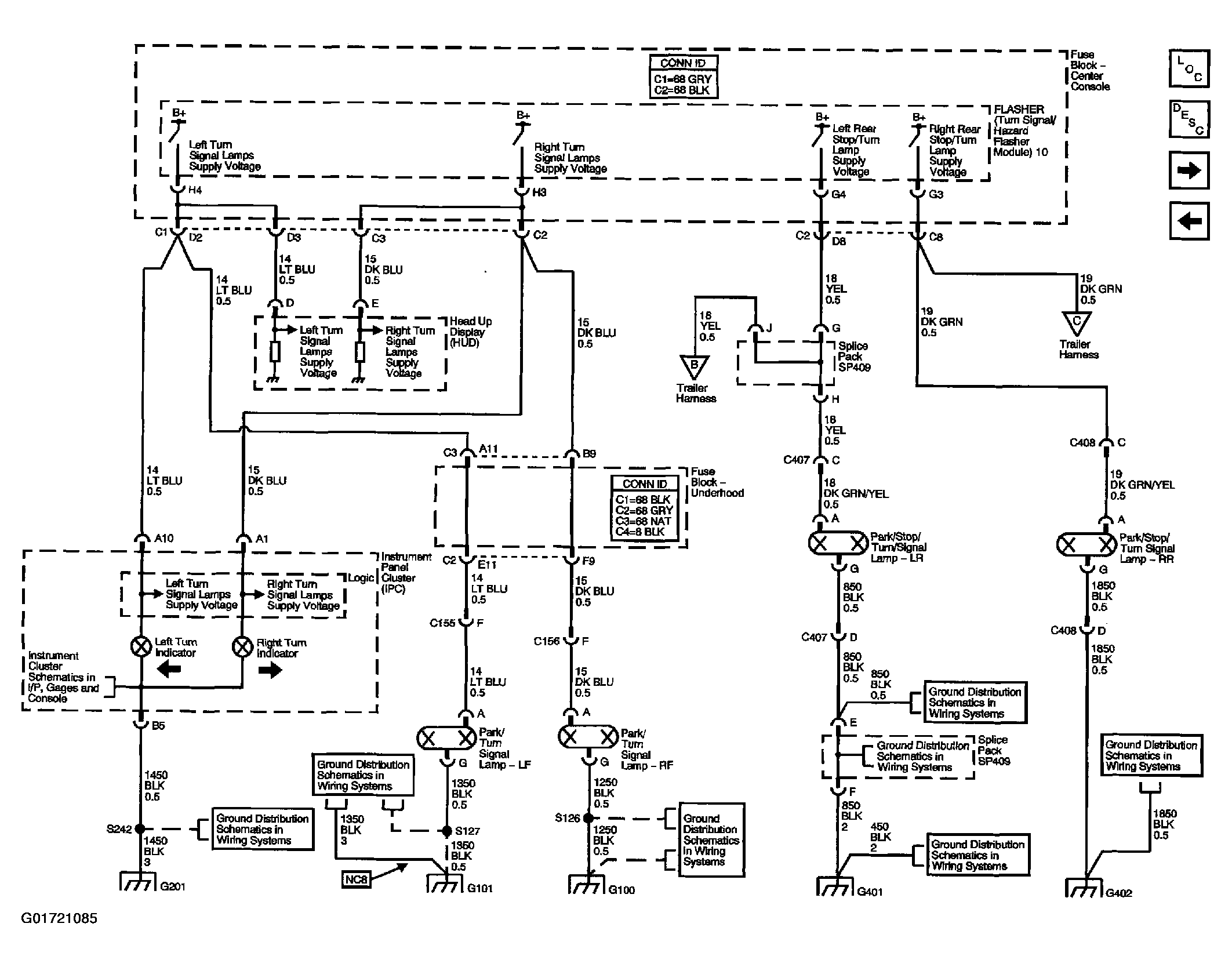

Fig 2: Exterior Lights Schematics (Park Lamps - Buick)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Exterior Lights Schematics (Turn Signal/Hazard Control)

Courtesy of GENERAL MOTORS CORP.

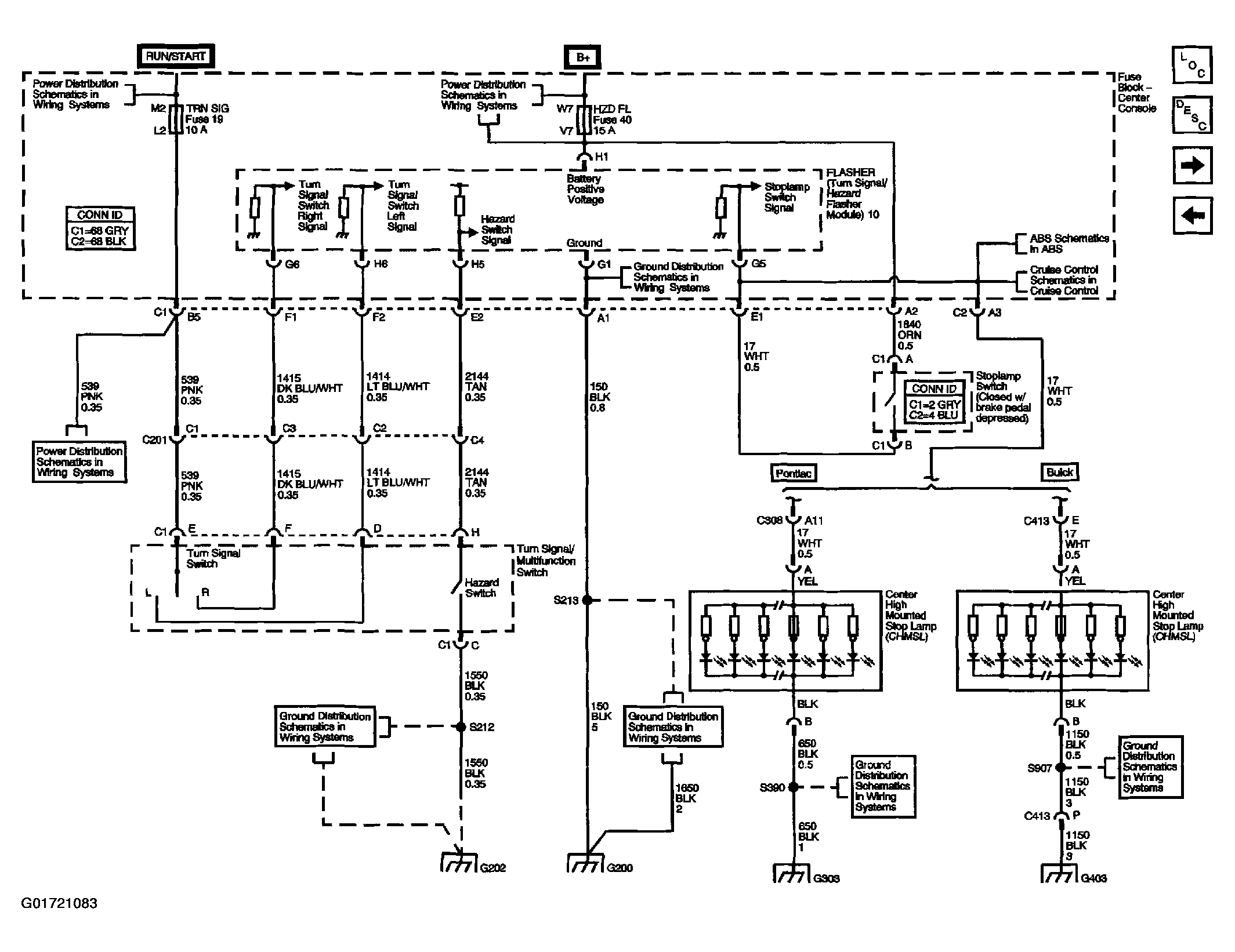

Fig 4: Exterior Lights Schematics (Turn/Stop Lamps & Indicators-Pontiac)

Courtesy of GENERAL MOTORS CORP.

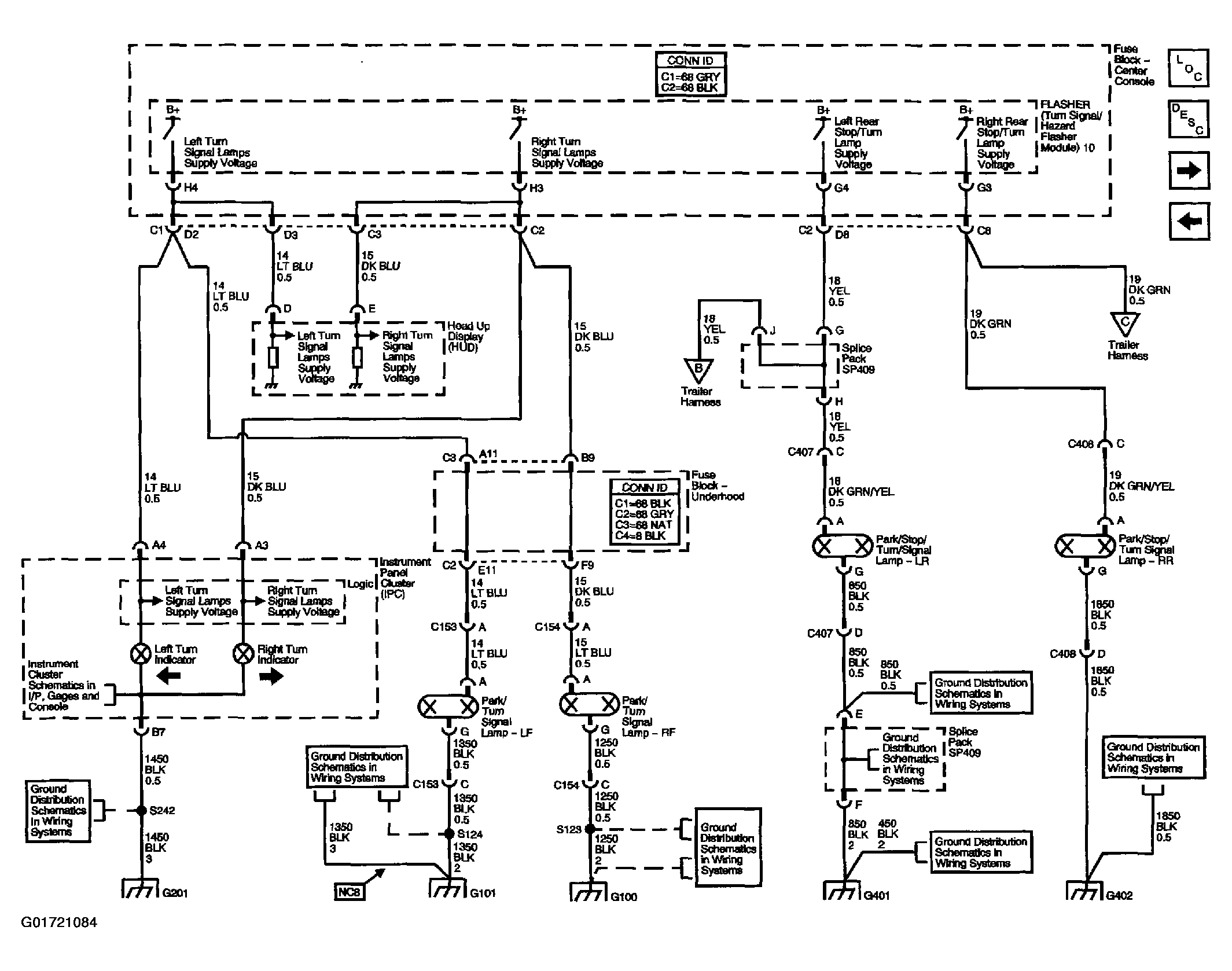

Fig 5: Exterior Lights Schematics (Turn/Stop Lamps & Indicators-Buick)

Courtesy of GENERAL MOTORS CORP.

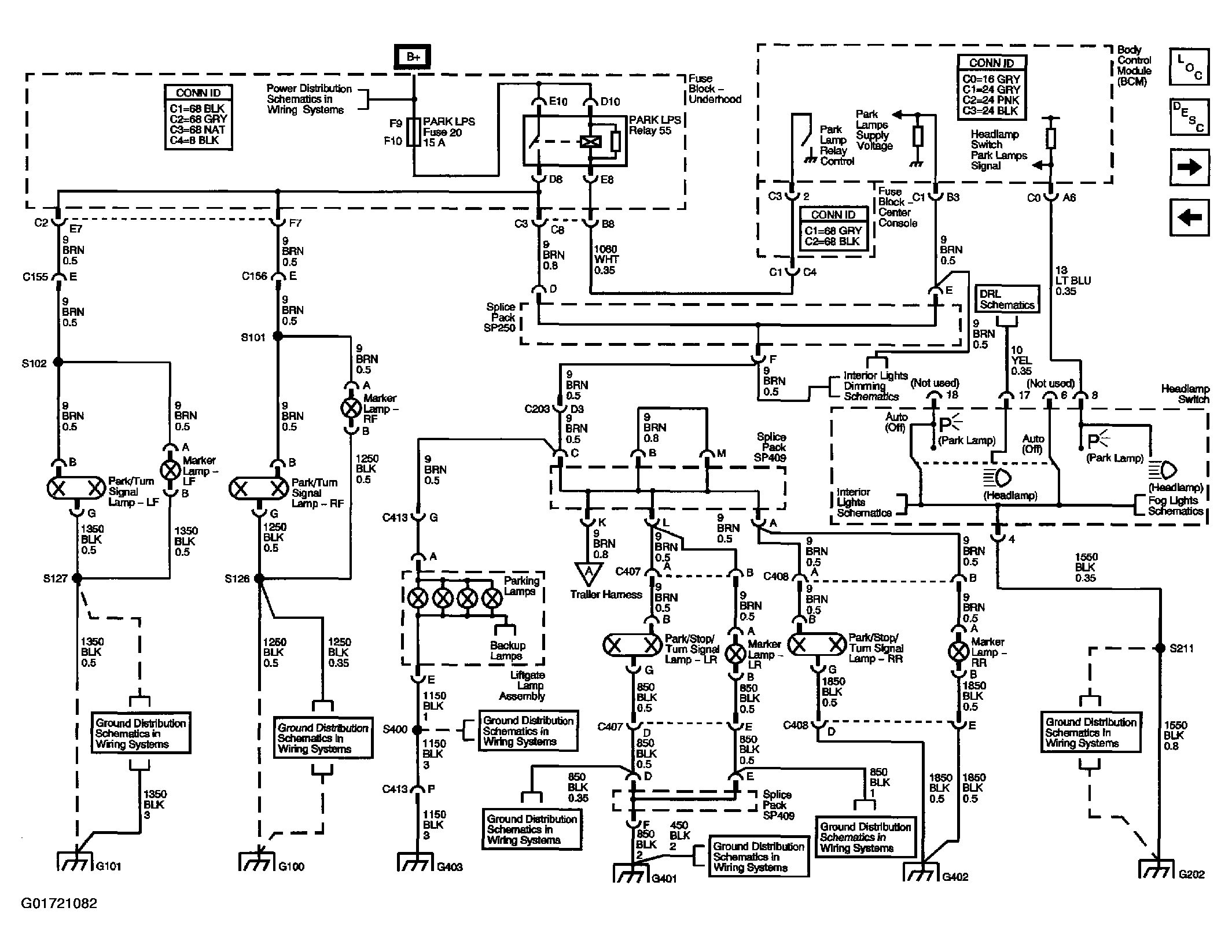

Fig 6: Exterior Lights Schematics (Trailer Harness)

Courtesy of GENERAL MOTORS CORP.

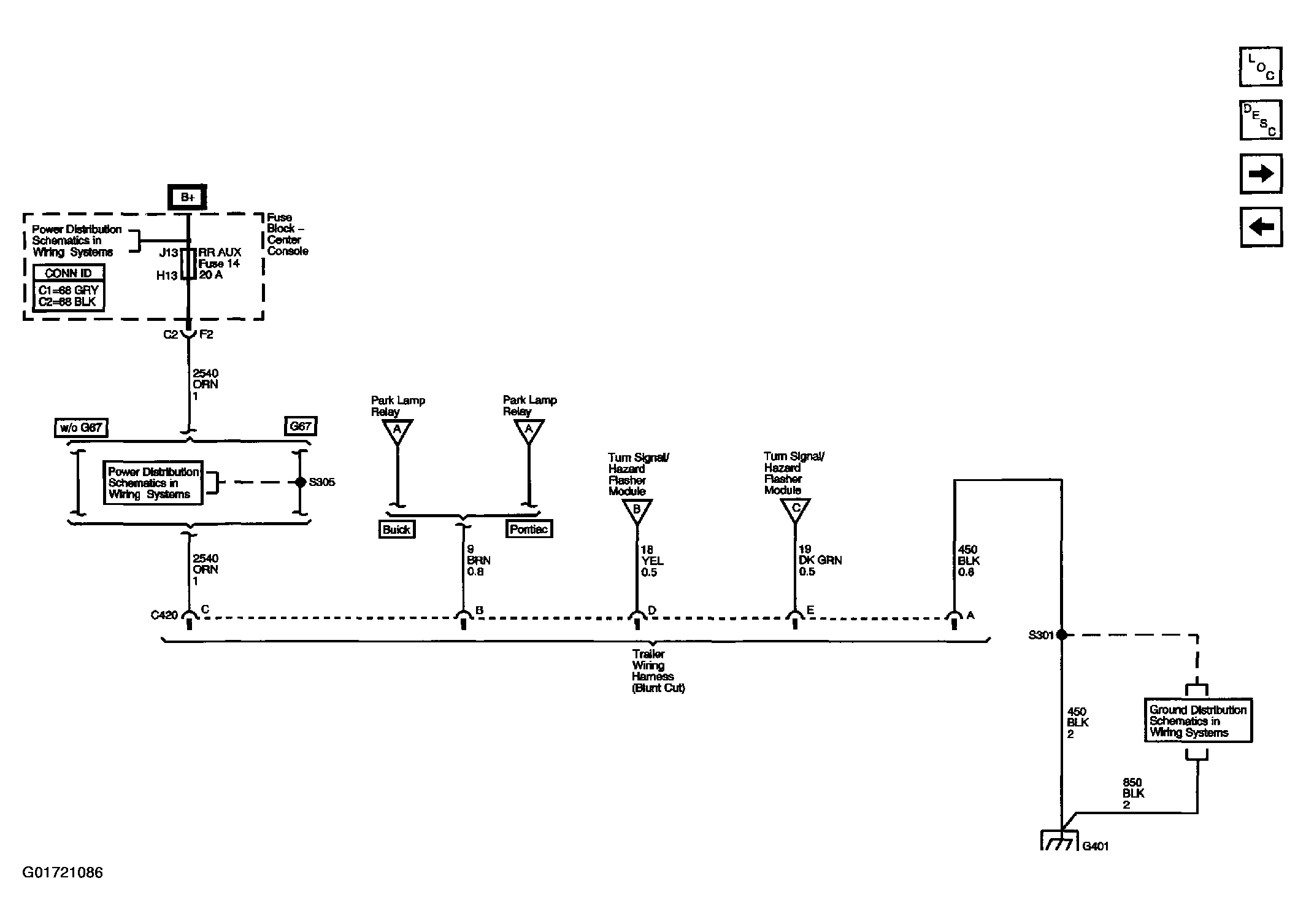

Fig 7: Exterior Lights Schematics (Backup Lamps)

Courtesy of GENERAL MOTORS CORP.
