Headlamps Inoperative - Low Beams

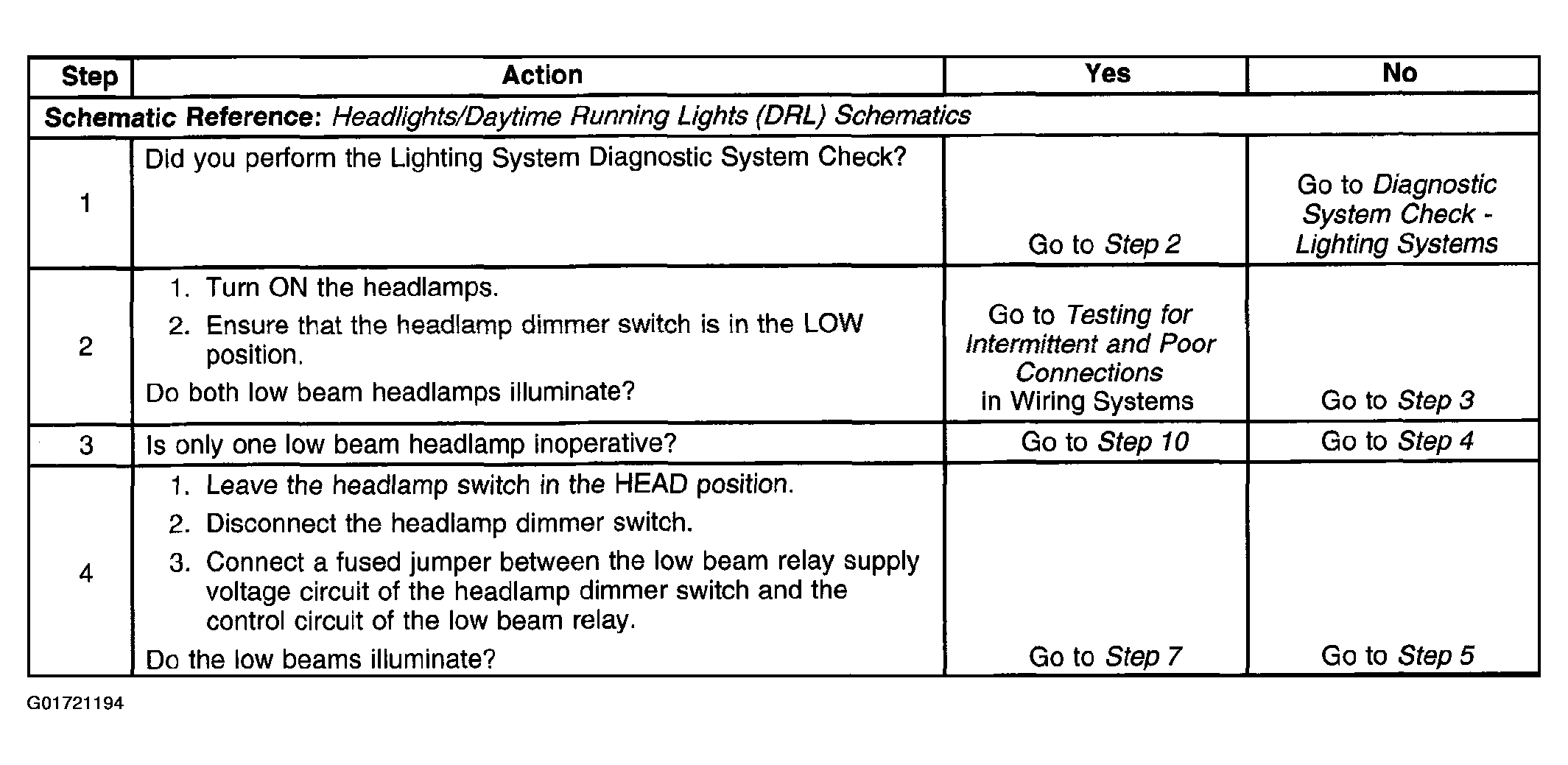

Fig 1: Headlamps Inoperative - Low Beams (1 Of 2)

G01721194

Courtesy of GENERAL MOTORS CORP.

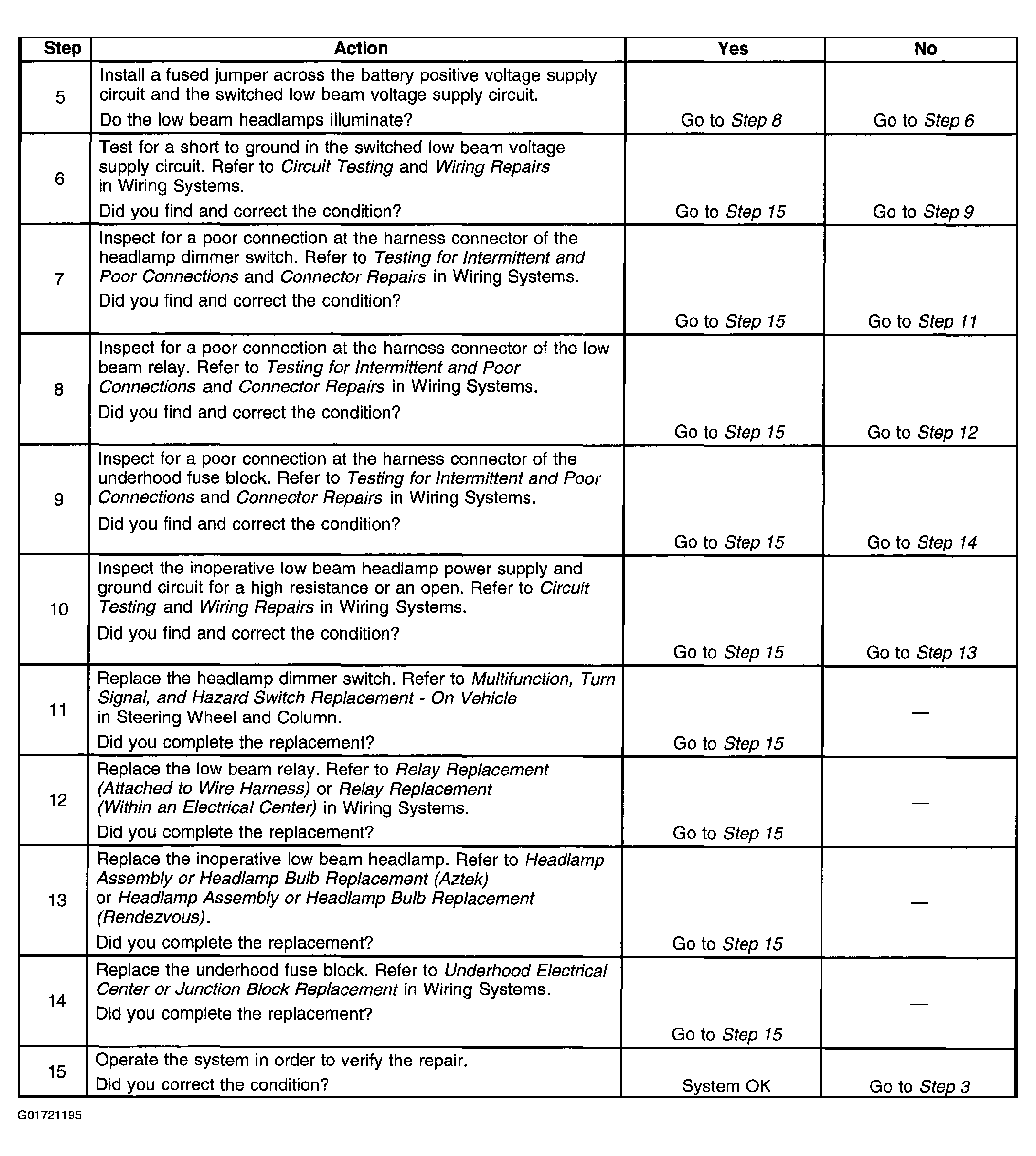

Fig 2: Headlamps Inoperative - Low Beams (2 Of 2)

G01721195

Courtesy of GENERAL MOTORS CORP.
