Removal Procedure

  1. Remove rear cup holder liner and remove the screw.
  2. Pull up on the trim plate to release the retainer clips.
  3. Lift the trim plate and turn sideways in order to lift the trim plate over the transaxle shift lever.
  4. Remove the trim plate from the front floor console.

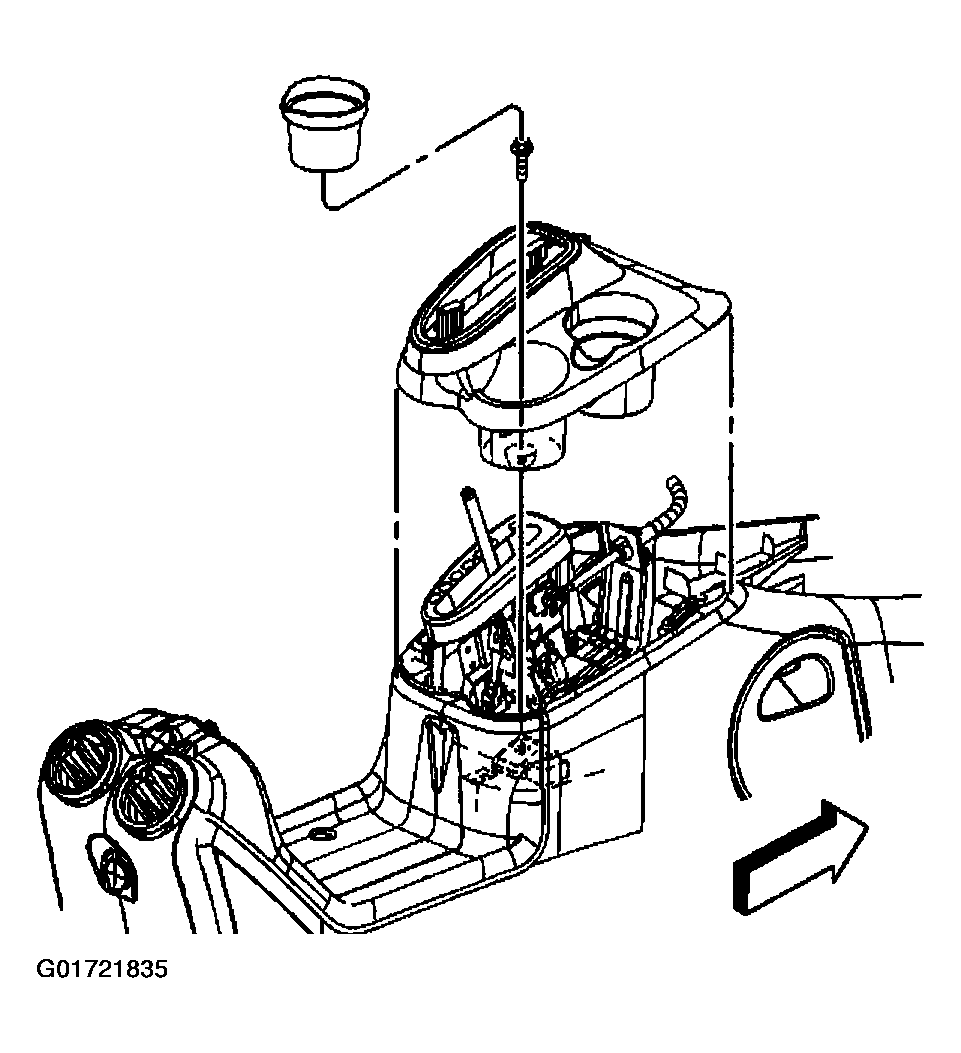

    Fig 1: Removing Front Floor Console Trim Plate
    G01721835Courtesy of GENERAL MOTORS CORP.
