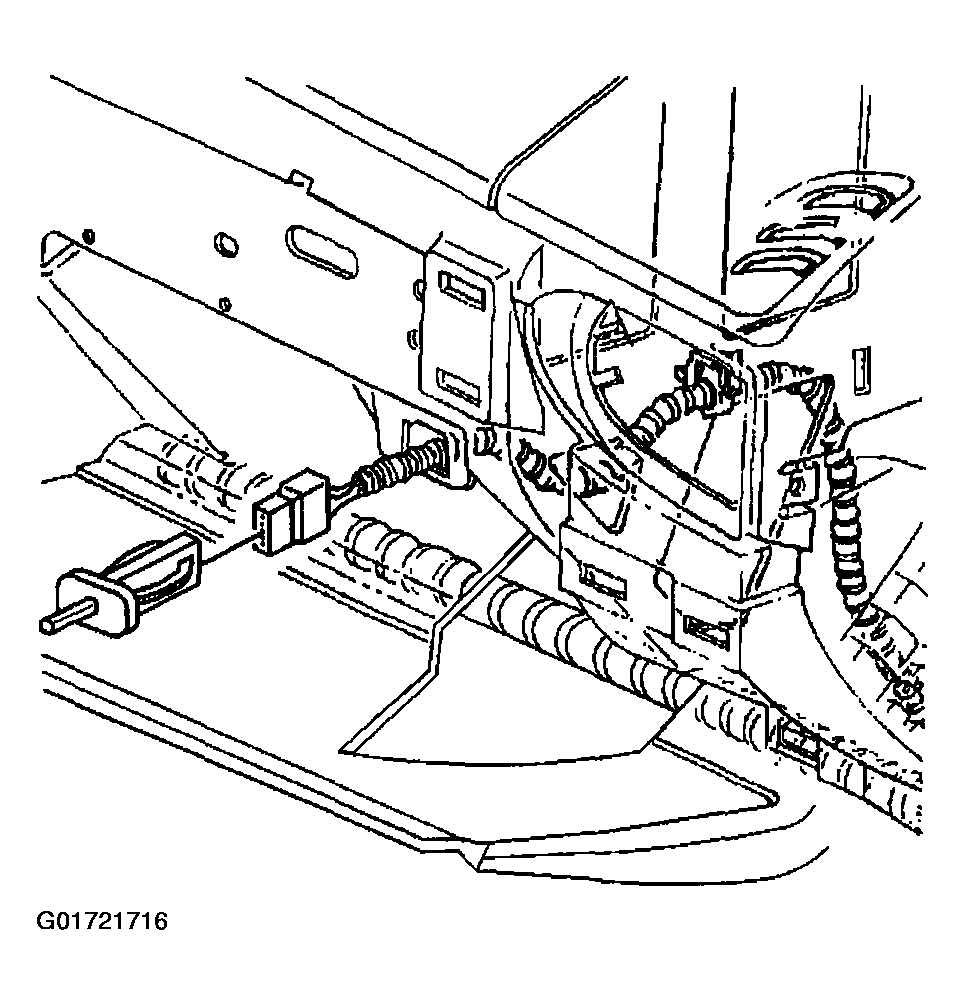

Installation Procedure
- Press the bulb into the instrument panel compartment lamp switch socket.
- Connect the electrical connector to the instrument panel compartment lamp switch.
- Align the instrument panel compartment lamp switch into instrument panel compartment.
- Install the instrument panel compartment lamp switch.
Press the instrument panel compartment lamp switch until retainers are fully seated.
