Removal Procedure

  1. Remove the front floor console trim plate. Refer to Trim Plate Replacement - Front Floor Console (Aztek)  or Trim Plate Replacement - Front Floor Console (Rendezvous) .
  2. Disconnect the electrical connectors.
  3. Remove the nuts from the front of the front floor console.

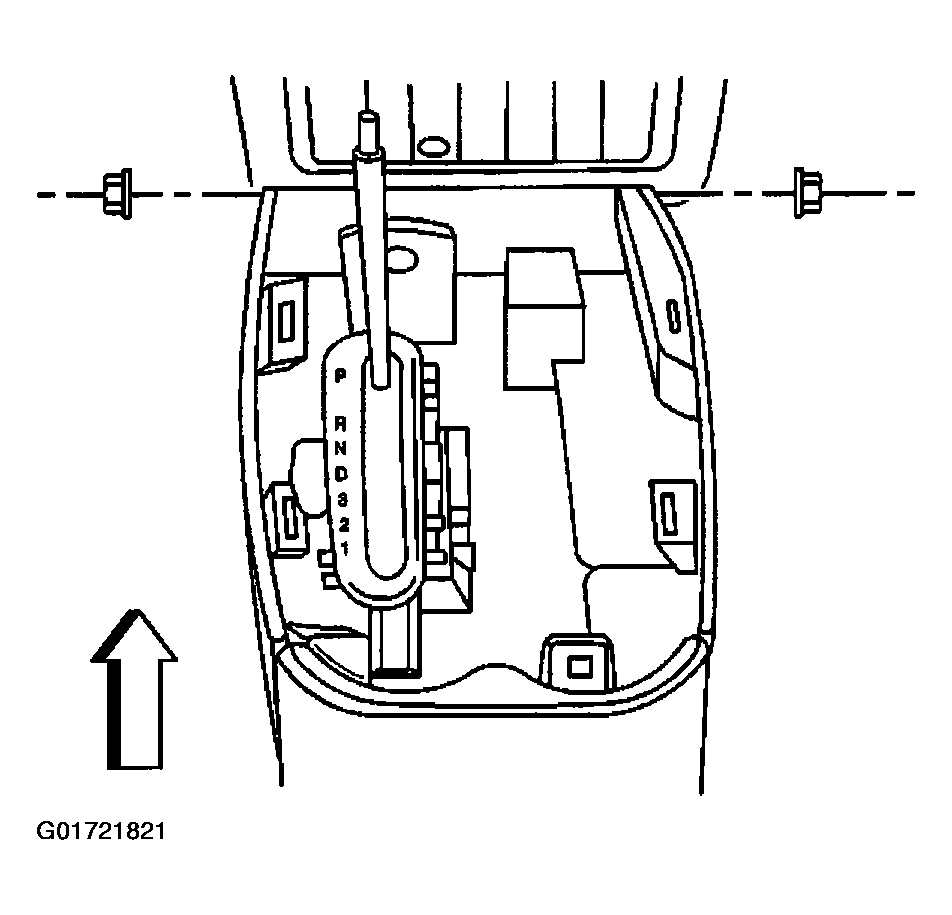

    Fig 1: Removing Front Of Front Floor Console Nuts
    G01721821Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts from the back of the front floor console.
    Fig 2: Removing Back Of Front Floor Console Nuts
    G01721822Courtesy of GENERAL MOTORS CORP.
  5. Lift straight up on the front floor console and pull back in order to remove the console from the vehicle.

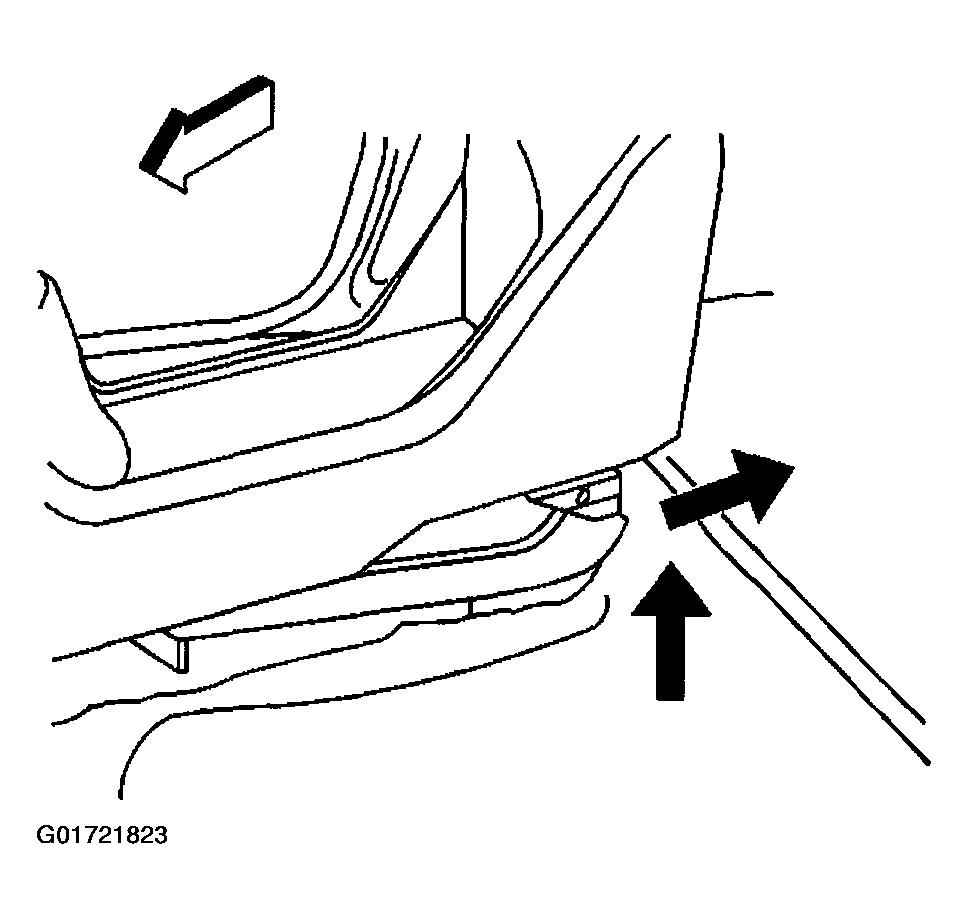

    Fig 3: Lifting Front Floor Console (AZTEK)
    G01721823Courtesy of GENERAL MOTORS CORP.
