Removal Procedure

CAUTION: Refer to HALOGEN BULB CAUTION .
  1. Open the hood.
  2. Remove the thumb screw from the back of the headlamp.
  3. Release the headlamp retainer by lifting up.

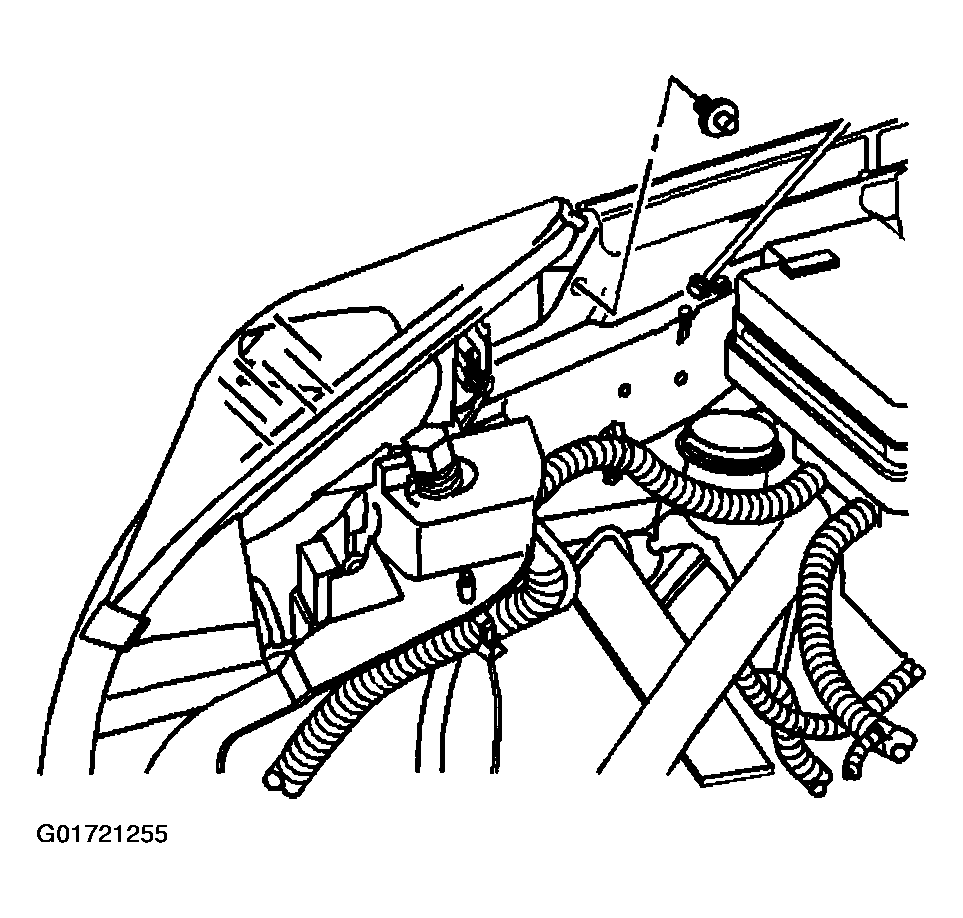

    Fig 1: Removing Headlamp Thumbscrew
    G01721255Courtesy of GENERAL MOTORS CORP.
  4. Pull the headlamp straight forward, to release the ball stud from the grommet.
  5. Remove the headlamp from the upper fascia support.
  6. Disconnect the electrical connector from the headlamp.

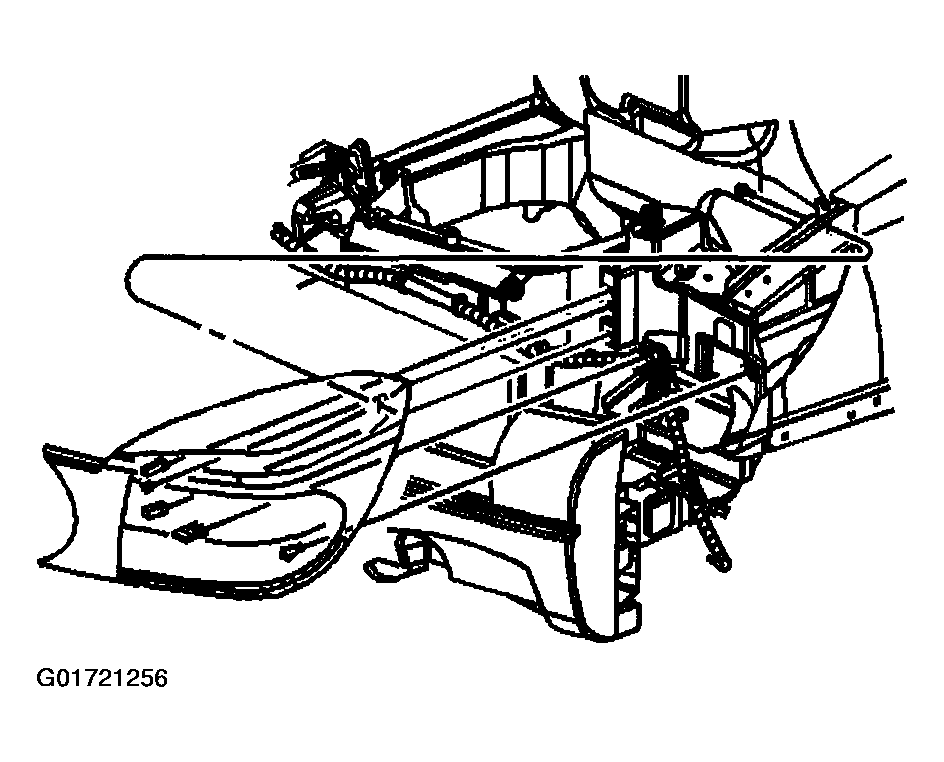

    Fig 2: Disconnecting Headlamp Electrical Connectors
    G01721256Courtesy of GENERAL MOTORS CORP.
  7. Remove the bulb(s) from the headlamp by rotating counterclockwise.

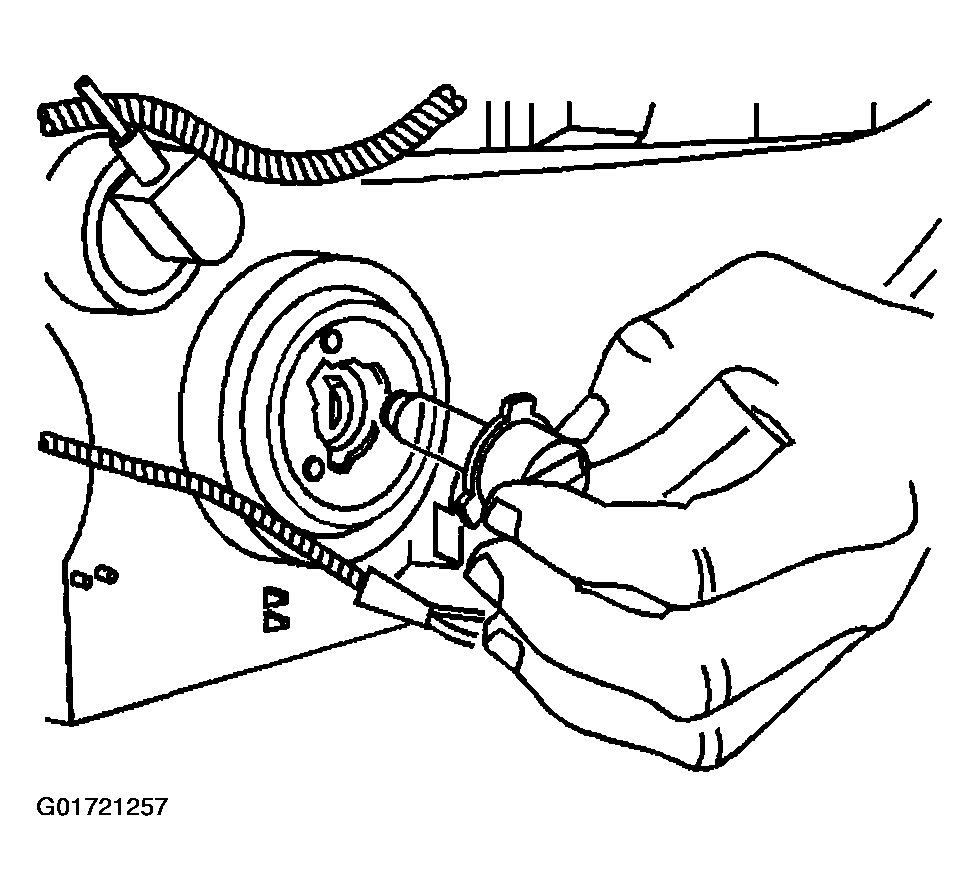

    Fig 3: Removing Headlamp Bulb
    G01721257Courtesy of GENERAL MOTORS CORP.
  8. Release the headlamp trim tabs from the headlamp, if required.

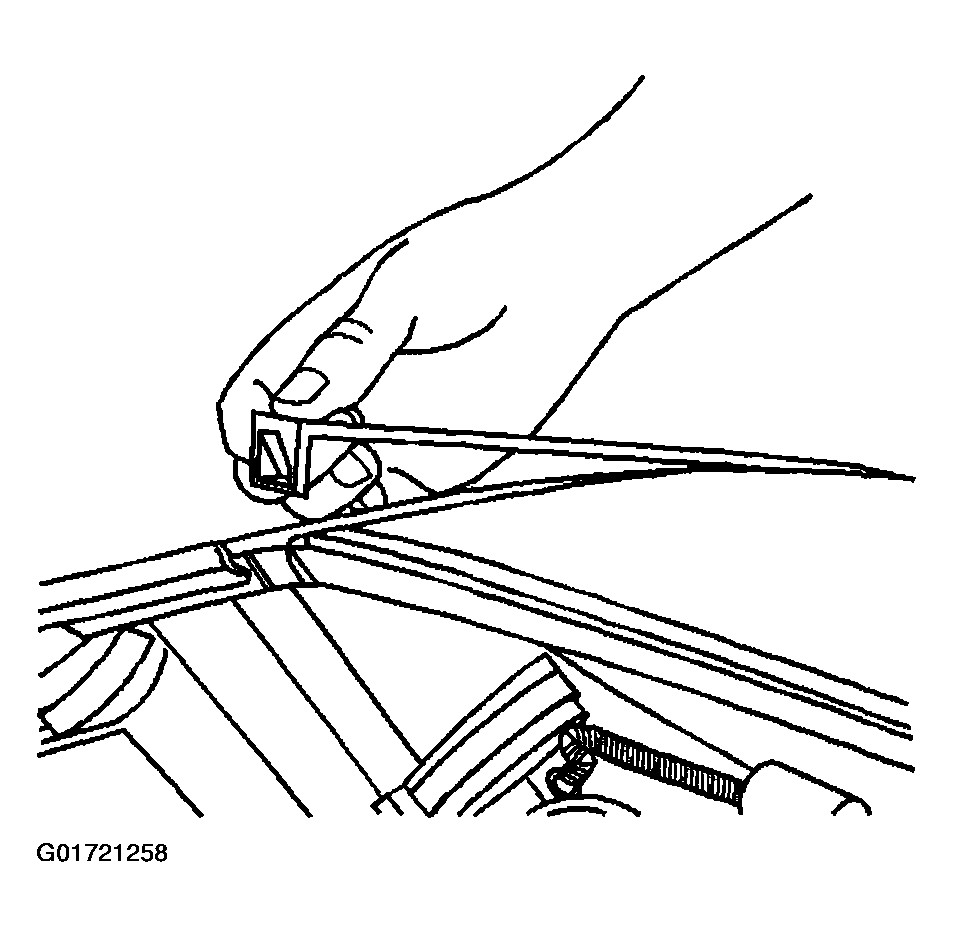

    Fig 4: Releasing Headlamp Trim Tabs
    G01721258Courtesy of GENERAL MOTORS CORP.
  9. Remove the headlamp trim from the headlamp, pulling to release the adhesive tape.
  10. Clean adhesive from the headlamp trim and headlamp using 3M™ adhesive remover P/N 8984, or equivalent.

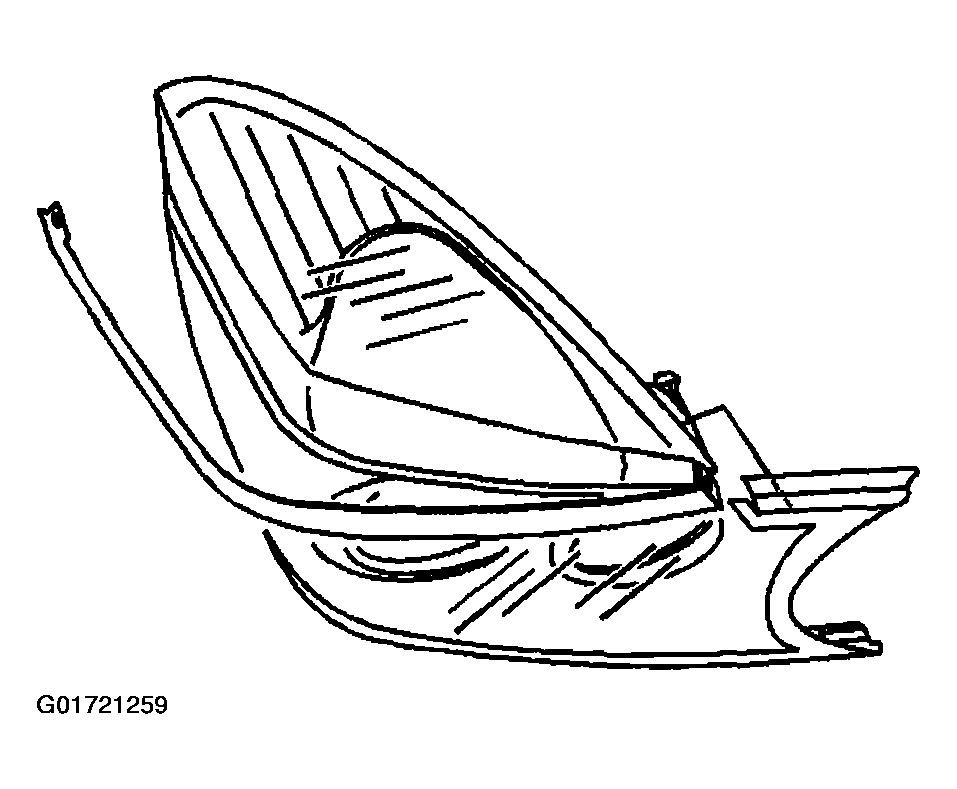

    Fig 5: Removing Headlamp Trim
    G01721259Courtesy of GENERAL MOTORS CORP.
