Rear Parking Assist Schematics (Rear Parking Assist (RPA) Module Power and Ground)

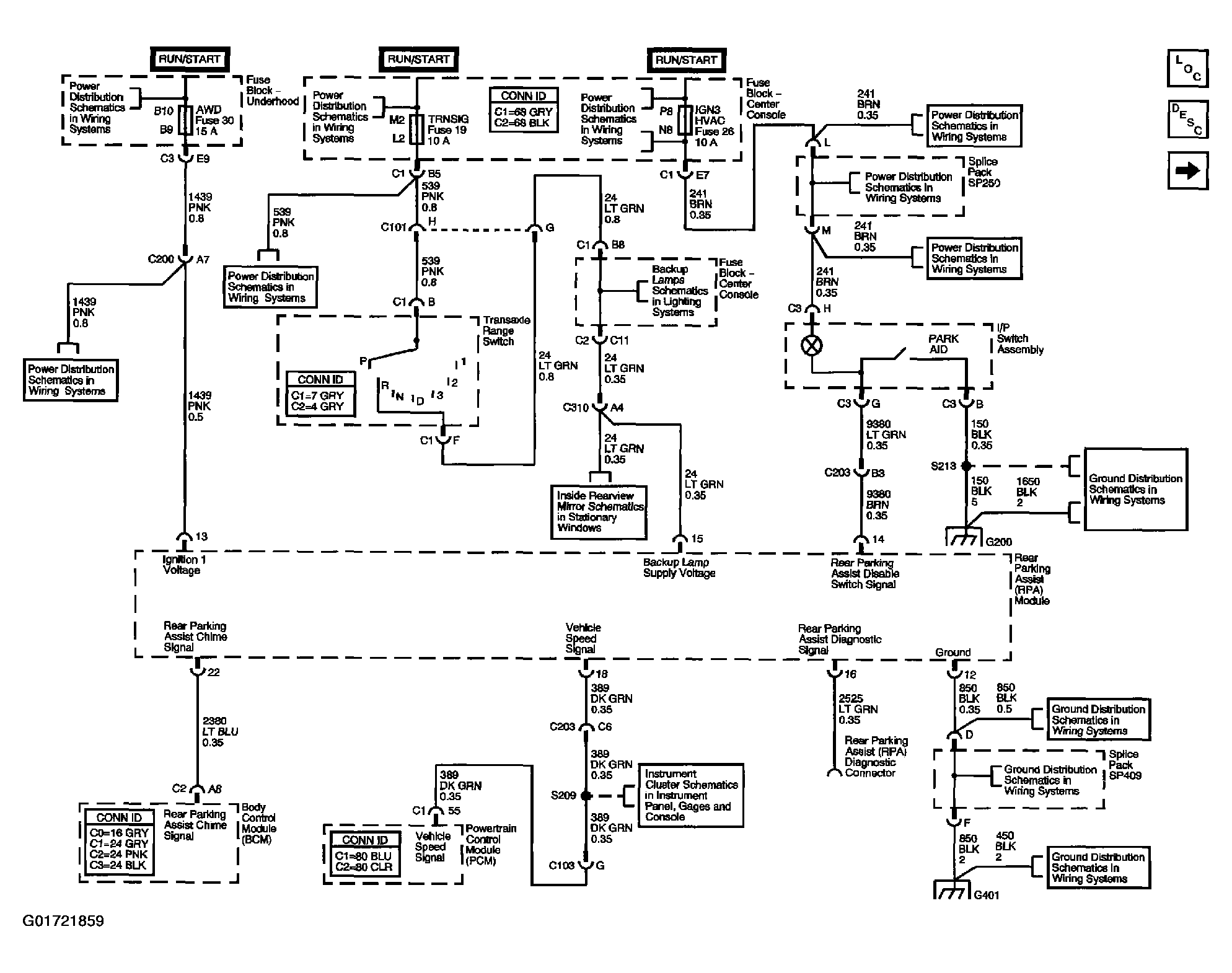

Fig 1: Rear Parking Assist Schematics (Rear Parking Assist (RPA) Module Power and Ground)

Courtesy of GENERAL MOTORS CORP.

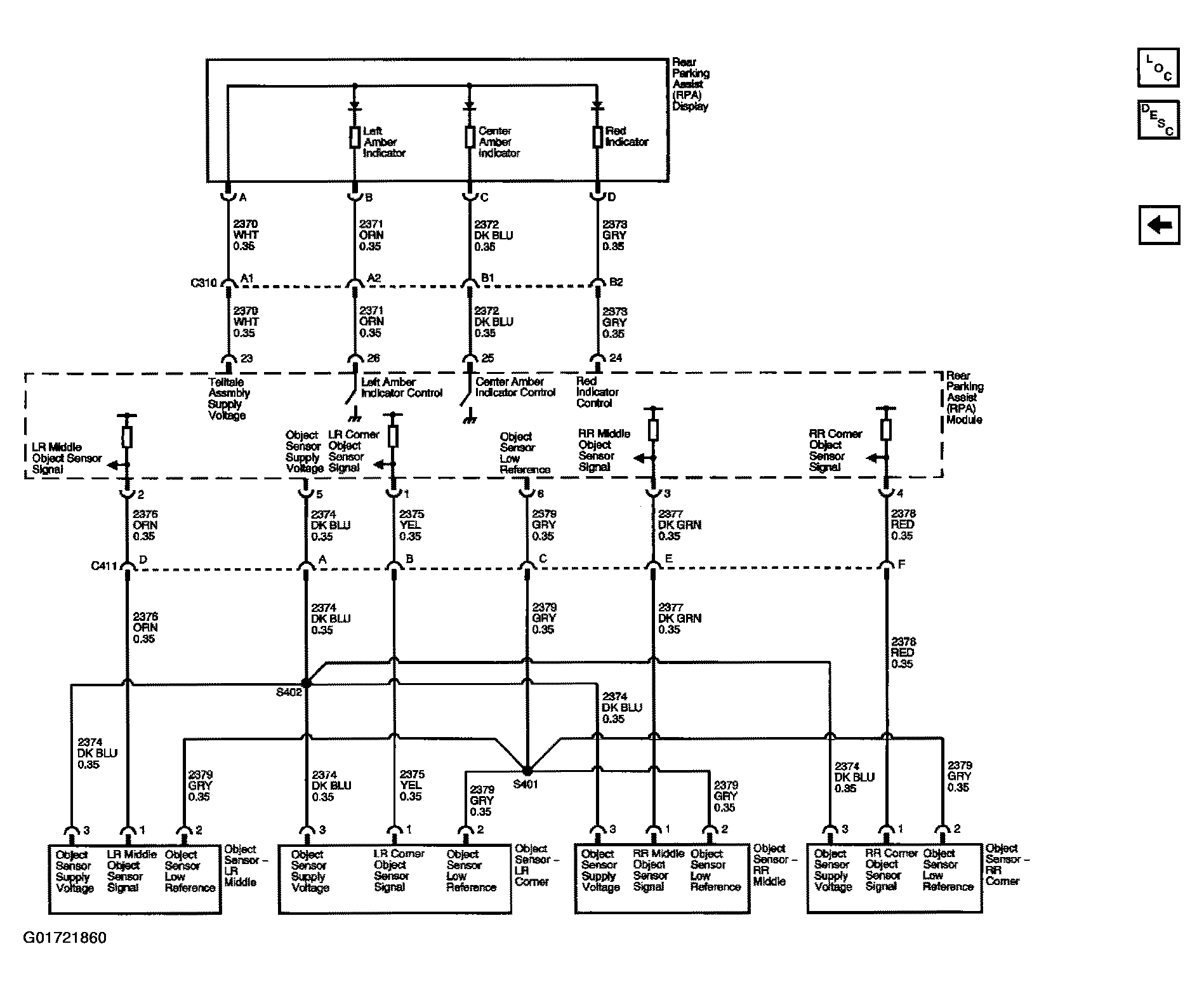

Fig 2: Rear Parking Assist Schematics (Object Sensors)

Courtesy of GENERAL MOTORS CORP.
