Home >> Pontiac >> 2002 >> Aztek AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostic Information and Procedures >> DTC C0141: Left TCS Solenoid #1 Circuit Malfunction; C0146: Left TCS Solenoid #2 Circuit Malfunction; C0151: Right TCS Solenoid #1 Circuit Malfunction; C0156: Right TCS Solenoid #2 Circuit Malfunction >> Test Description

Test Description

The numbers below refer to step numbers on the Diagnostic Table.

  1. 2. This step determines if the DTC is current.

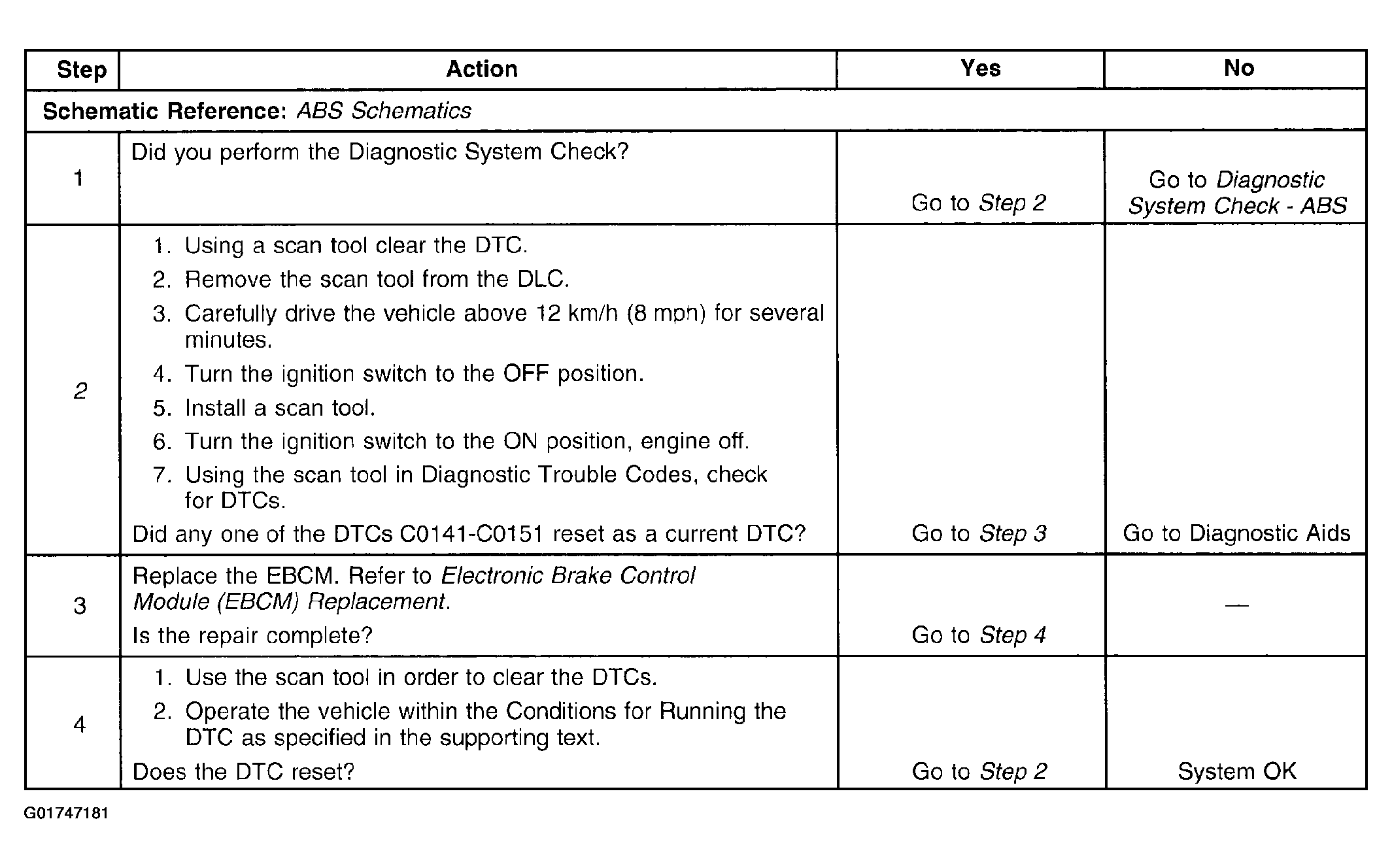

    Fig 1: DTC C0141-C0156
    G01747181Courtesy of GENERAL MOTORS CORP.
