Home >> Pontiac >> 2002 >> Aztek AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostic Information and Procedures >> DTC C0060: LF ABS Solenoid #1 Circuit Malfunction; C0065: LF ABS Solenoid #2 Circuit Malfunction; C0070: RF ABS Solenoid #1 Circuit Malfunction; C0075: RF ABS Solenoid #2 Circuit Malfunction; C0080: LR ABS Solenoid #1 Circuit Malfunction; C0085: LR ABS Solenoid #2 Circuit Malfunction; C0090: RR ABS Solenoid #1 Circuit Malfunction; C0095: RR ABS Solenoid #2 Circuit Malfunction >> Test Description

Test Description

The numbers below refer to step numbers on the Diagnostic Table.

  1. 2.This step determines if the DTC is current.

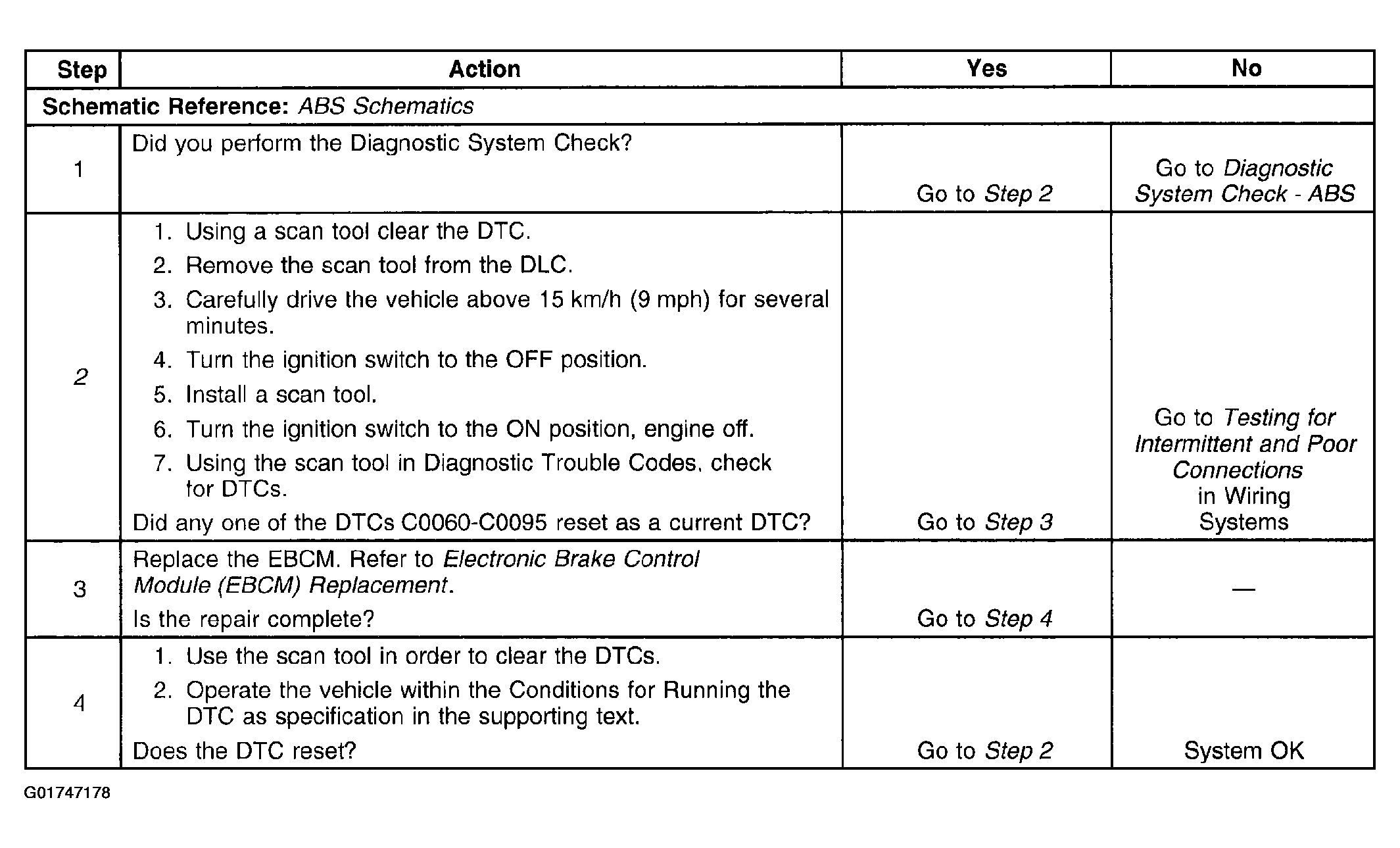

    Fig 1: DTC C0060-C0095
    G01747178Courtesy of GENERAL MOTORS CORP.
