Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Diagrams >> Electrical Diagrams

Electrical Diagrams

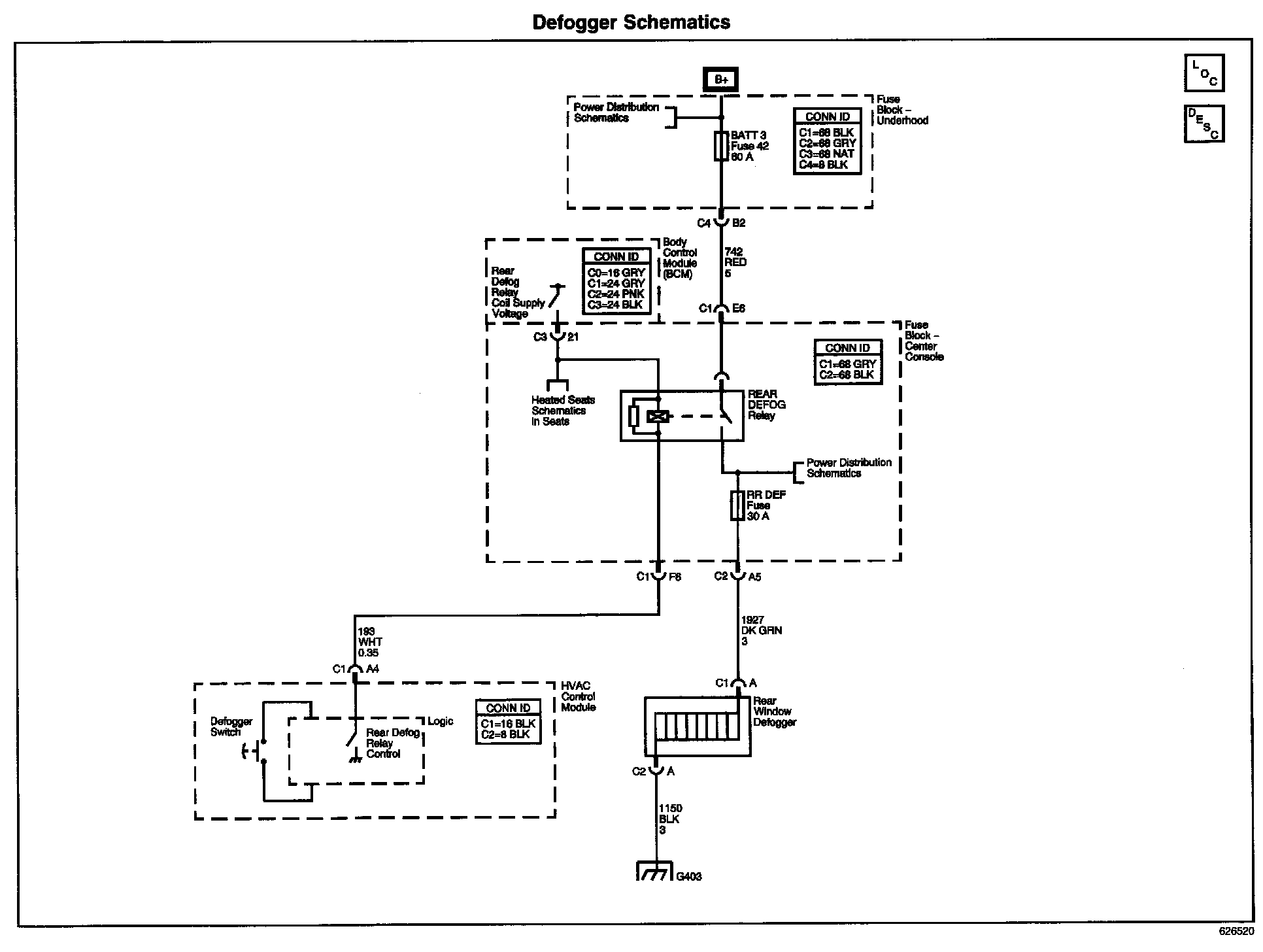

Defogger Schematics:
