Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Diagrams >> Transfer Case Assembly

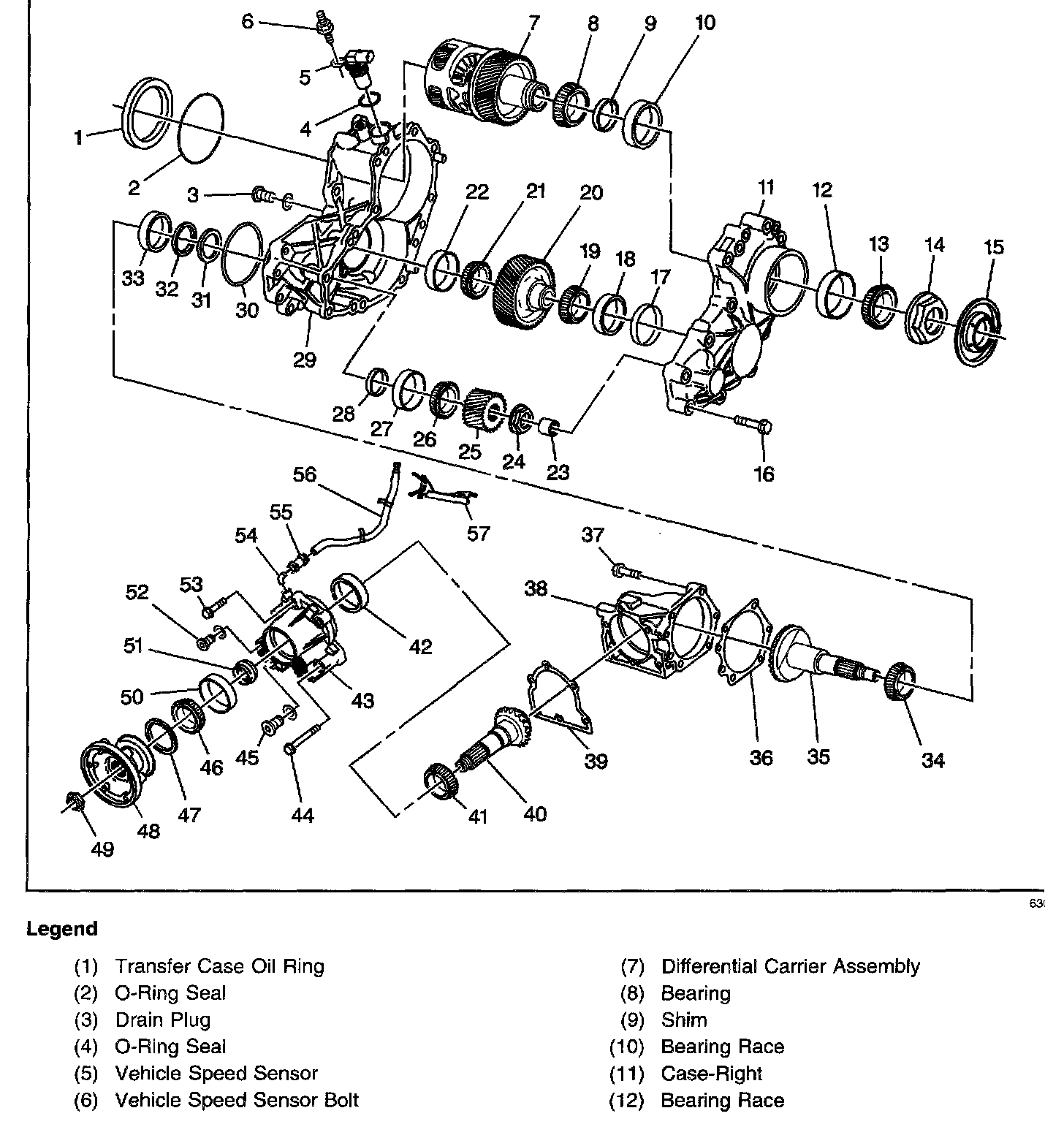

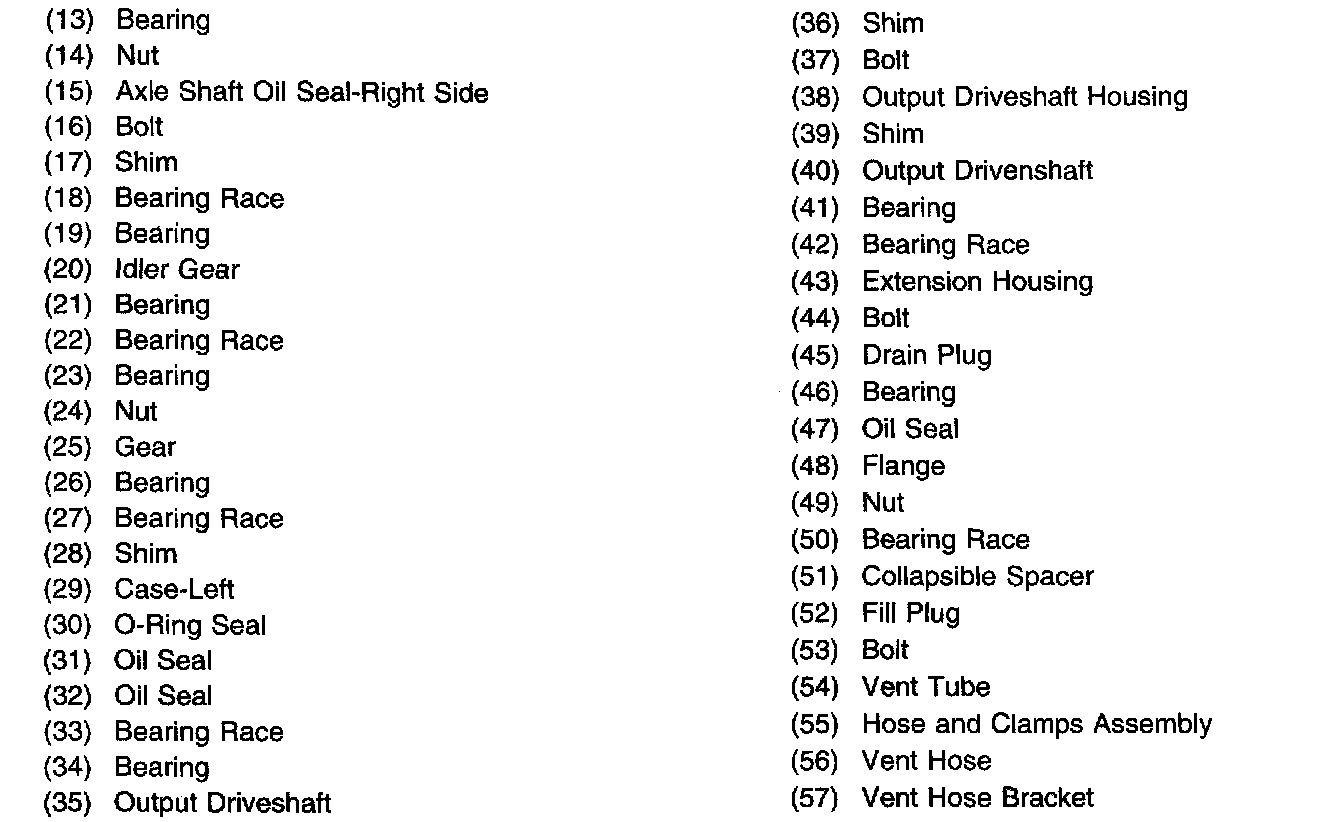

Transfer Case Assembly





Part 1 of 2





Part 2 of 2

Transfer Case Assembly
