Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Diagrams >> Wheel Drive Shafts Disassembled Views (FWD)

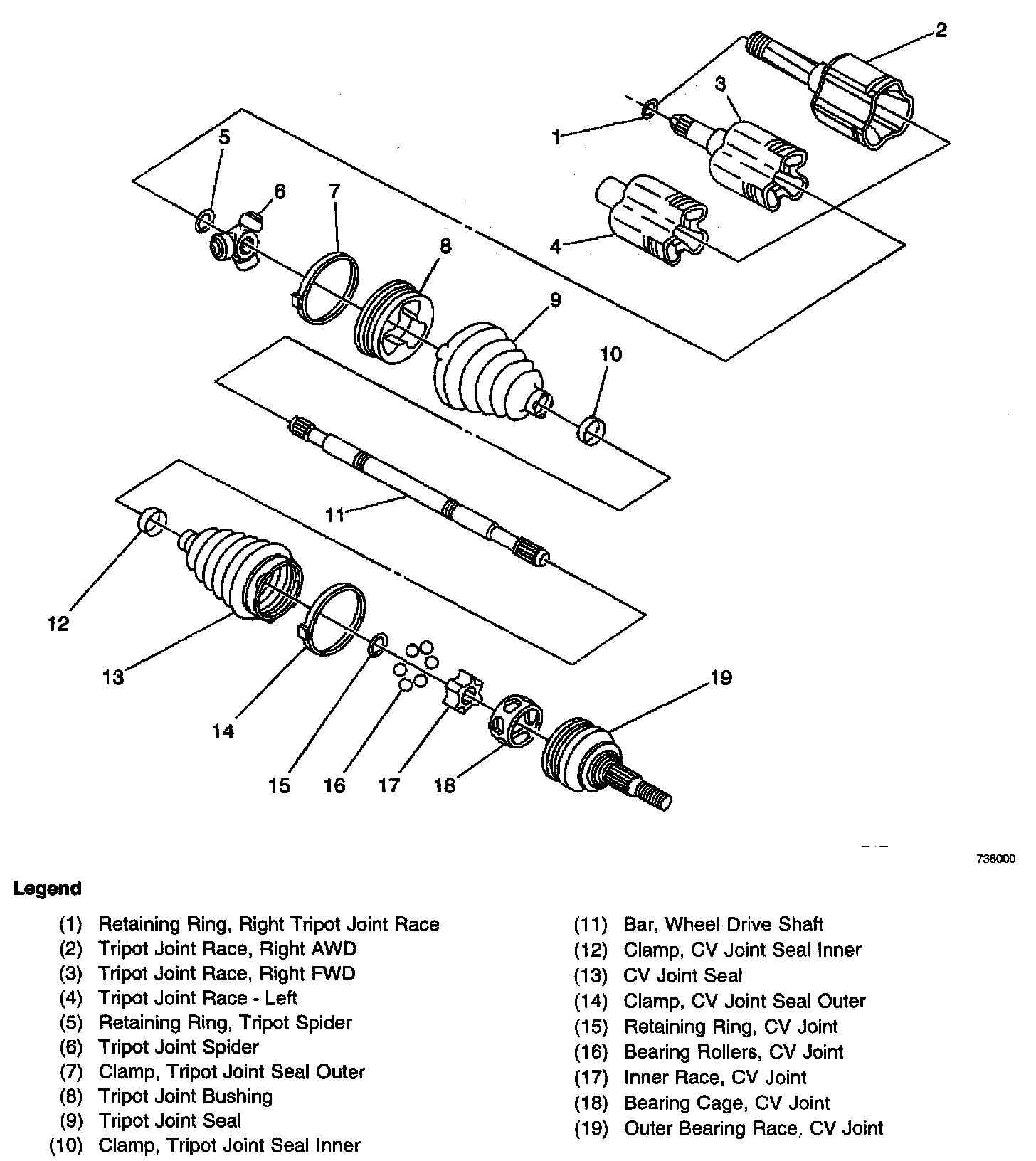

Wheel Drive Shafts Disassembled Views (FWD)
