32. Differential Carrier Internal Gear Removal

Differential Carrier Internal Gear Removal

^ Tools Required
- J 28585 Snap Ring Remover

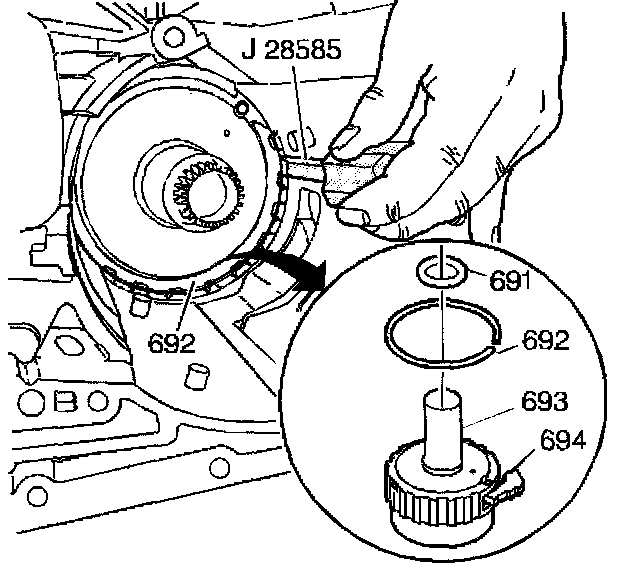

1. Remove the thrust washer (691) from the differential carrier internal gear.
2. Use J 28585 or a large screwdriver in order to remove the differential carrier internal gear snap ring (692).





3. Lift the differential carrier internal gear assembly (693) out of the case by depressing the park pawl assembly in order to clear the case.
