19. Case Cover and Gaskets Disassemble

Case Cover and Gaskets Disassemble

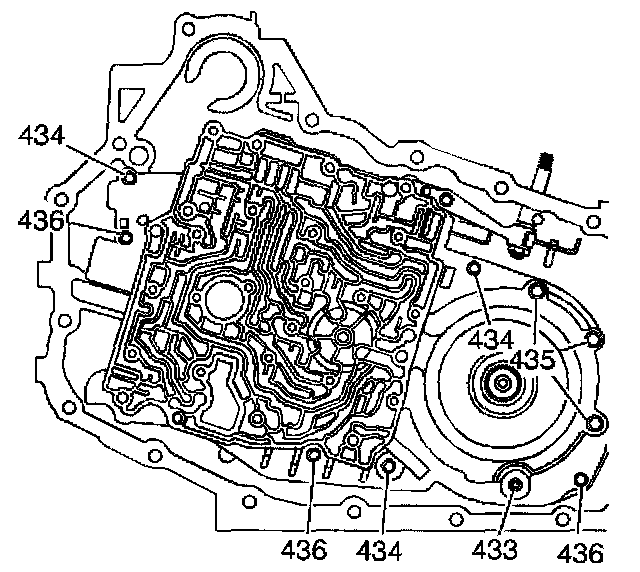

1. Remove the indicated case cover bolts (433-436).





Important: Be sure to hold the manual valve (404) in place.

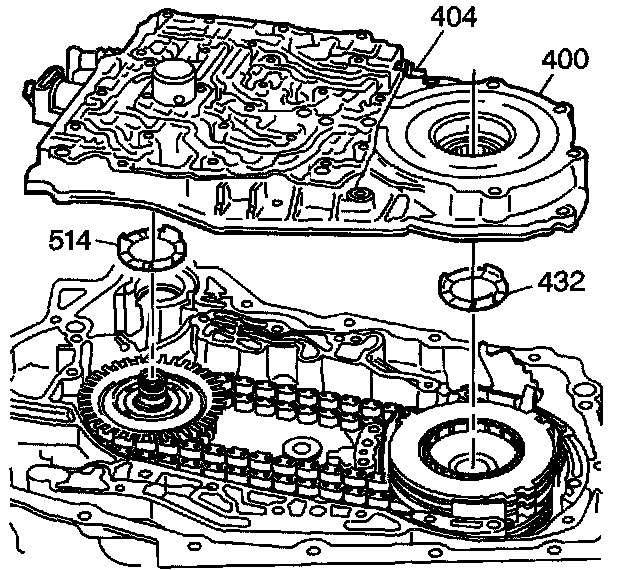

2. Lift the case cover assembly (400) off of the case.
3. Remove the thrust washer (432).

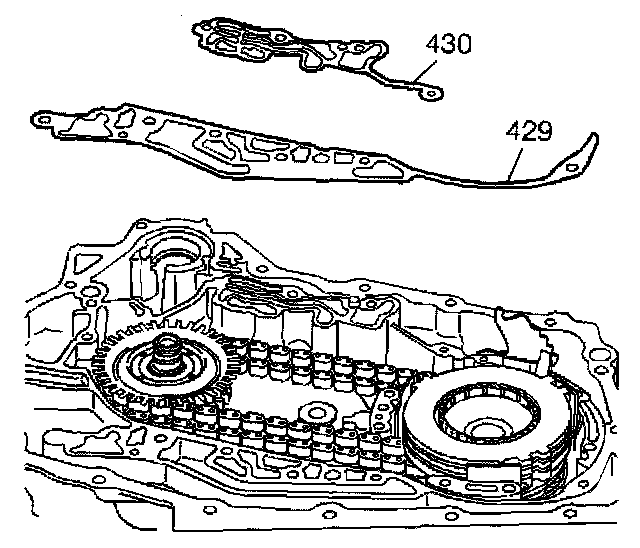

4. Remove the upper (430) and the lower (429) case cover gaskets.
