101. Right Drive Shaft Oil Seal Assemble (FWD Only)

Right Drive Shaft Oil Seal Assemble (FWD Only)

^ Tools Required
- J 29130 Axle Seal Installer
- J 8092 Driver Handle

Notice: Install the seal onto the tool before installing into the case to prevent damage to the seal.

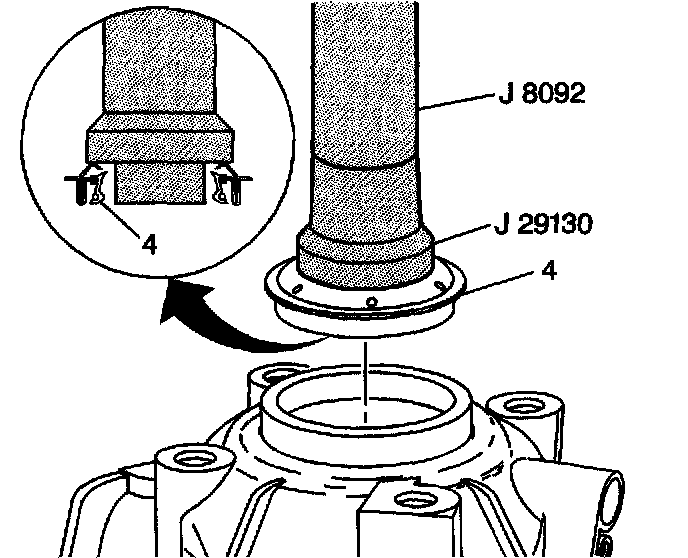

Important: Inspect the axle oil seal assembly (4). Be sure that the seal was not damaged during assembly. Check that the garter spring was not dislodged. Use J 29130 and J 8092 in order to install the axle oil seal assembly (4) on the case extension assembly.
