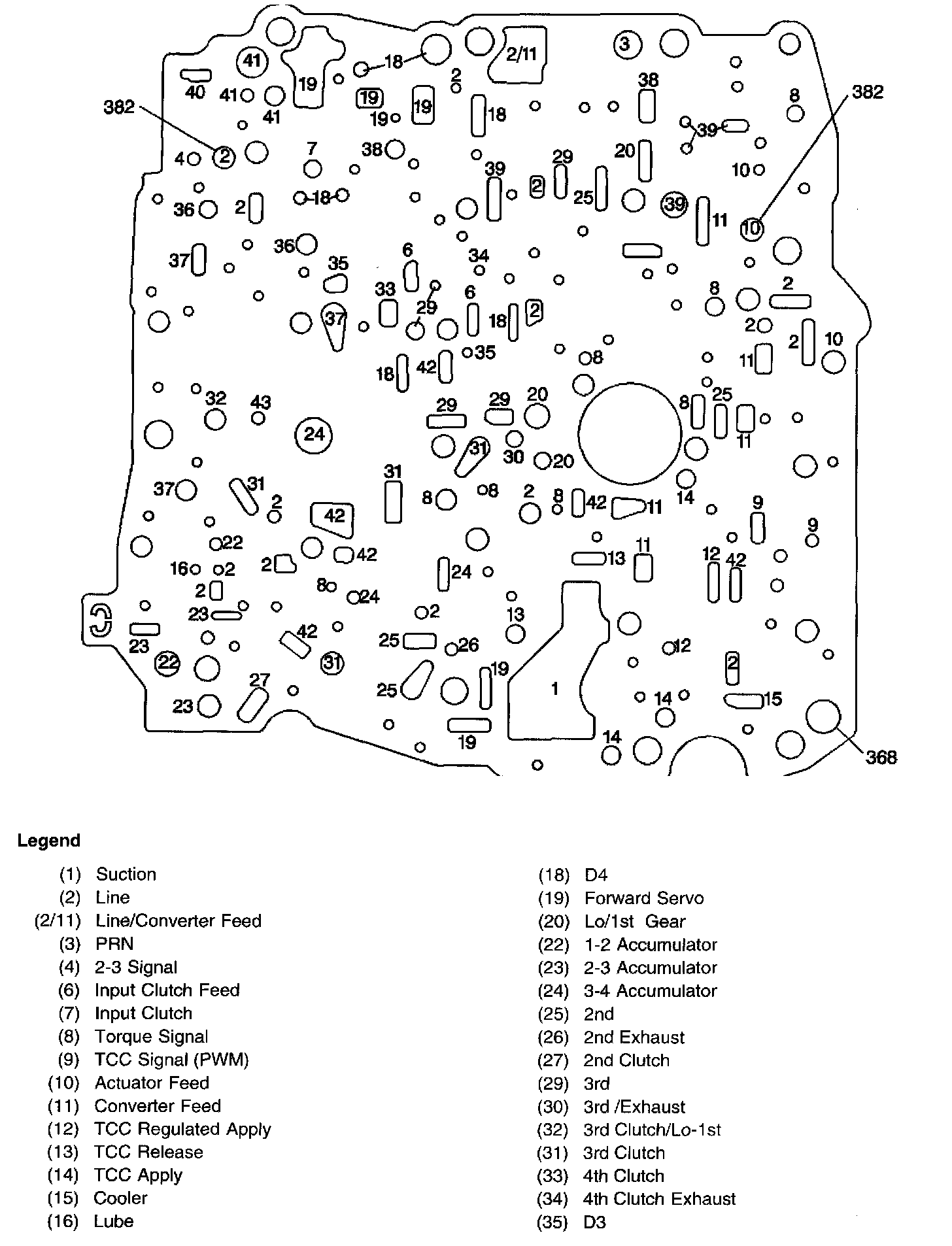

Spacer Plate to Case Cover Gasket Fluid Passages





Part 1 of 2





Part 2 of 2

Spacer Plate to Case Cover Gasket Fluid Passages
