Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Exploded Views >> Fluid Passages >> Case Cover Fluid Passages (Control Valve Body Side)

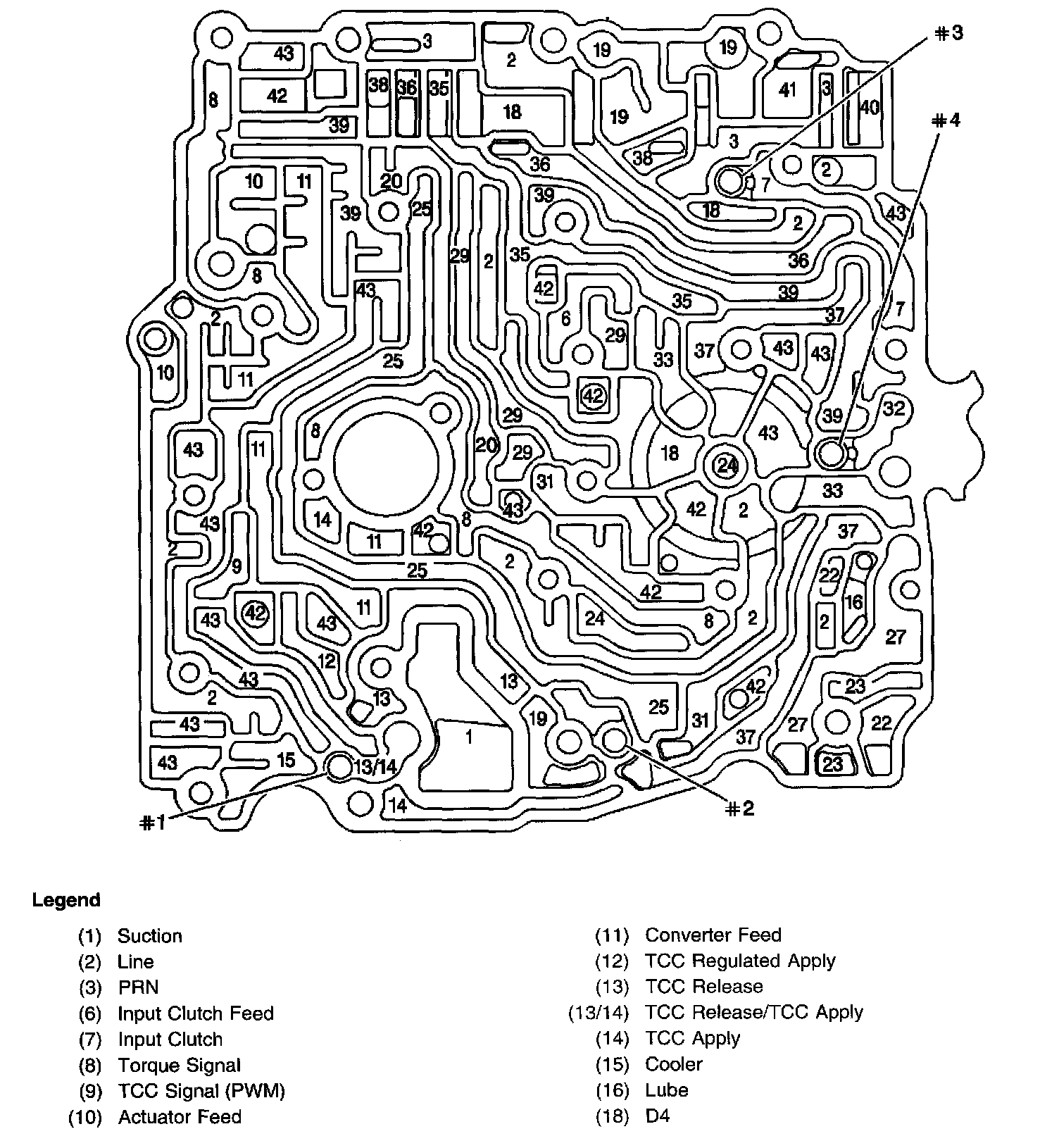

Case Cover Fluid Passages (Control Valve Body Side)





Part 1 of 2





Part 1 of 2

Case Cover Fluid Passages (Control Valve Body Side)
