Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Exploded Views >> Fluid Passages >> 1-2 and 2-3 Accumulator Housing Fluid Passages

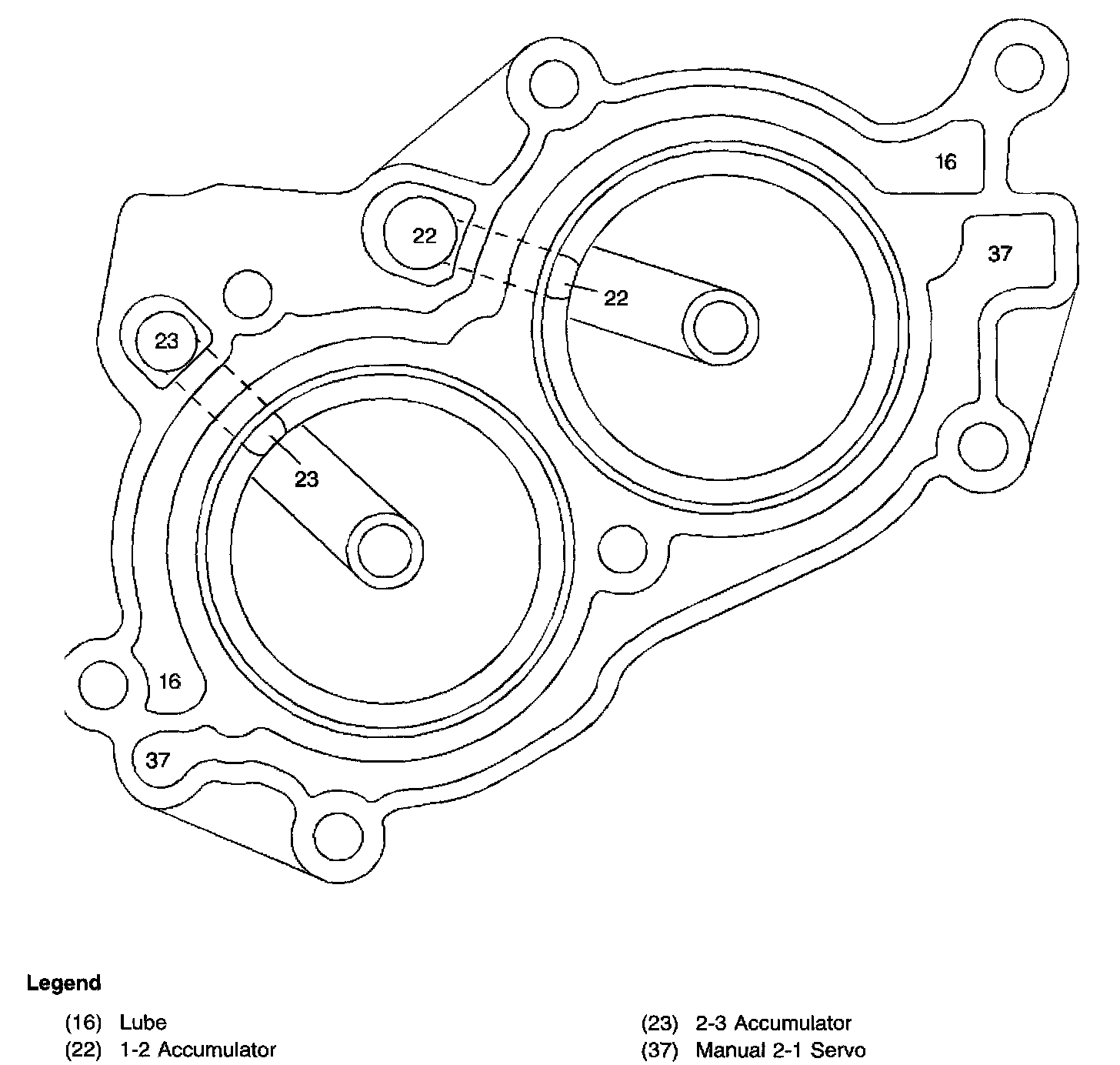

1-2 and 2-3 Accumulator Housing Fluid Passages
