Coil Spring Replacement (Front Wheel Drive With Axle)

Removal Procedure





Caution: When removing the rear springs, do not use a twin-post type hoist. The swing arch tendency of the rear axle assembly when certain fasteners are removed may cause It to slip from the hoist which may cause personal injury.

1. Raise and support the vehicle.
2. Use the utility stand in order to support the center of the rear axle.
3. Remove the shock absorber lower bolts and nuts.
4. Remove the rear axle tie rod from the rear axle.

Notice: Do not suspend the rear axle by the brake hoses. Damage to the brake hoses may result.

5. Use the utility stand in order to lower the rear axle.

Notice: Refer to Chipping or Scratching the Coating on a Spring in Service Precautions.

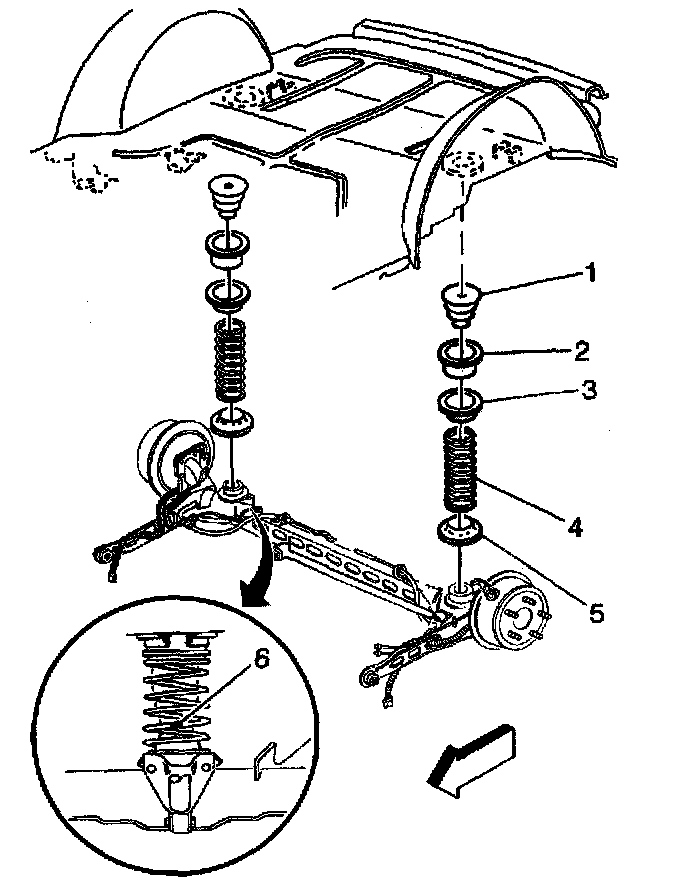

6. Remove the springs (4) and the insulators (5).

Installation Procedure

Notice: Refer to Chipping or Scratching the Coating on a Spring in Service Precautions.





Important: Position the spring so that the paint stripe (6) is facing rearward and centered to the shock absorber.

1. Install the springs (4) and the insulators (5) to the rear axle.
2. Use the utility stand in order to raise the rear axle.
3. Install the rear axle tie rod to the rear axle.
4. Install the shock absorbers to the rear axle.
5. Remove the utility stand.
6. Lower the vehicle.
