Suspension Control ( Automatic - Electronic ): Diagrams

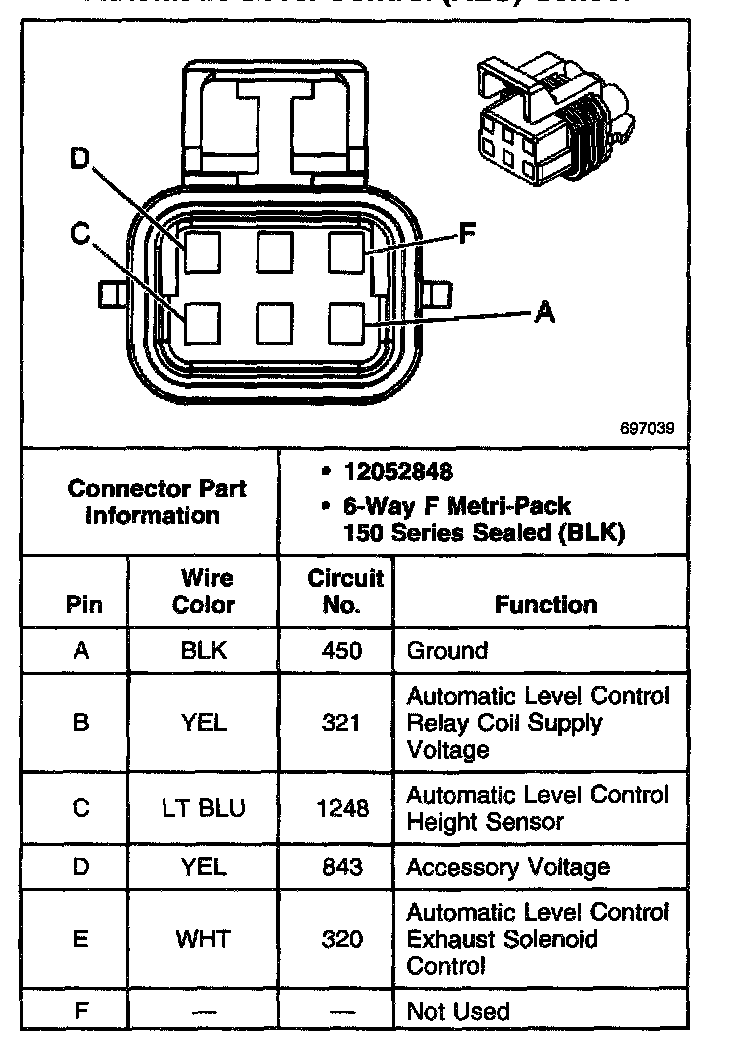

Automatic Level Control (ALC) Sensor





Automatic Level Control (ALC) Inflator Time Relay





Automatic Level Control (ALC) Compressor Relay





Automatic Level Control (ALC) Compressor





Automatic Level Control (ALC) Solenoid Valve





Automatic Level Control (ALC) Inflator Air Switch
