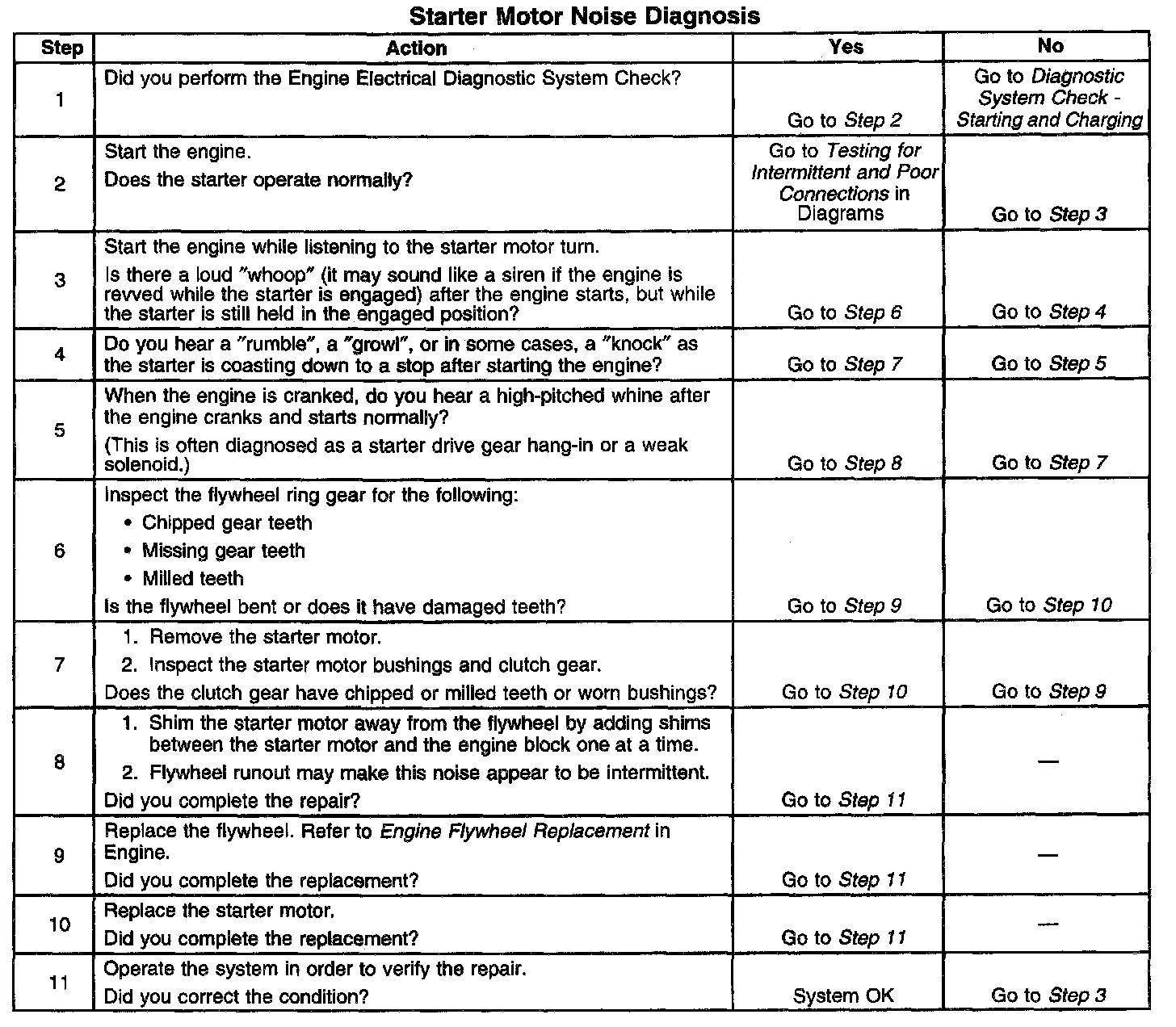

Starter Motor Noise Diagnosis
DIAGNOSTIC AIDS^ Inspect the flywheel ring gear for damage or unusual wear.
^ Shim the starter as required.
^ In order to add pinion to ring gear clearance a full size shim must be used. Do not shim only one starter mounting bolt. There are three shims available in different shapes, for clearance, all are 1 mm (0.039 in.) thick.
TEST
