Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Fuse Block - Underhood Connector - C1

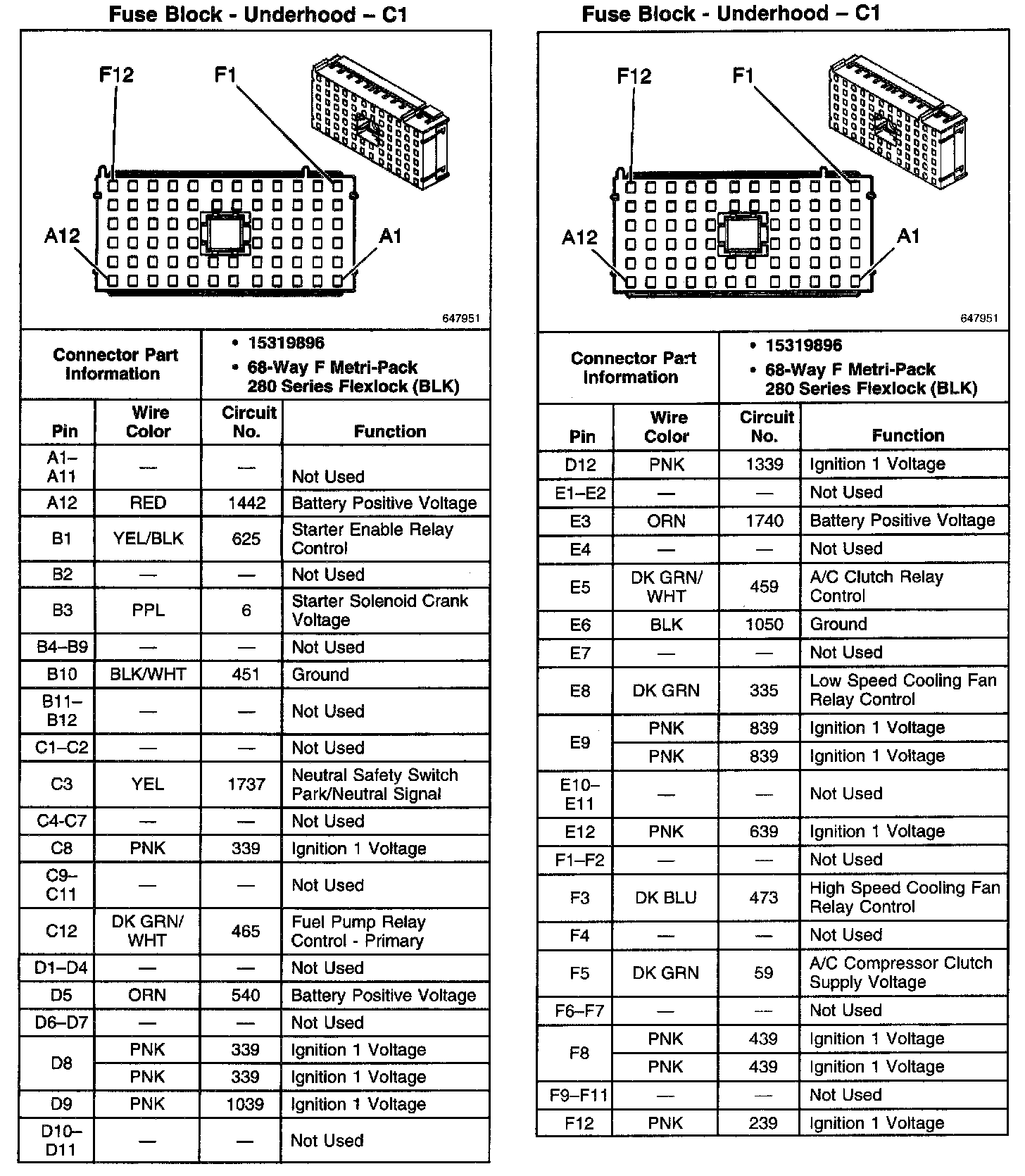

Fuse Block - Underhood Connector - C1

Fuse Block - Underhood - C1:
