Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Hose Routing Diagram

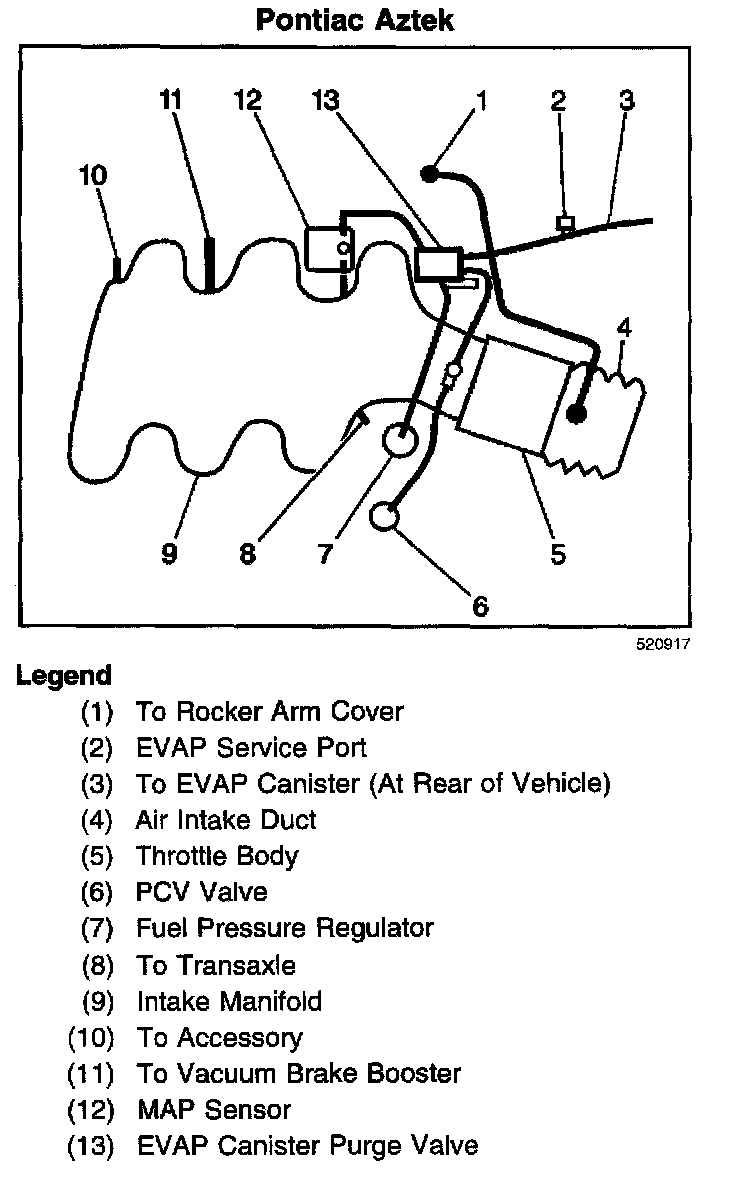

Emission Hose Routing Diagram

Pontiac Aztek:
