Pontiac
>>
2001
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Controls
>>
Automatic Transmission References
Automatic Transmission References

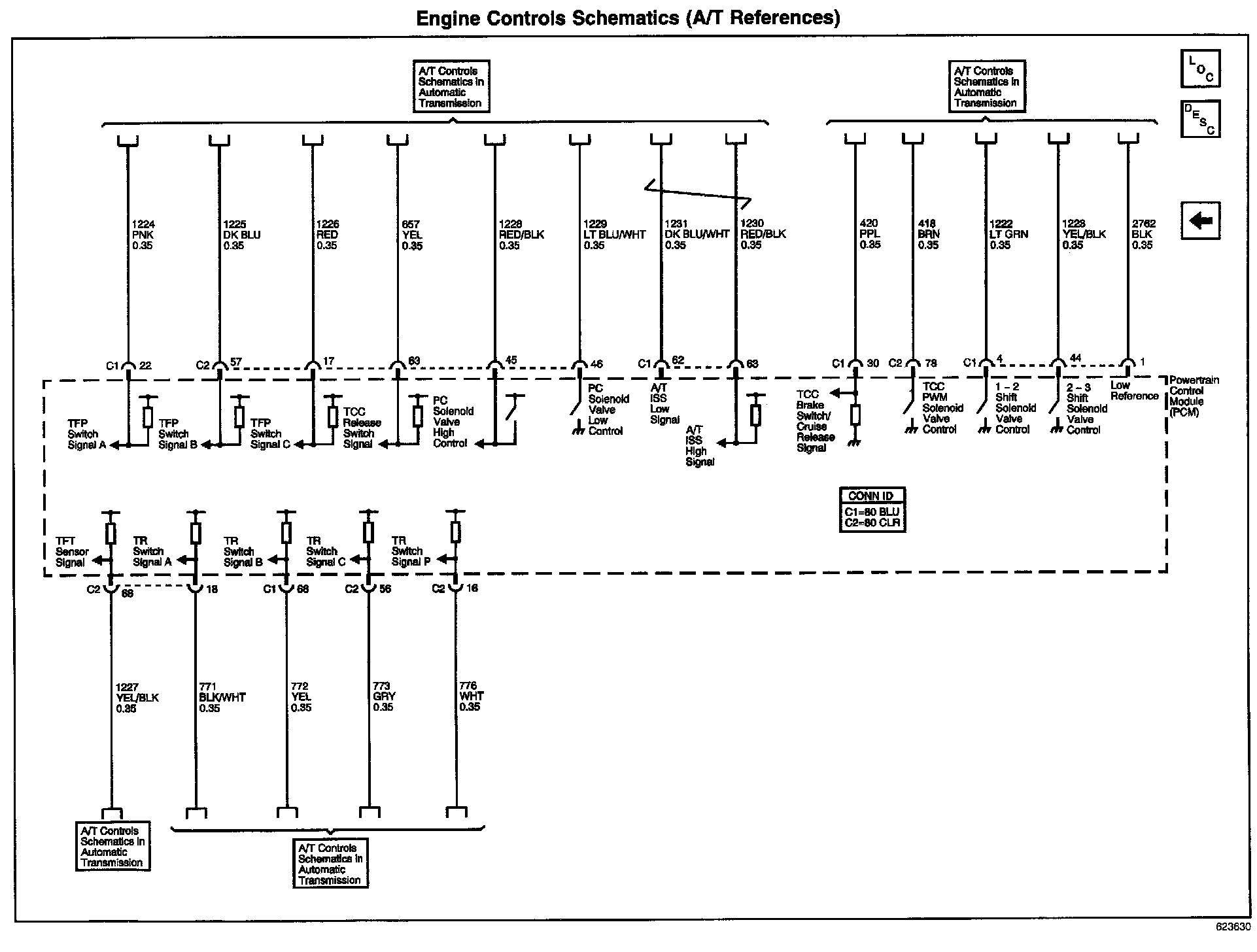

Engine Controls Schematics: A/T Reference:
