G401

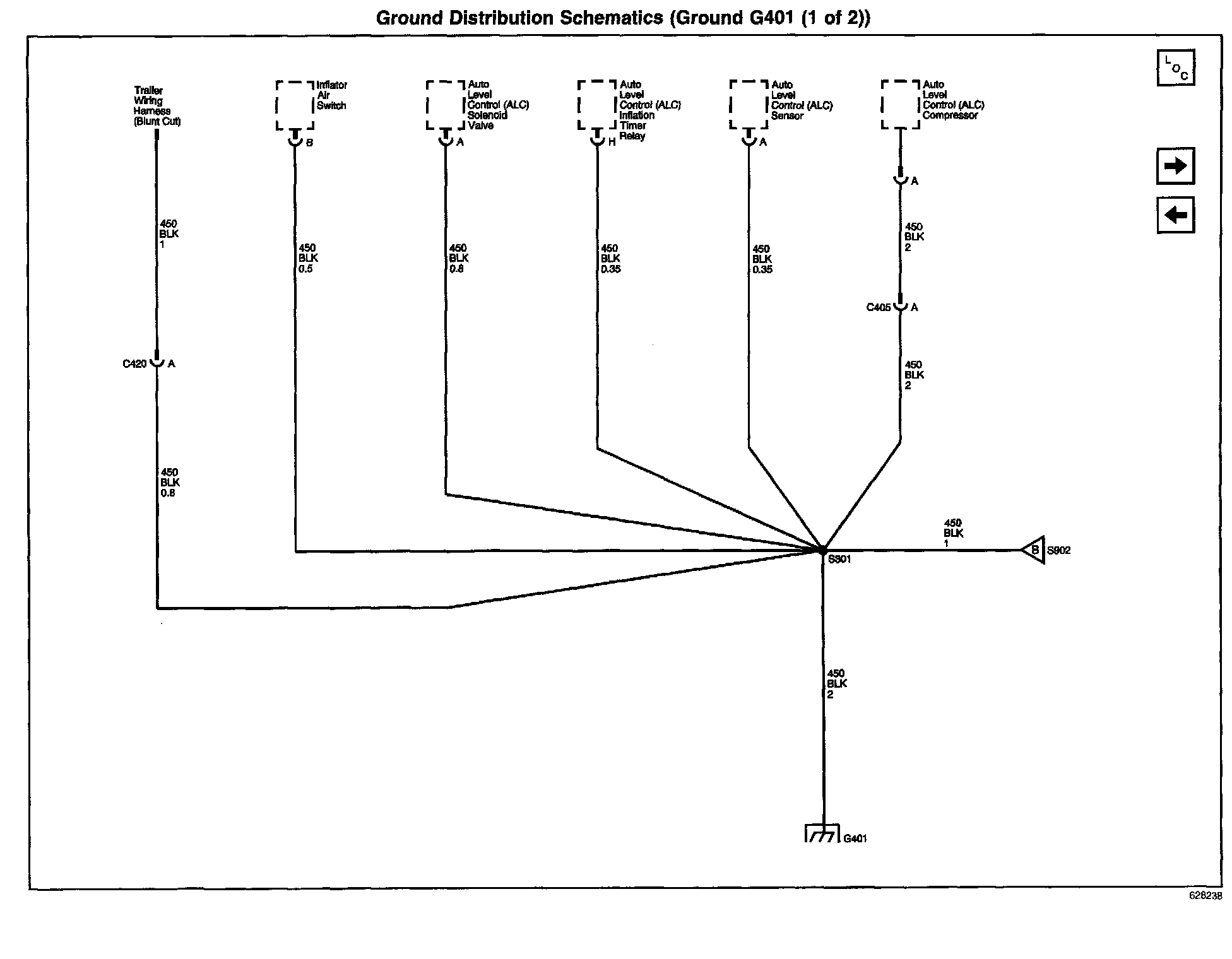

Ground Distribution Schematics: Ground G401 (Part 1 of 2):

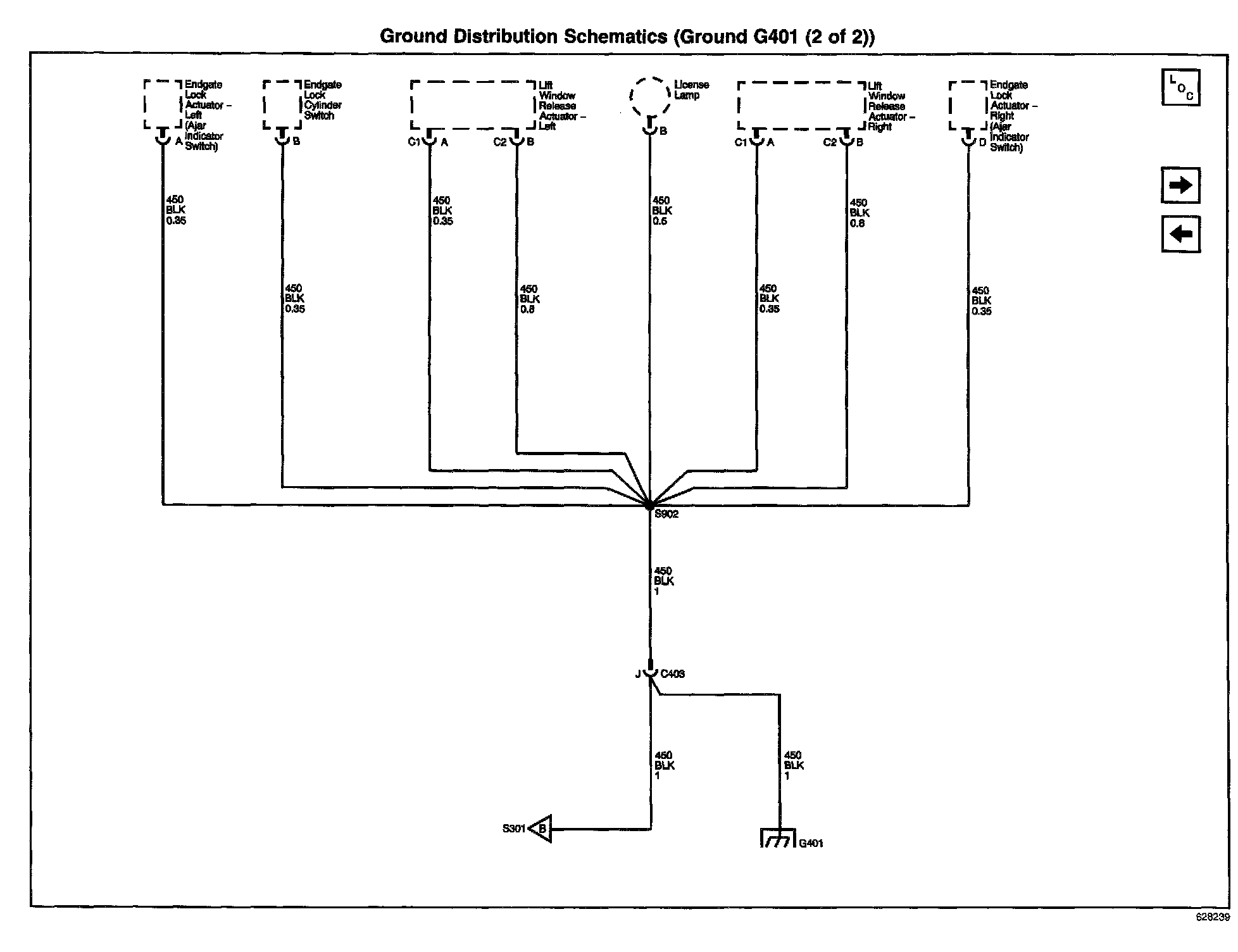

Ground Distribution Schematics: Ground G401 (Part 2 of 2):

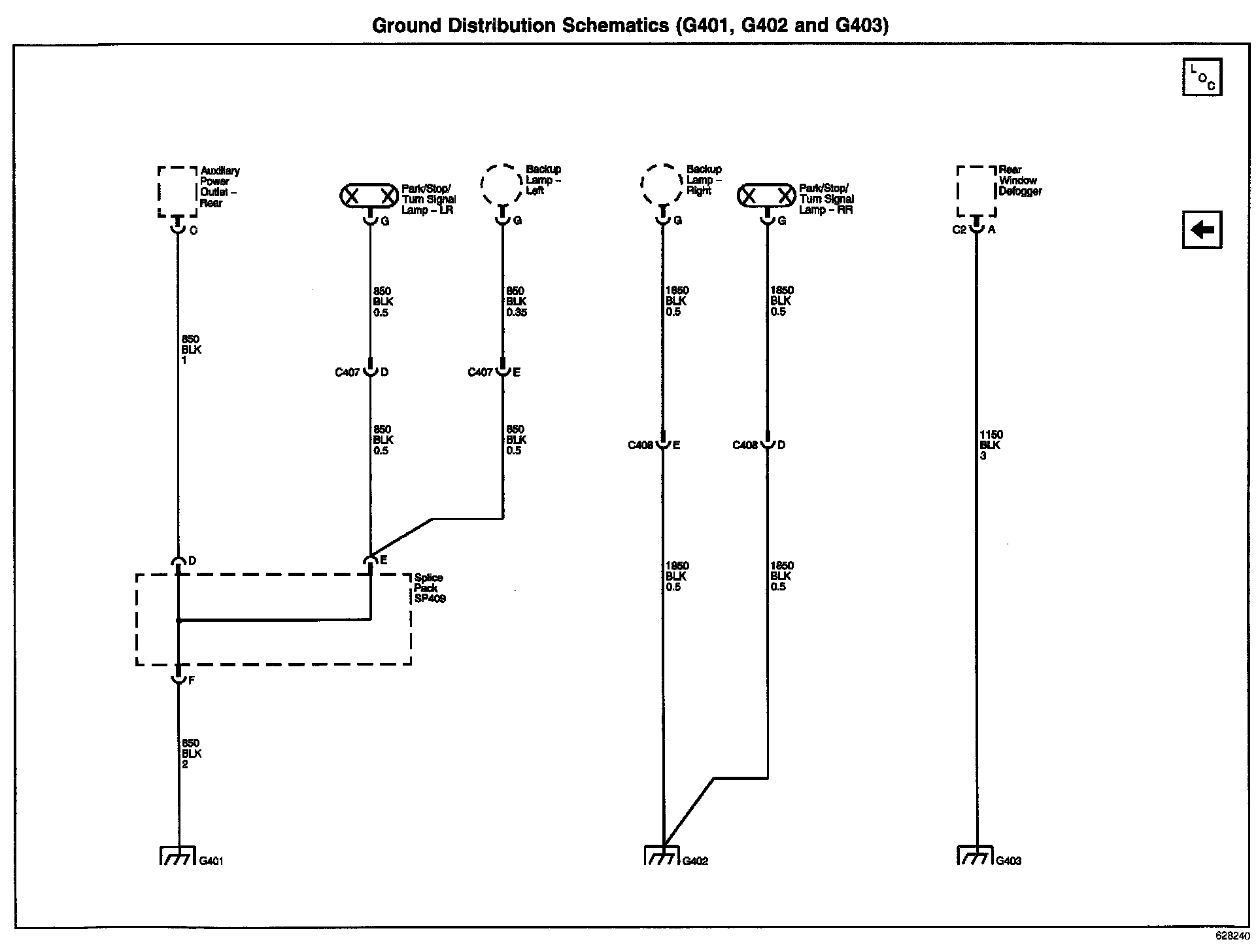

Ground Distribution Schematics: G401, G402 and G403:
