Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> G100 - G199 >> G111

G111

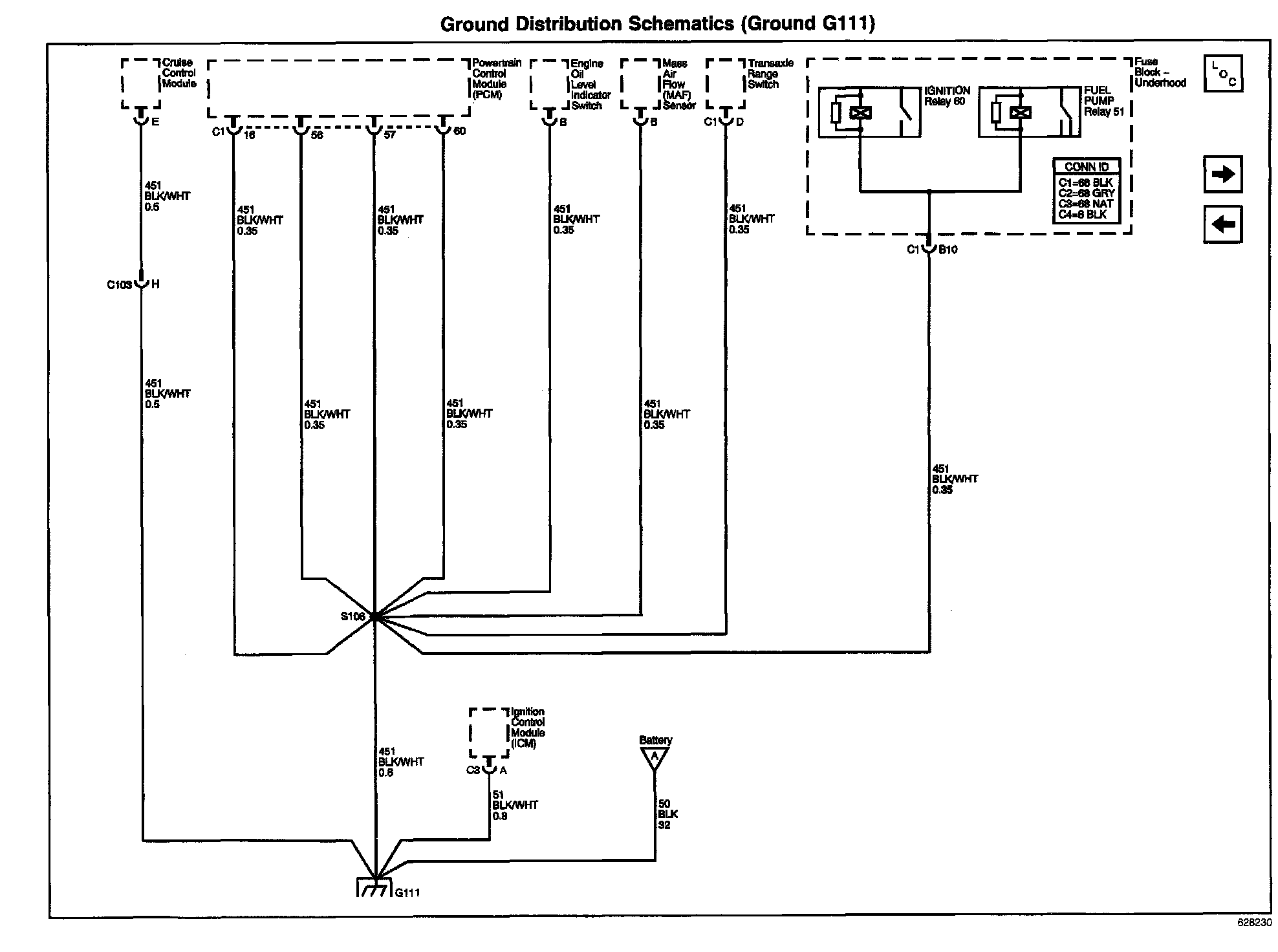

Ground Distribution Schematics: Ground G111:
