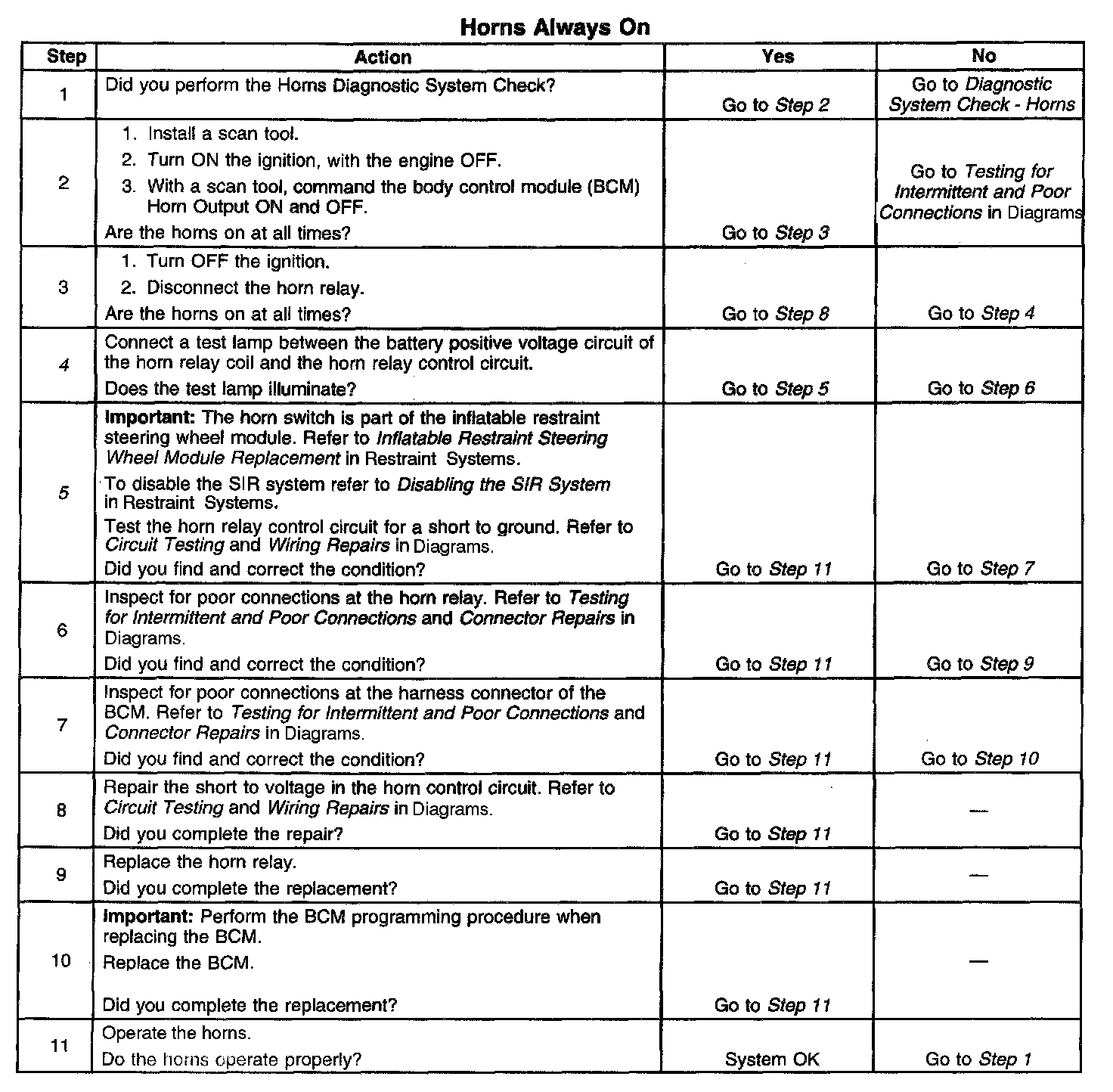

Horns Always On

TEST DESCRIPTION

Steps 1-11:

The number(s) below refer to the step number(s) on the diagnostic table.
4. Tests if ground is constantly being applied to the horn relay.
5. The horn relay control circuit includes the horn switch. The horn switch is part of the inflatable restraint steering wheel module. The horn switch must be tested for a short to ground when testing the relay control circuit.
