Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Horn Relay >> Diagrams >> Electrical Diagrams

Electrical Diagrams

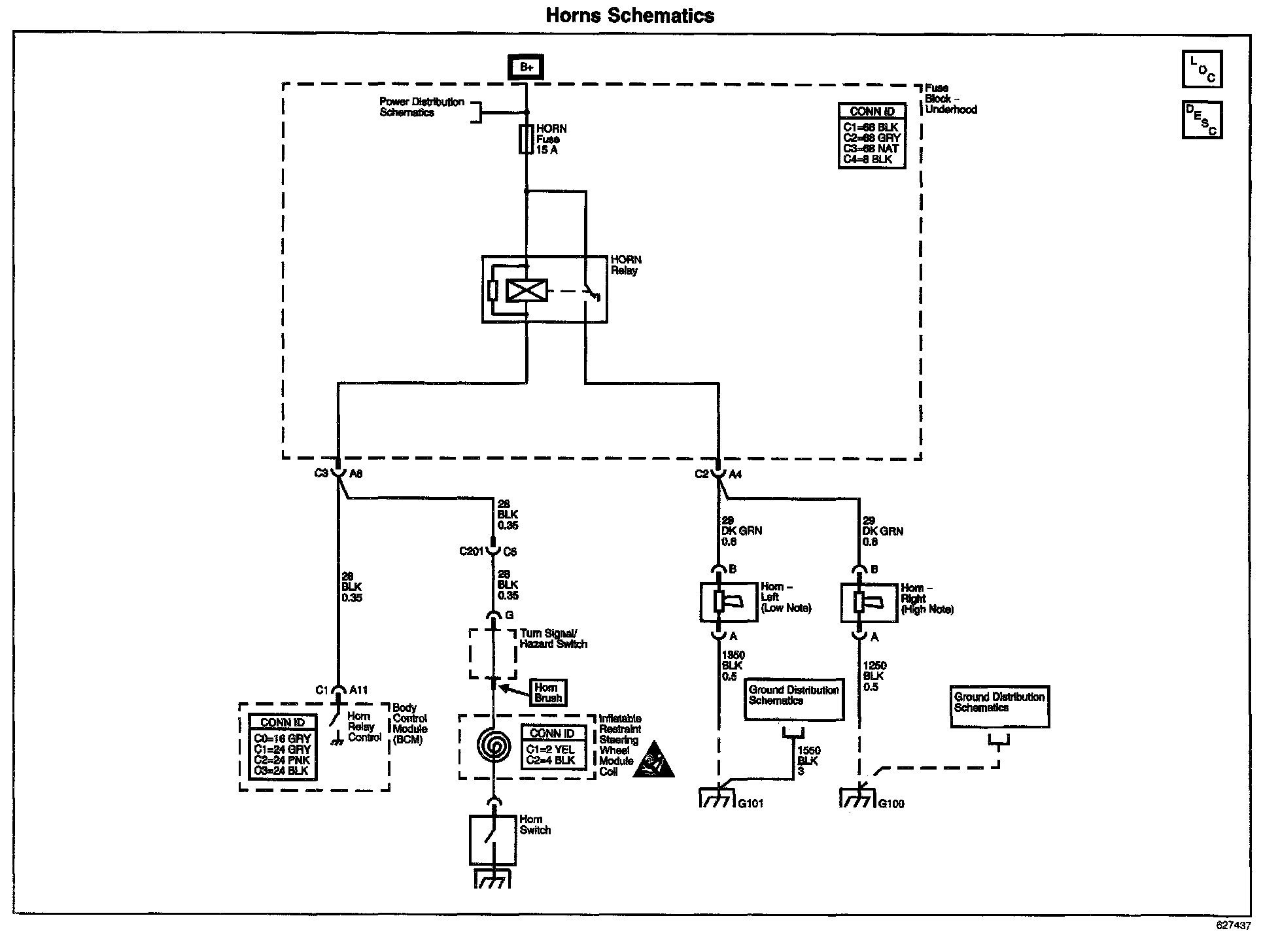

Horns Schematics:
