Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> Switches and I/P Courtesy Lamps

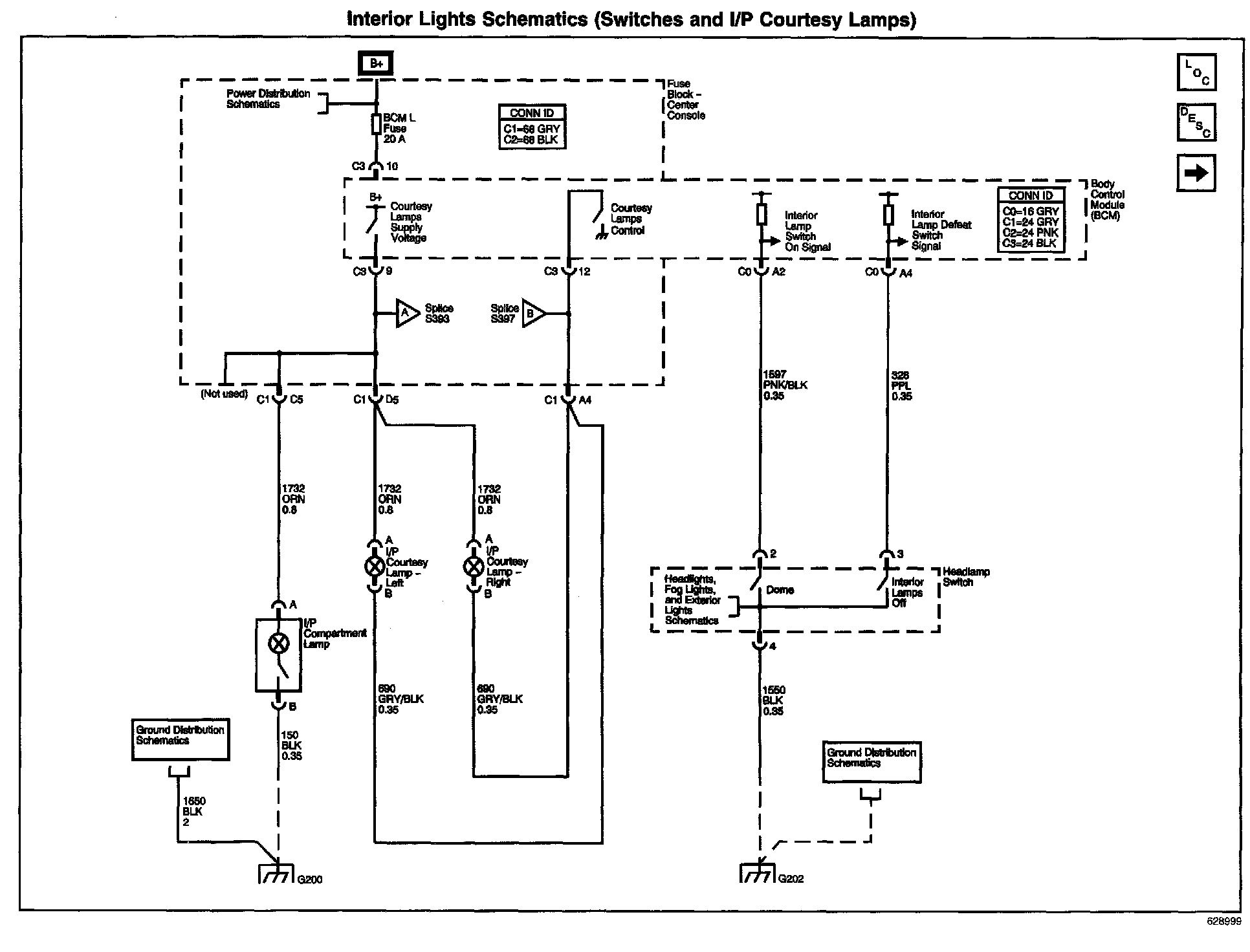

Switches and I/P Courtesy Lamps

Interior Lights Schematics: Switches And I/P Courtesy Lamps:
