Pontiac
>>
2001
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster Schematics
>>
Indicators
Indicators

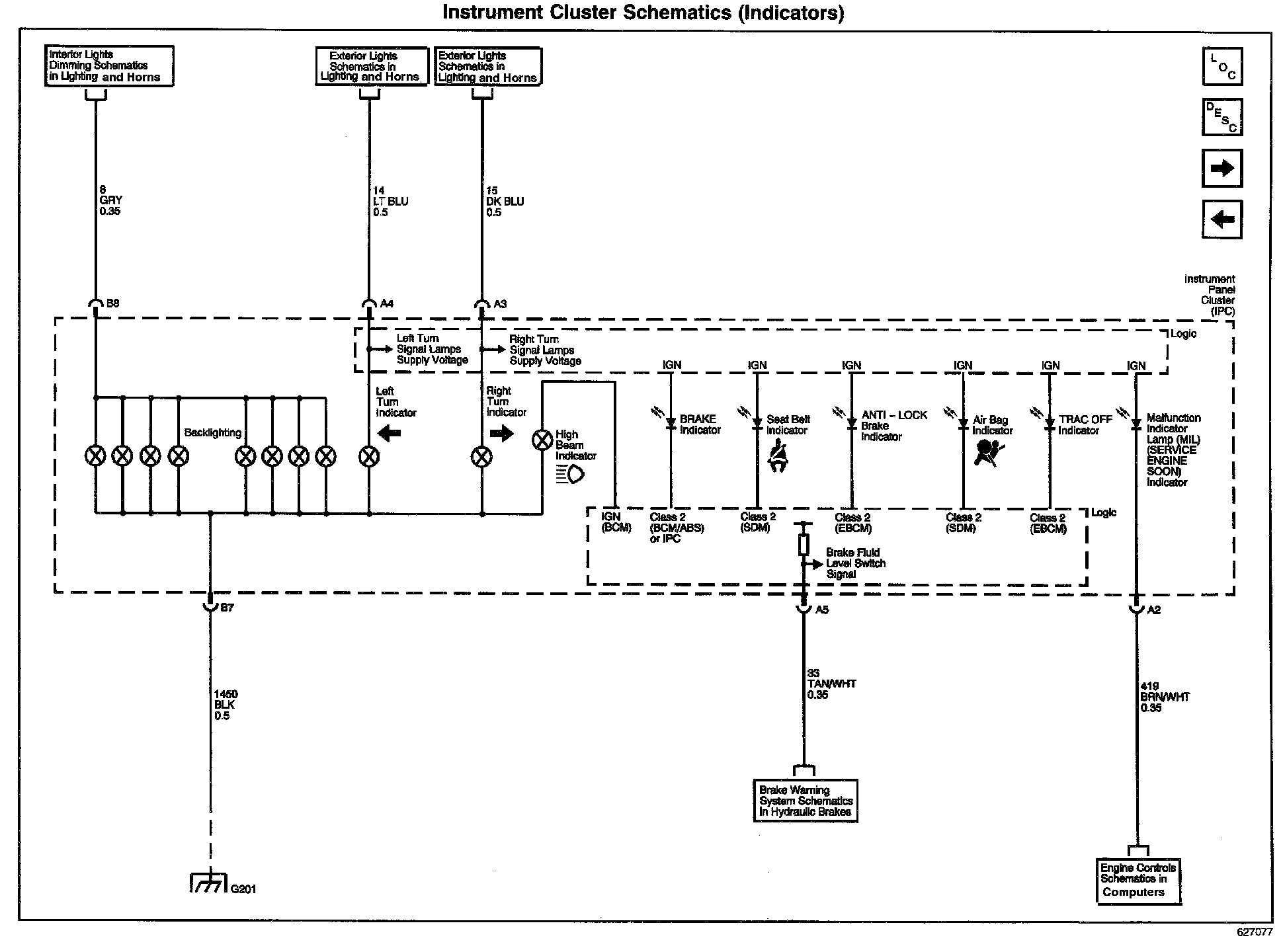

Instrument Cluster Schematics: Indicators:
