Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Instrument Cluster Schematics >> Gauges

Gauges

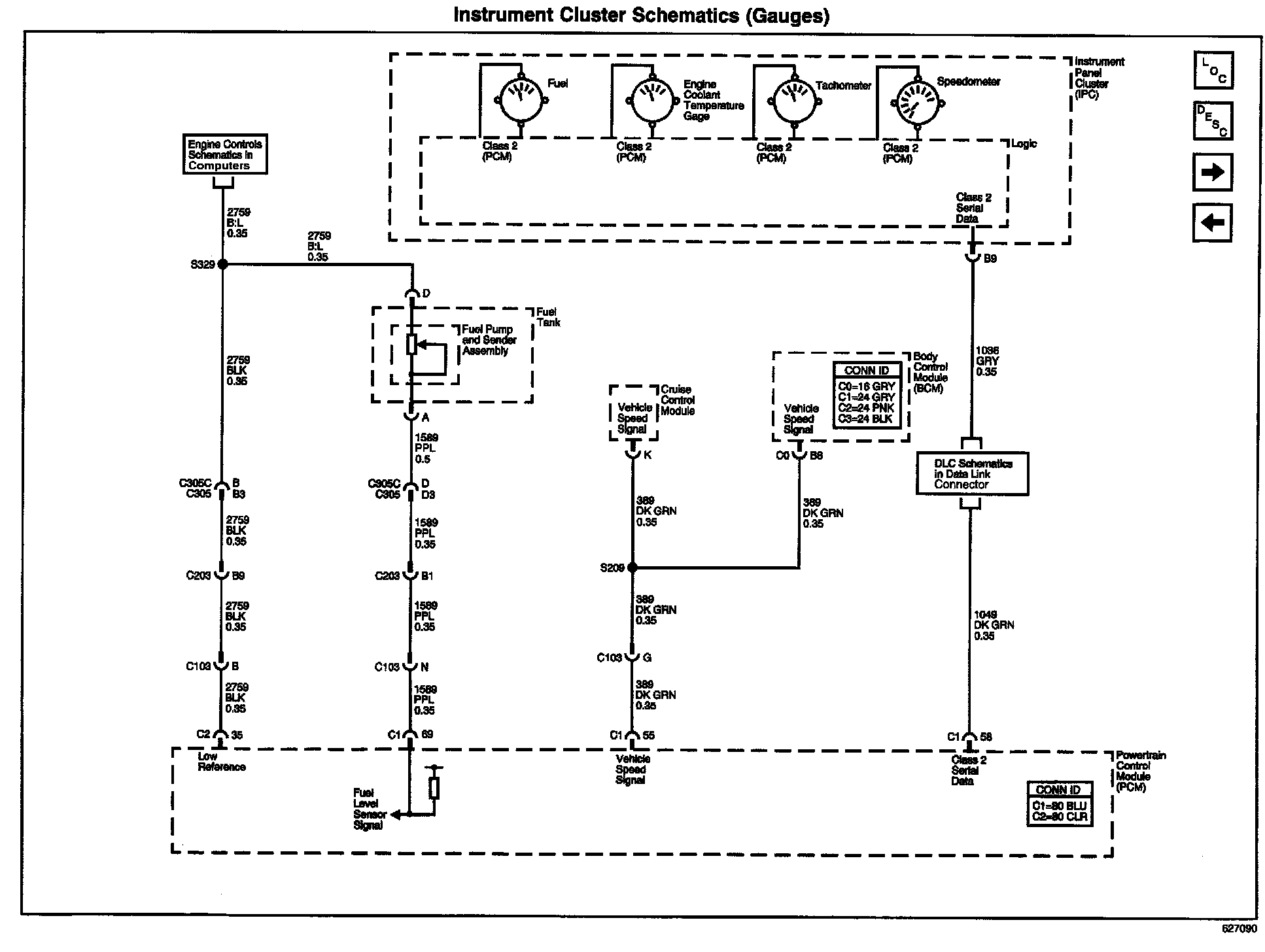

Instrument Cluster Schematics: Gauges:
