Instrument Panel, Gauges and Warning Indicators: Application and ID

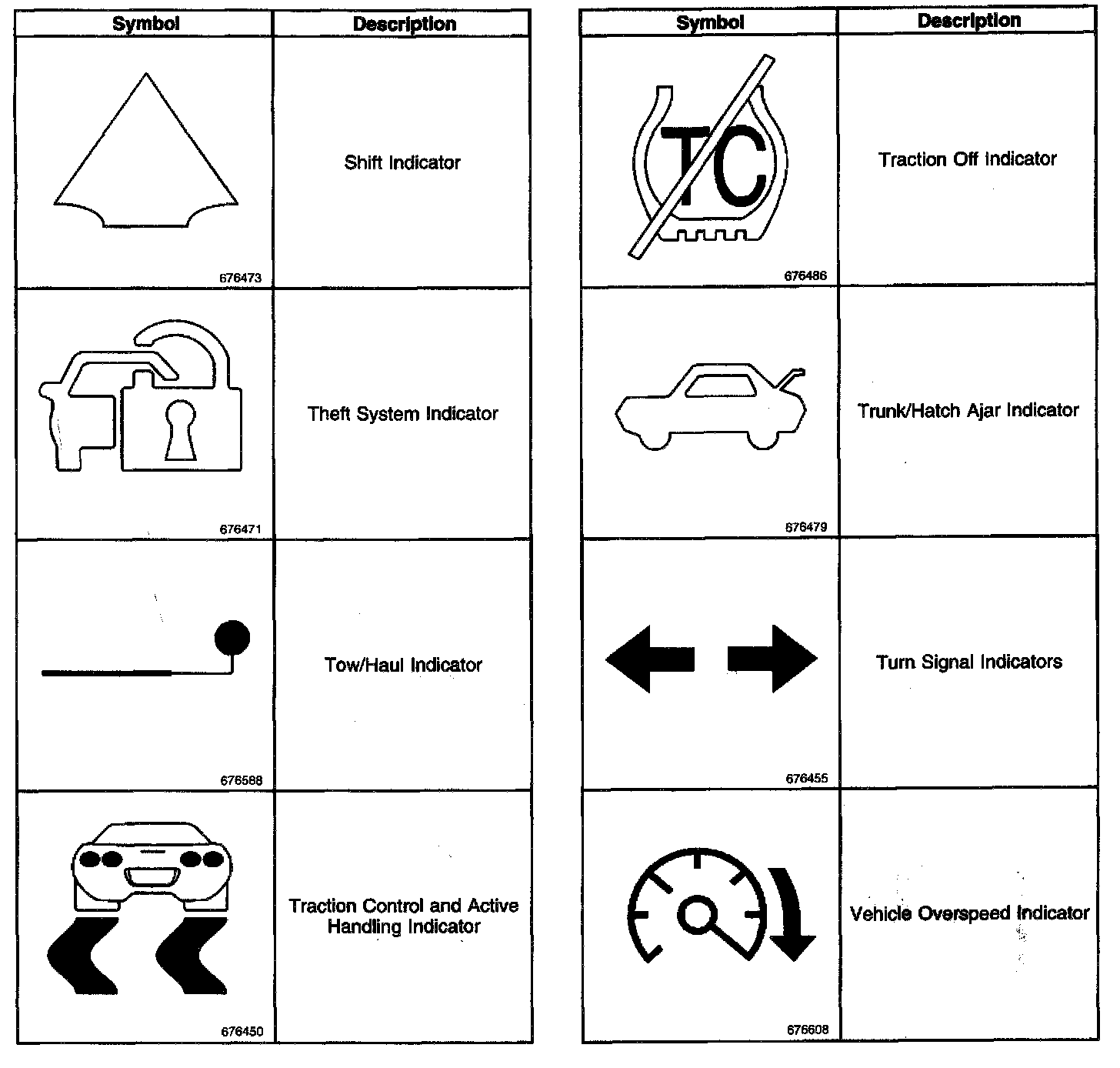

Indicator Symbols (Part 1 Of 5):

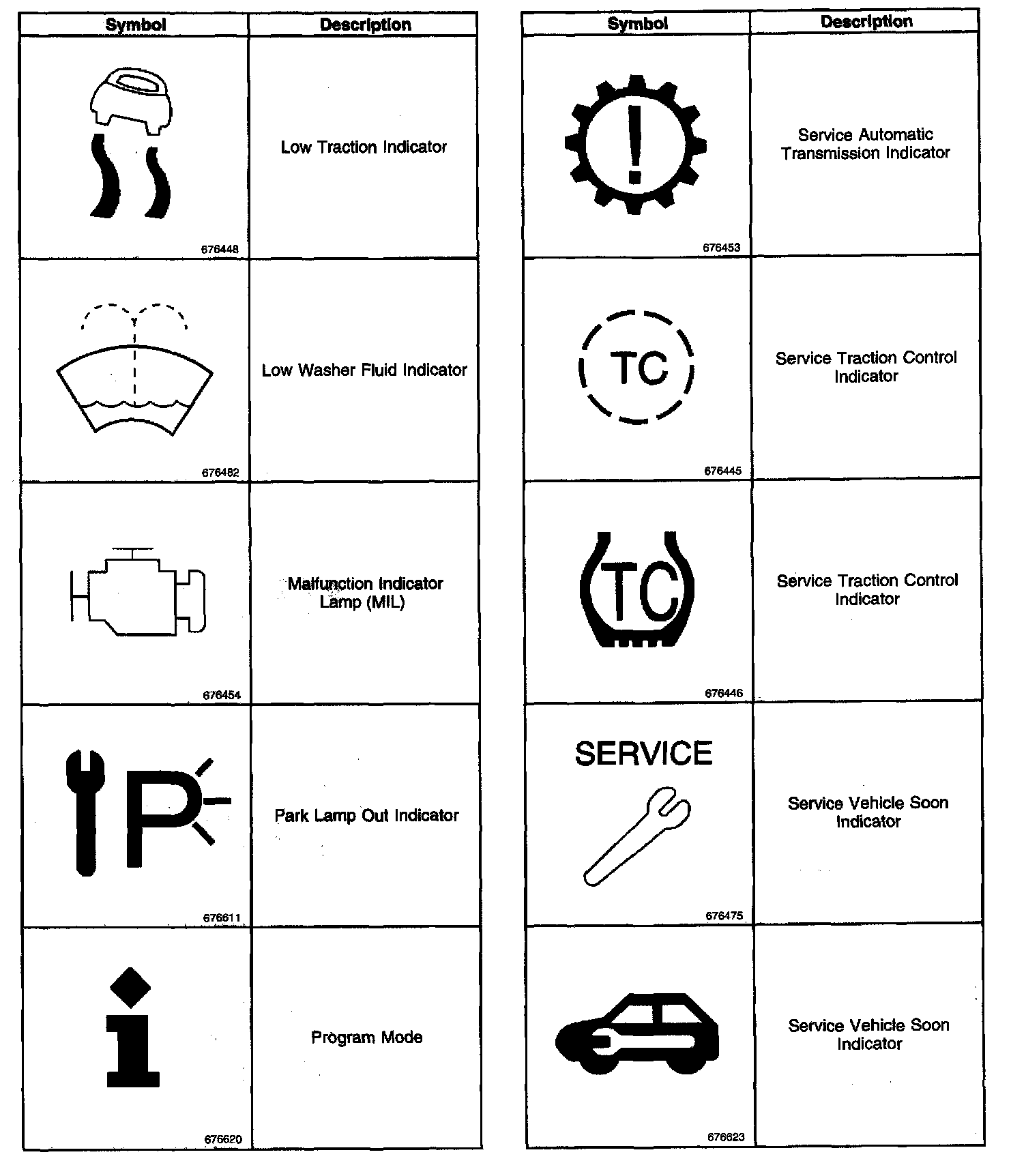

Indicator Symbols (Part 2 Of 5):

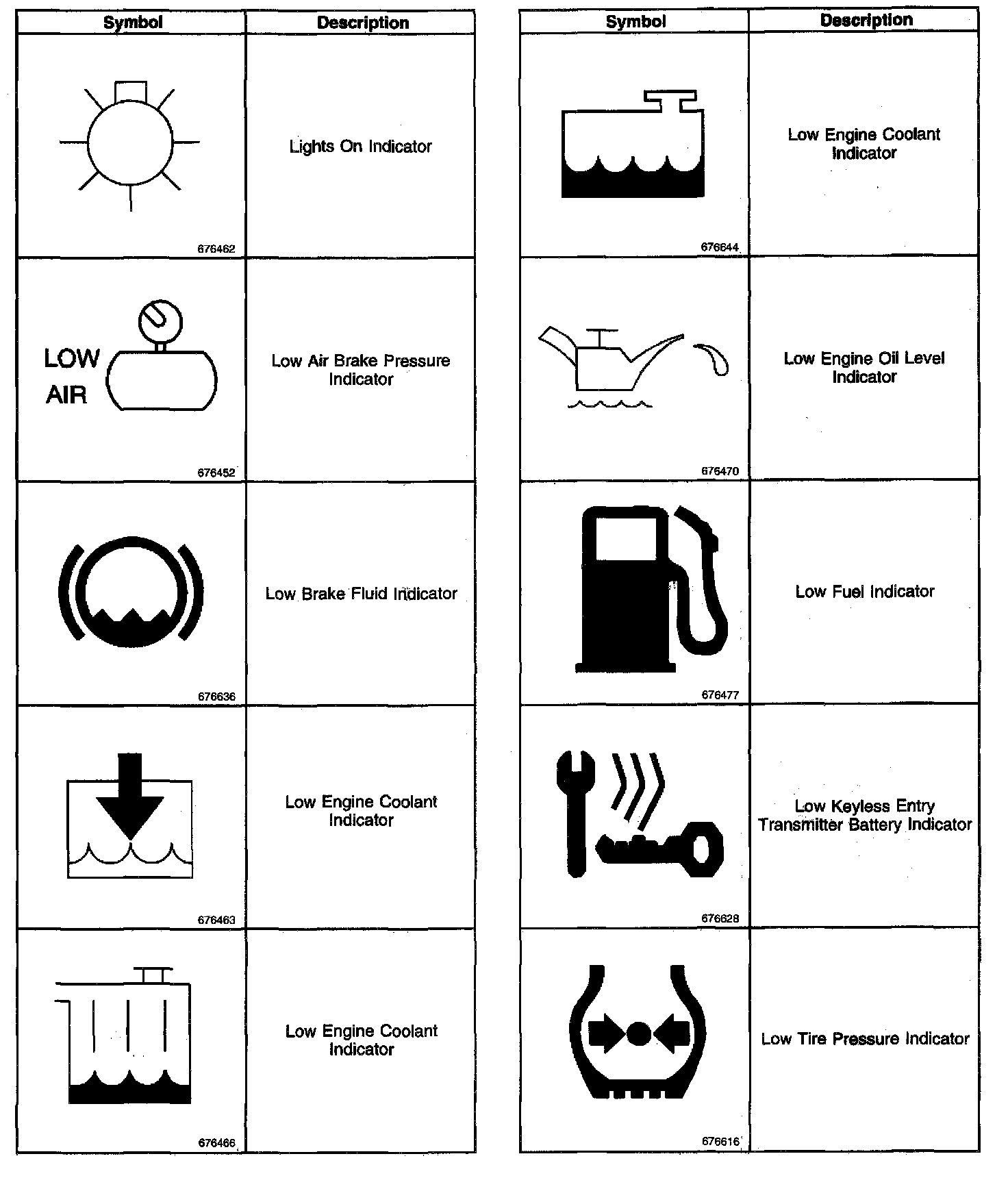

Indicator Symbol (Part 3 Of 5):

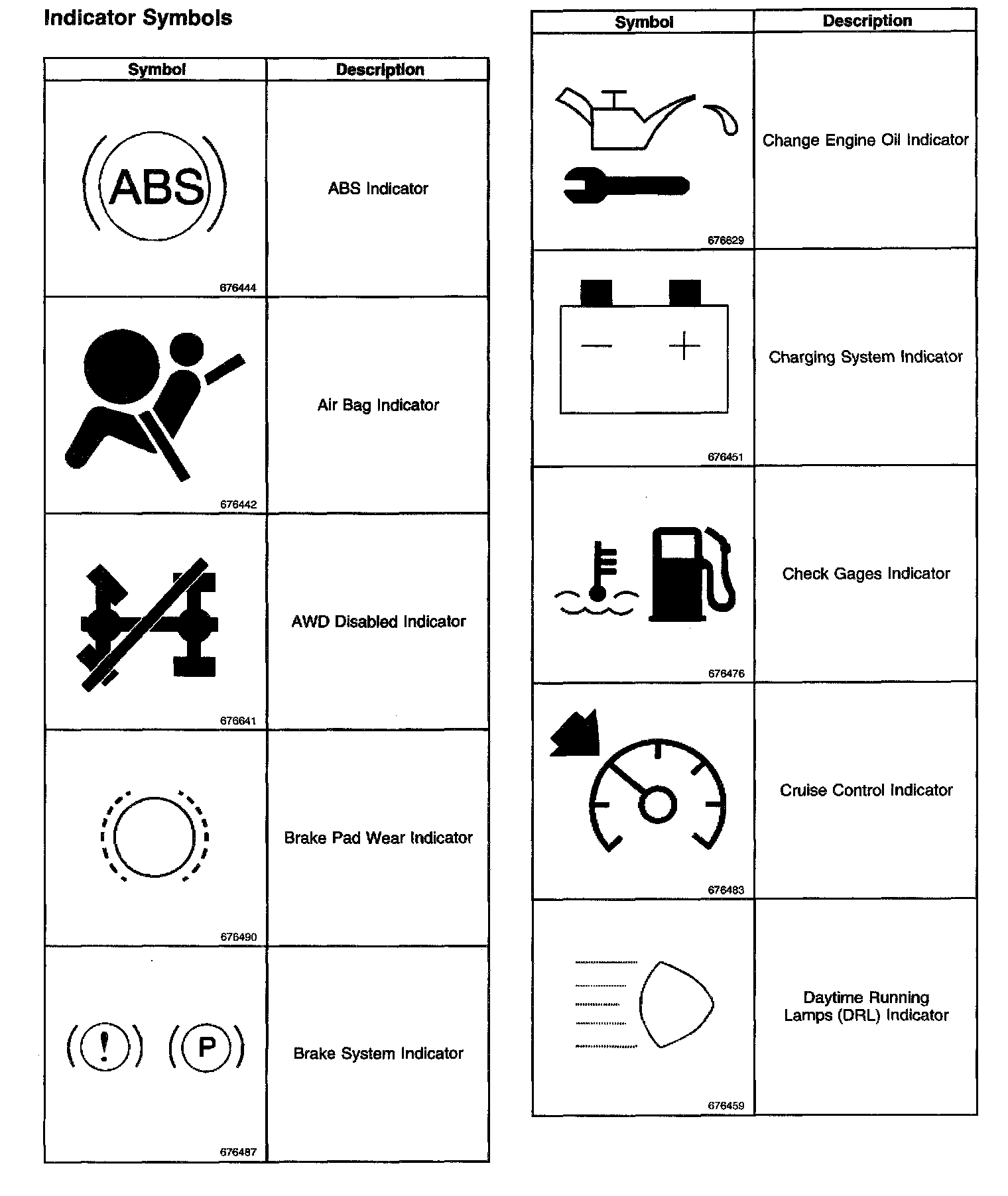

Indicator Symbols (Part 4 Of 5):

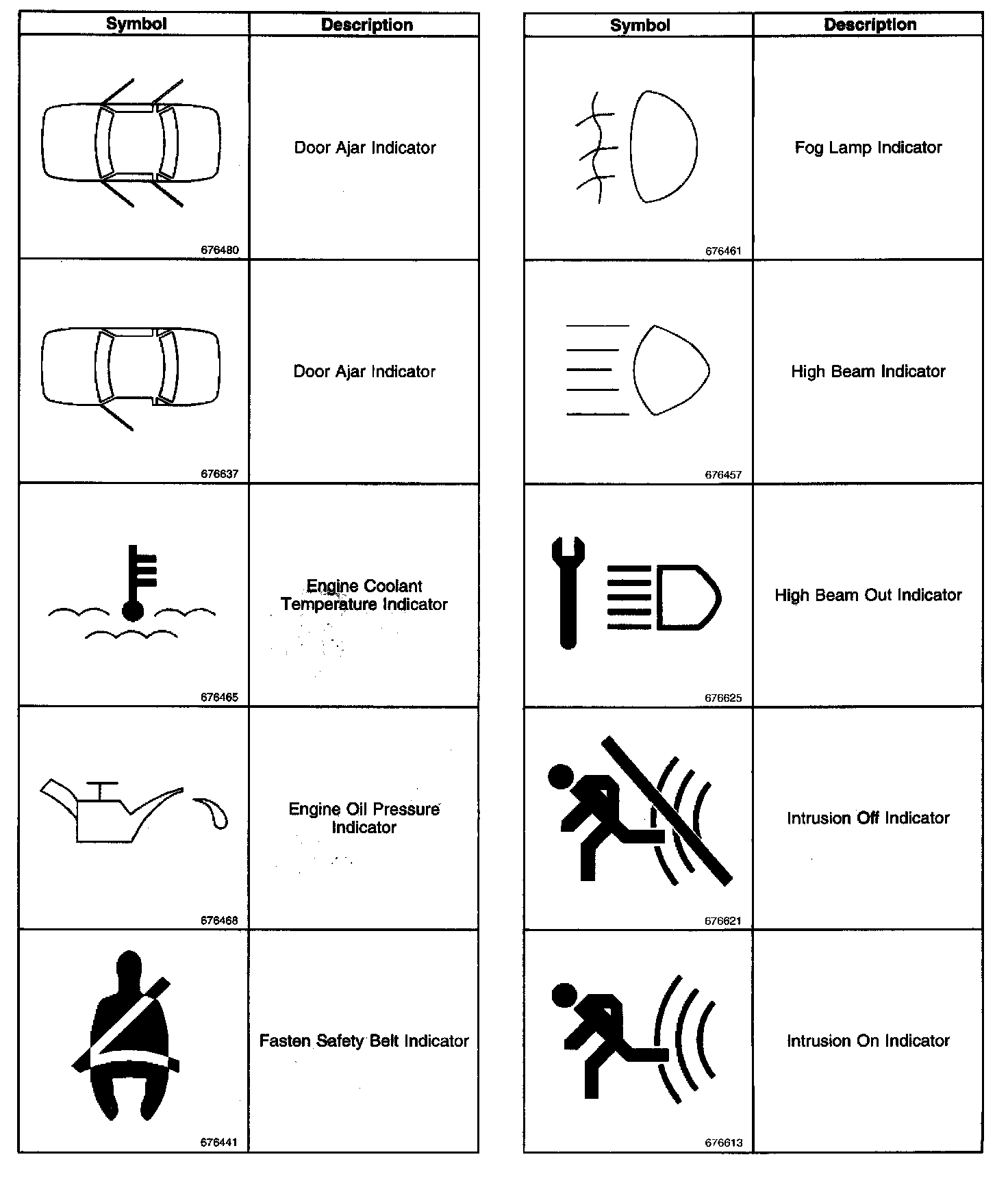

Indicator Symbols (Part 5 Of 5):
