Too Cold in Vehicle

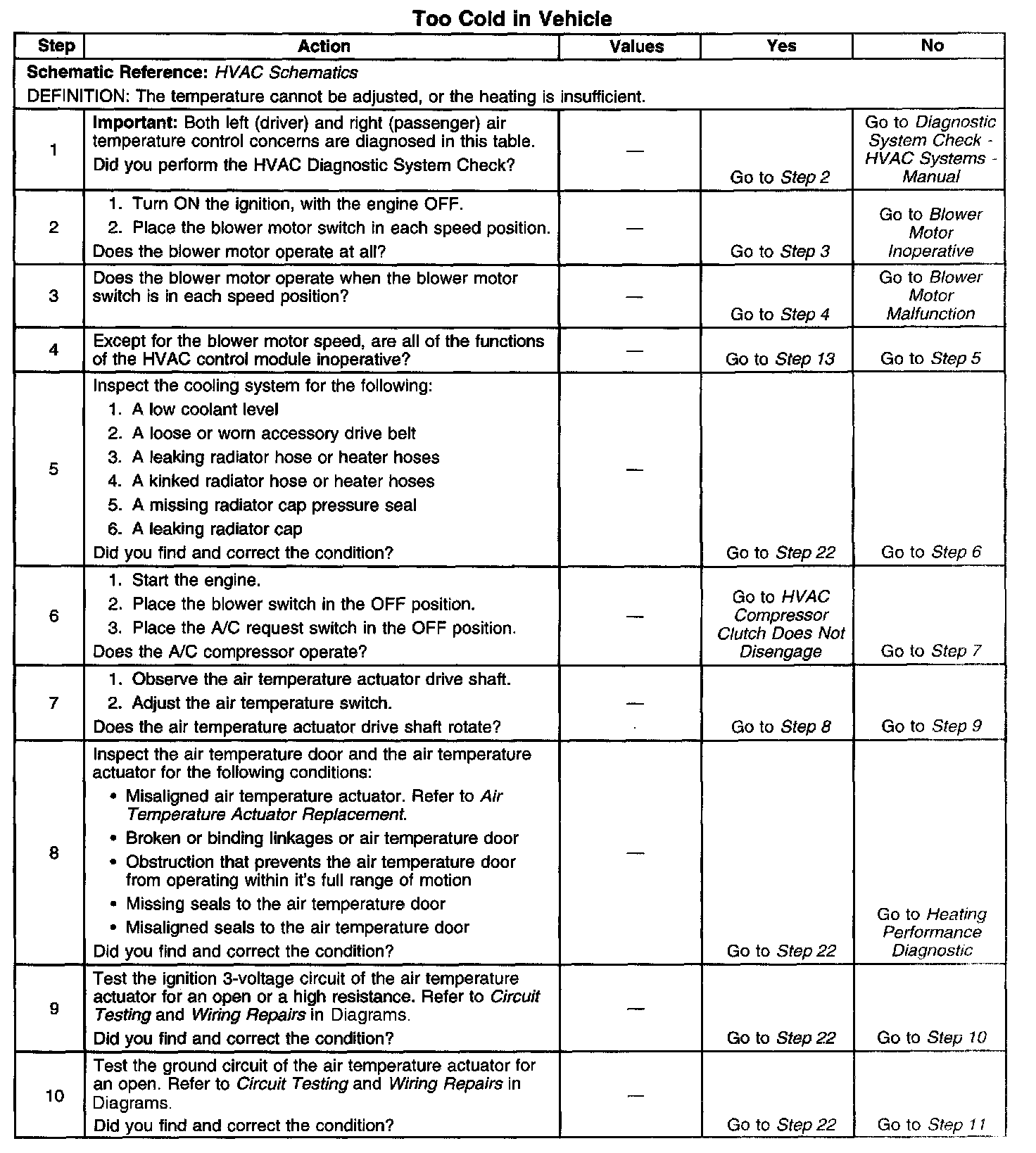

TEST DESCRIPTIONSteps 1-10:

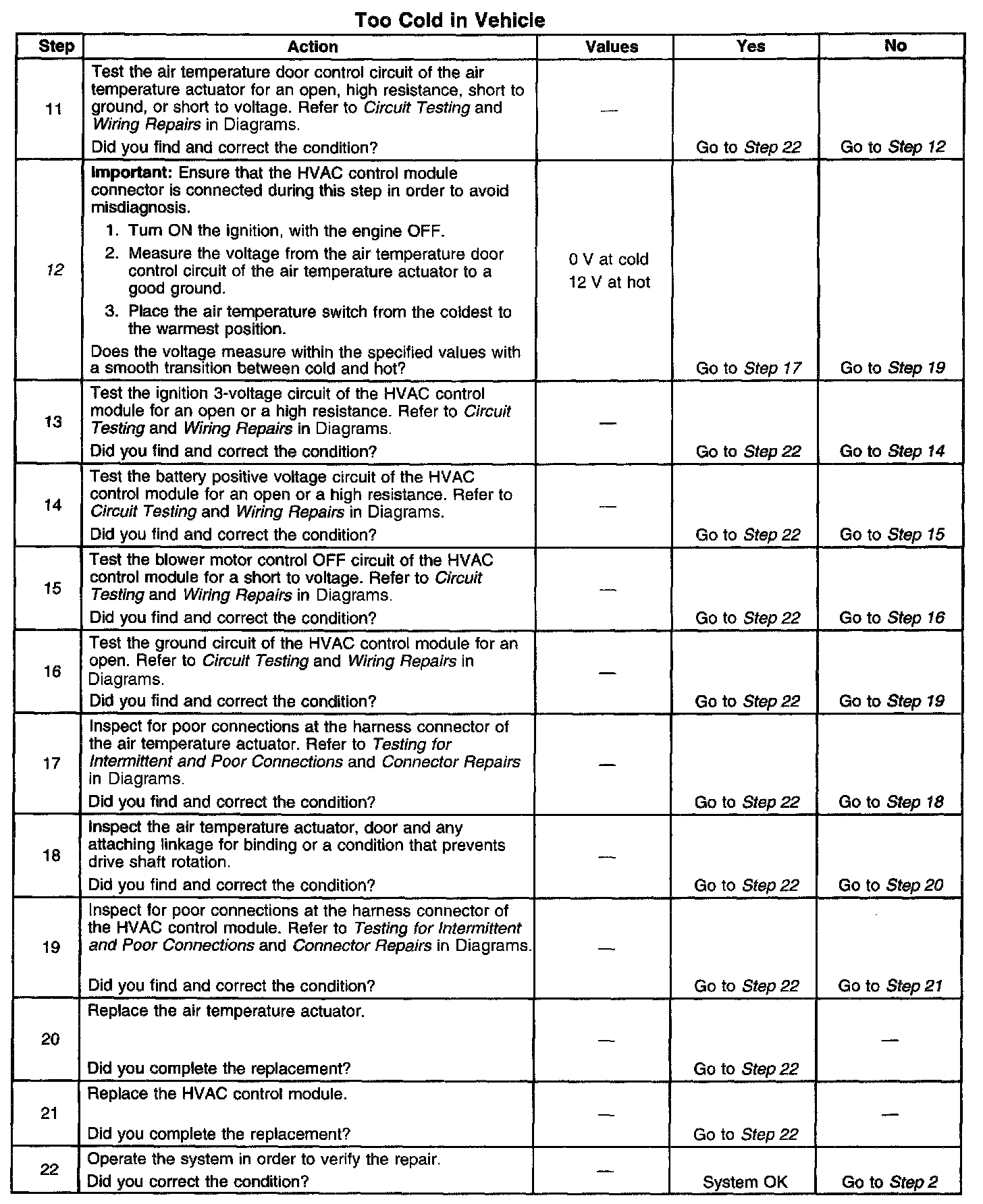

Steps 11-22:
The numbers below refer to the step numbers on the diagnostic table.
12. The voltage will vary between 0 - 12 volts during normal operation. The HVAC control module connector must be connected during this step.
