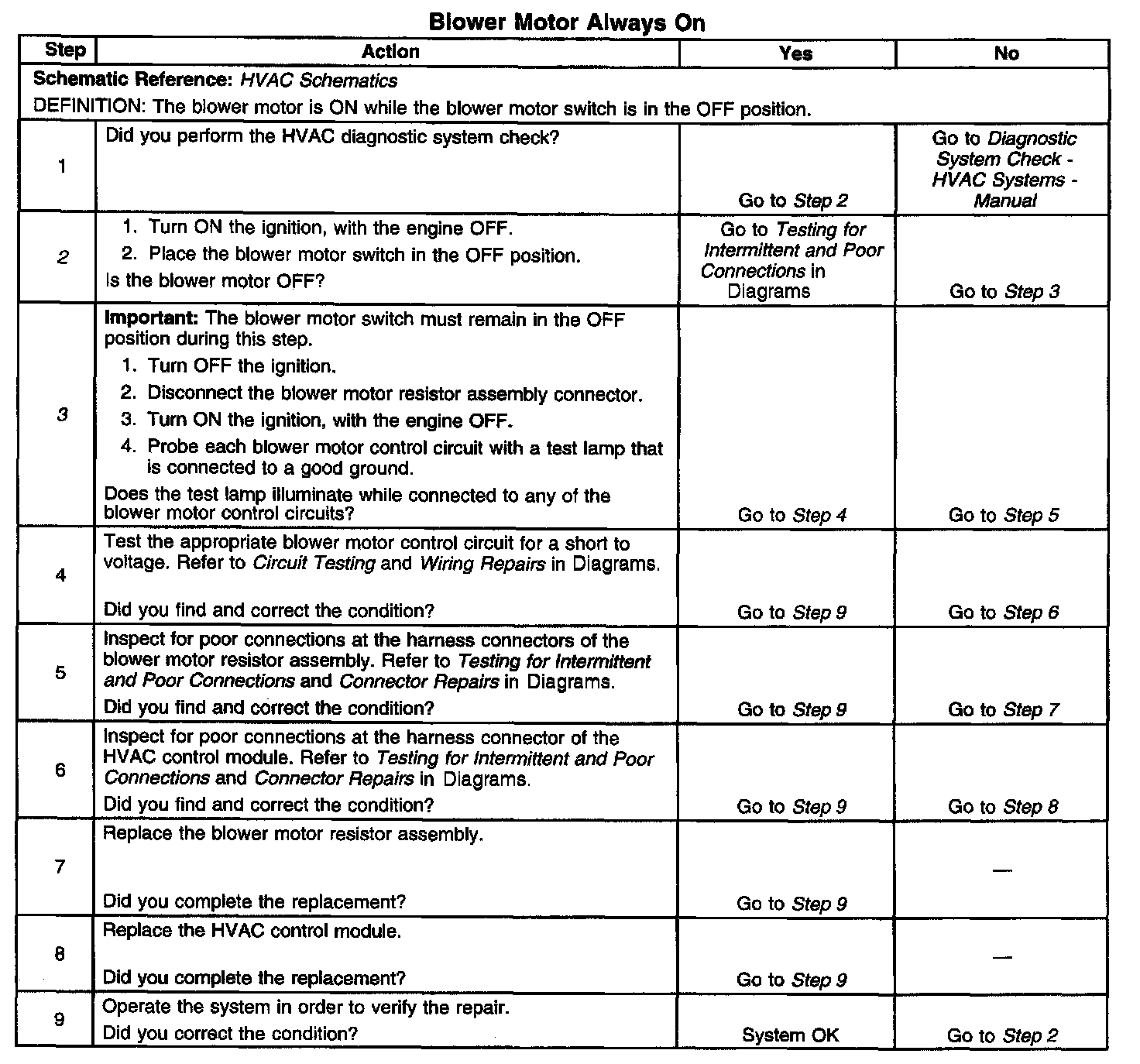

Blower Motor Always On

TEST DESCRIPTION

Steps 1-9:

The number(s) below refer to the step number(s) on the diagnostic table.
2. This step checks for continuous operation of the blower motor.
3. This step tests for a short to voltage in the blower motor control circuits.
