Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> A/C System Pressure Zone Diagnostics >> A/C Diagnostics - Pressure Zone D

A/C Diagnostics - Pressure Zone D

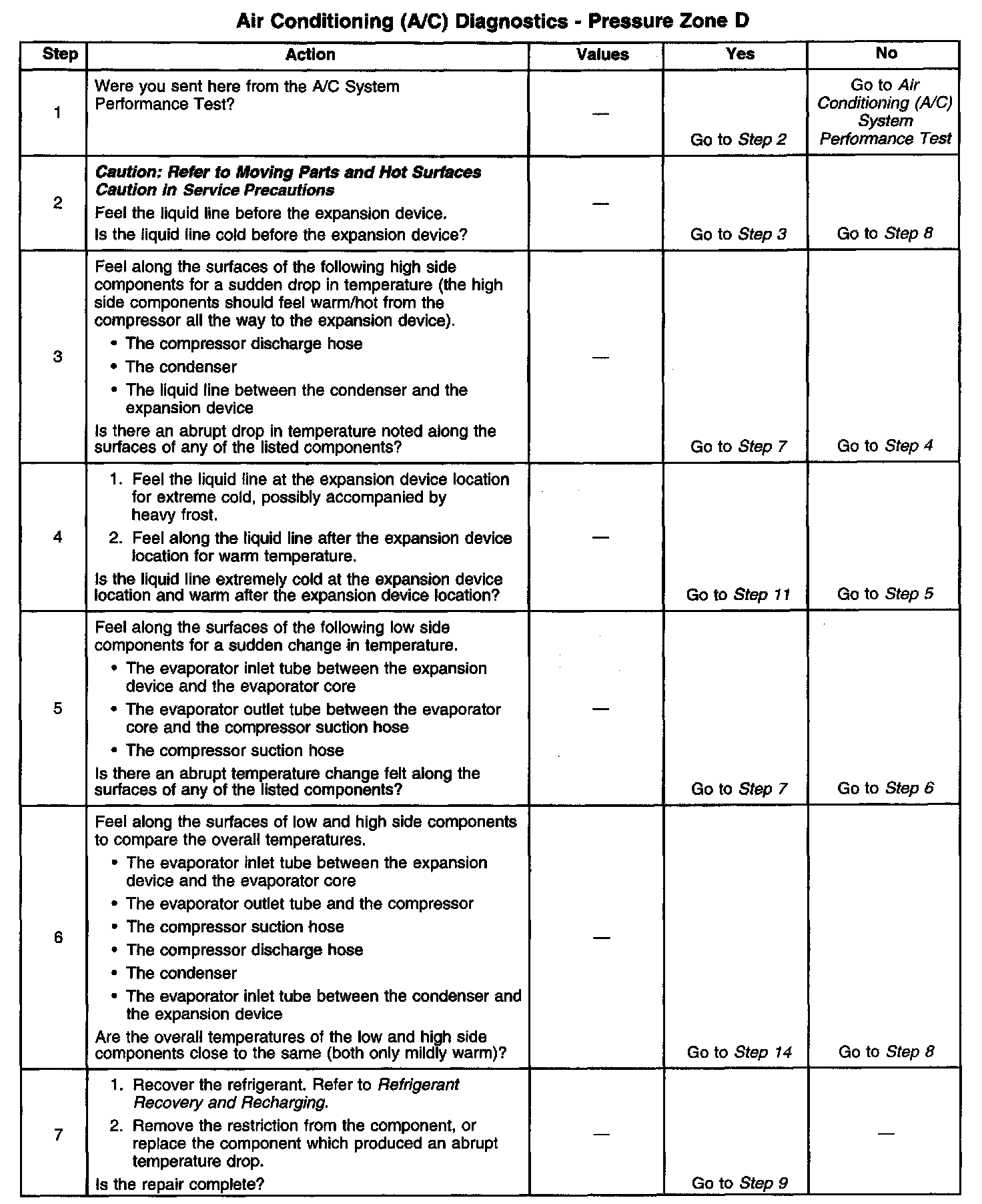

Steps 1-7:

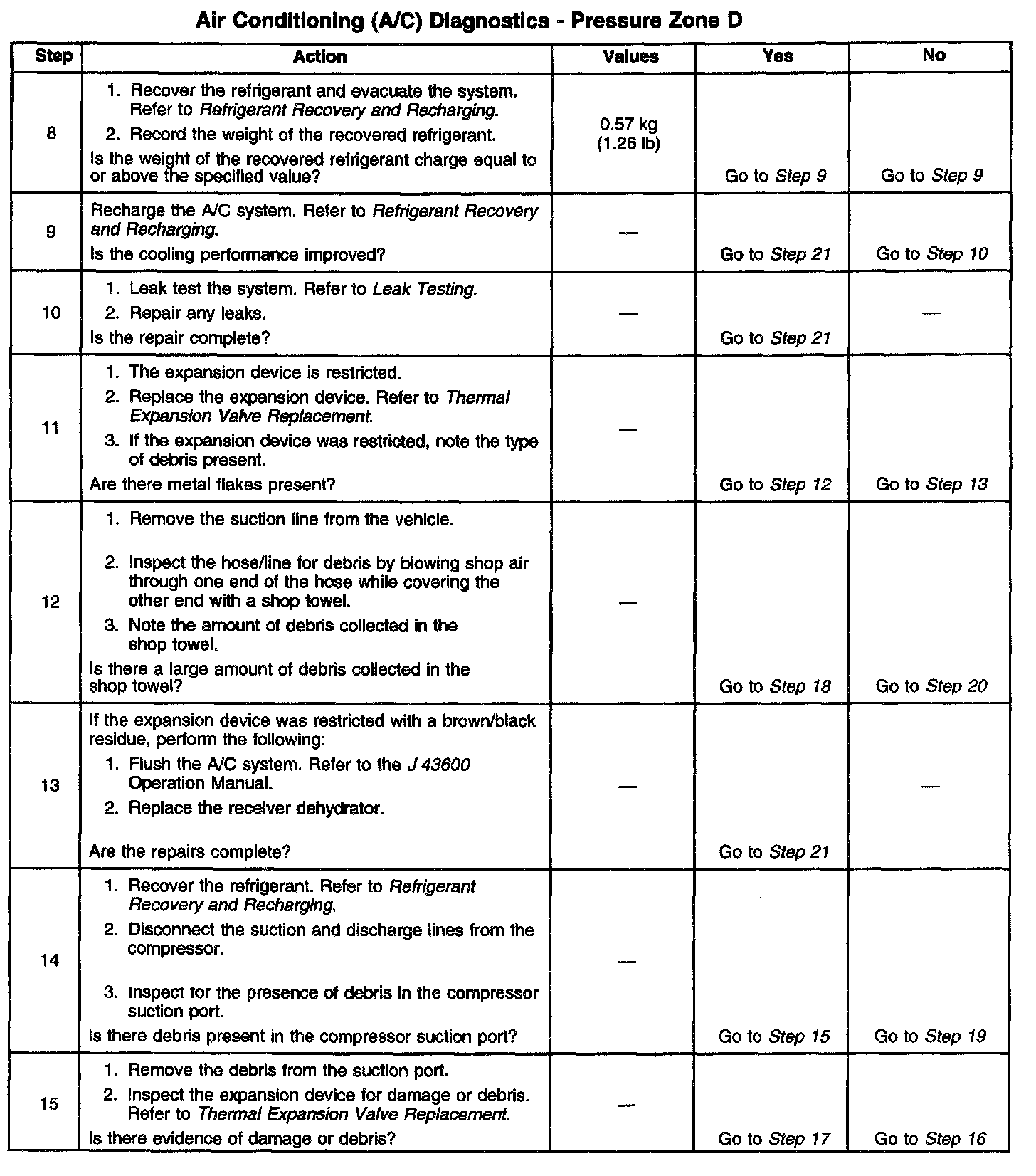

Steps 8-15:

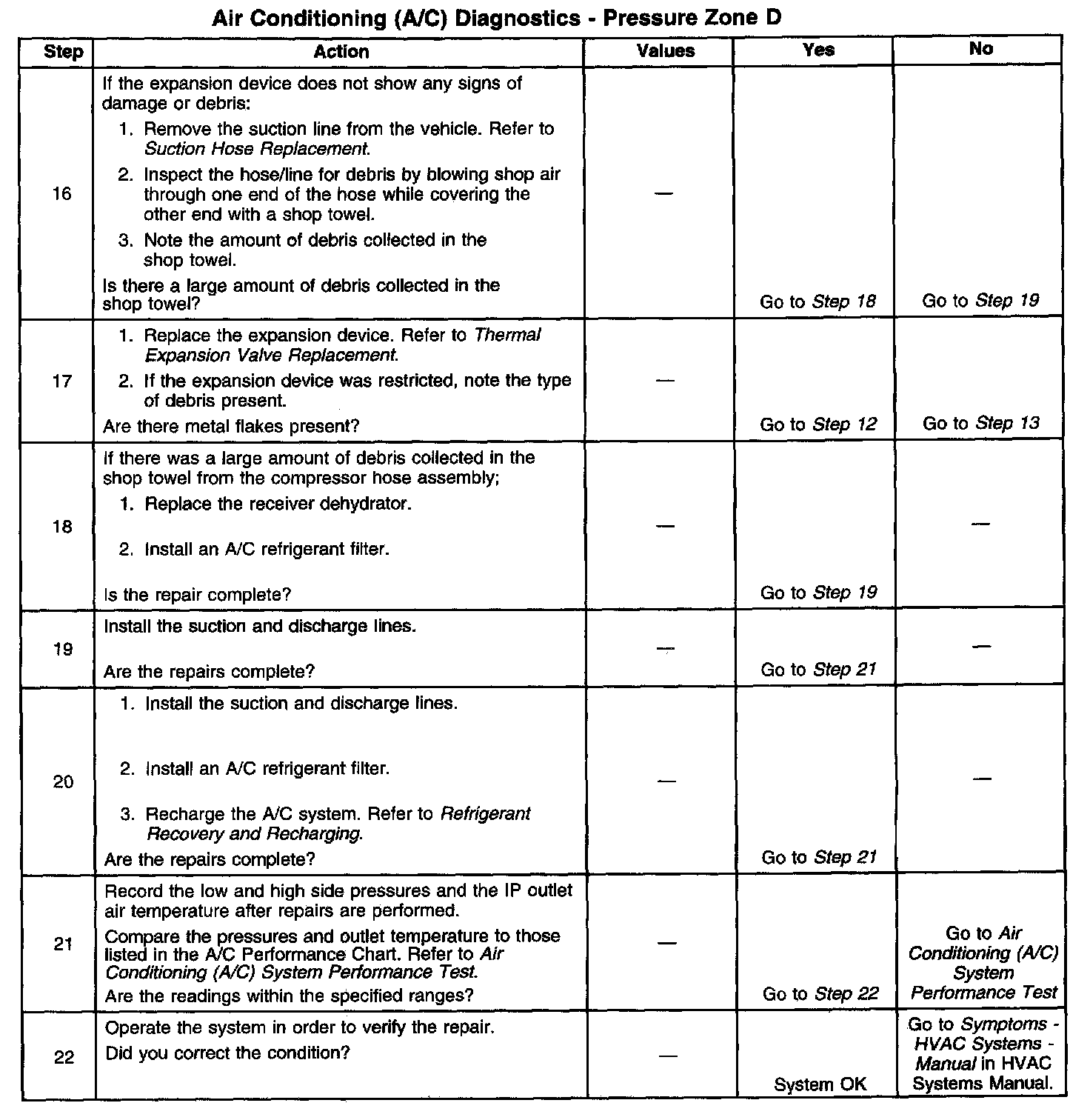

Steps 16-22:
