Air Outlet Replacement - Rear Floor

REMOVAL PROCEDURE




1. Remove the center air outlet.
2. Release the carpet retainers.
3. Lift and reposition the carpet.

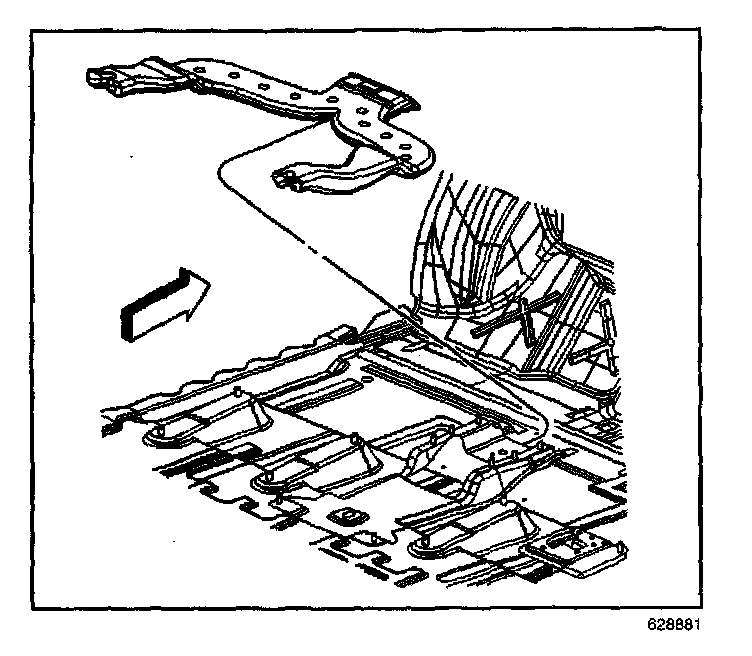

4. Release the rear floor air outlet duct from the floor reinforcement.

INSTALLATION PROCEDURE




1. Install the rear floor duct.
2. Reposition the carpet to the floor.
3. Re-attach the carpet retainers.
4. Install the center air outlet.
